FC600 AC (FAMJ) - Honda 26" Tiller, Made in Japan (SN: FAMJ-1000001 - FAMJ-9999999) BELT COVER Parts Diagram

26" Tiller, Made in Japan

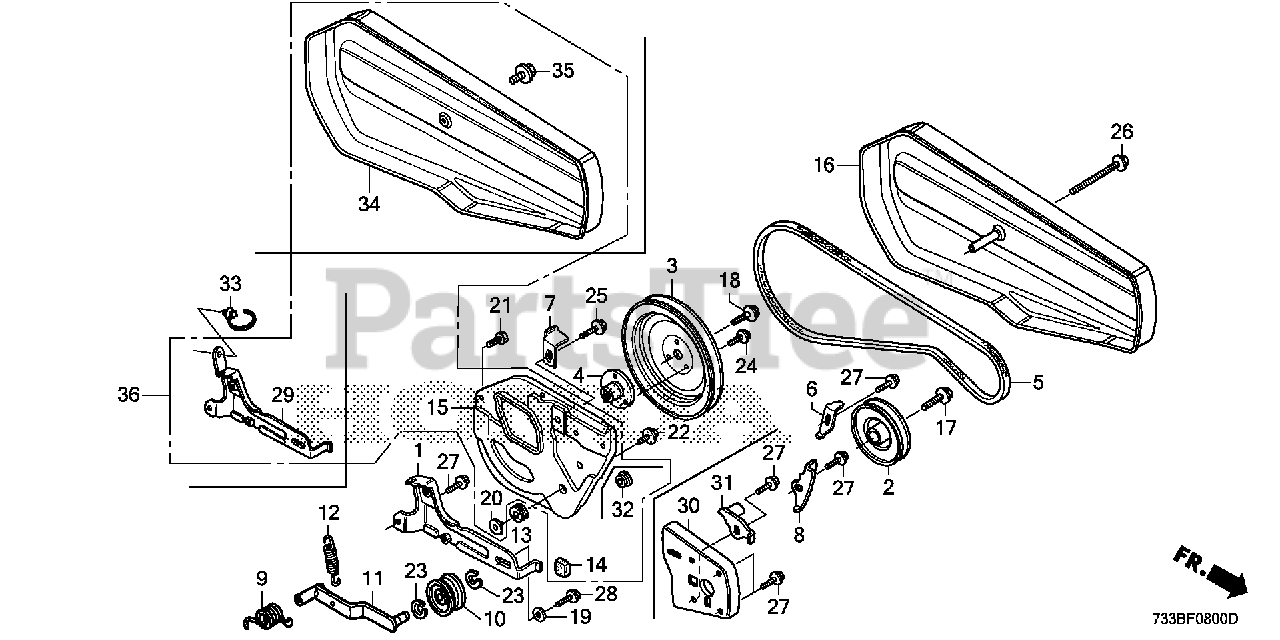

BELT COVER Parts Diagram

  • Title

1

Honda 11801-733-000

STAY, ENGINE

$39.99

$

Usually ships in 3-6 days

0

2

Honda 22411-733-751

PULLEY, DRIVE (80MM)

$47.99

$

Usually ships in 3-6 days

0

3

Honda 22415-733-620

PULLEY, DRIVEN (141MM)

$47.99

$

Usually ships in 3-6 days

0

4

Honda 22426-733-000

BOSS, DRIVEN PULLEY

$12.99

$

Usually ships in 3-6 days

0

5

Honda 22431-733-752

V-BELT (37.5)

$45.99

$

Usually ships in 3-6 days

0

6

Honda 22442-733-000

STOPPER, BELT (UPPER)

$12.99

$

Usually ships in 3-6 days

0

7

Honda 22444-733-000

STOPPER C, BELT

$9.99

$

Usually ships in 3-6 days

0

8

Honda 22445-733-000

STOPPER, BELT (LOWER)

$12.99

$

Usually ships in 3-6 days

0

9

Honda 22512-734-800

SPRING, TENSION ARM RETURN

$5.49

$

Usually ships in 3-6 days

0

10

Honda 22520-730-300

ROLLER (TENSION)

$38.99

$

Usually ships in 3-6 days

0

11

Honda 22520-733-P30

ARM, TENSION

$41.99

$

Usually ships in 3-6 days

0

12

Honda 22531-773-000

SPRING, BELT TENSIONER

$6.99

$

Usually ships in 3-6 days

0

13

Honda 32983-028-000

GROMMET, WIRE HARNESS

$1.99

$

Usually ships in 3-6 days

0

14

Honda 38260-422-000

HOLDER, FUSE STAY (NOT AVAILABLE)

$5.99

$

Usually ships in 3-6 days

0

15

Honda 50650-733-000

STAY, BELT COVER

$44.99

$

Usually ships in 3-6 days

0

16

Honda 63610-733-000ZE

COVER, BELT *R280* (POWER RED)

$75.99

$

Usually ships in 3-6 days

0

17

Honda 90029-733-000

BOLT, FLANGE (8X22)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 90101-733-000

BOLT, FLANGE (8X18)

$4.49

$

In Stock, only 1 left!

0

19

Honda 90428-844-650

WASHER (8MM)

$4.99

$

Usually ships in 3-6 days

0

20

Honda 90563-045-000

WASHER, NUMBER BRACKET MOUNTING

$4.49

$

Usually ships in 3-6 days

0

21

Honda 92101-06008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X8)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 93404-06016-00

SEE PART DETAILS - PRI; BOLT-WASHER (6X16)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 94510-10000

CIRCLIP (OUTER) (10MM)

$1.49

$

In Stock, Qty 8

0

24

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0

25

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

26

Honda 95701-06050-07

BOLT, FLANGE (6X50)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

28

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, only 1 left!

0
