FC600 A (FAMJ) - Honda 26" Tiller, Made in Japan (SN: FAMJ-1000001 - FAMJ-9999999) MUFFLER Parts Diagram

26" Tiller, Made in Japan

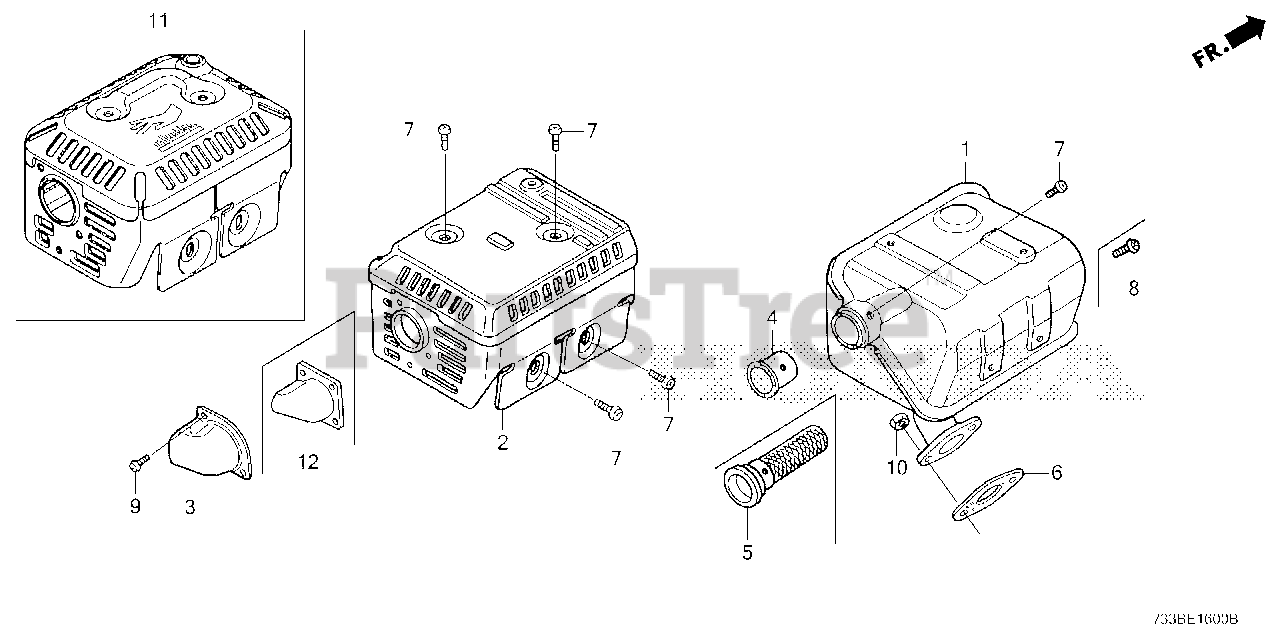

MUFFLER Parts Diagram

  • Title
1

Honda 18310-ZF1-000

MUFFLER (STD)

$97.99

$

In Stock, only 1 left!

0

1

Honda 18310-ZH8-810

MUFFLER (ARRESTER)

Note: (Optional).

$112.99

$

In Stock, only 1 left!

0

2

Honda 18320-ZF1-H01

PROTECTOR, MUFFLER (STD) (BLACK)
(Superseded to 18320-ZF1-H02)

Note: Use up to Engine SN 1626121.

$40.99

$

In Stock, only 2 left!

0

2

Honda 18320-ZF1-H02

PROTECTOR, MUFFLER (STD) (BLACK)

Note: Use from Engine SN 1626122.

$40.99

$

In Stock, only 2 left!

0

3

Honda 18341-ZE1-A50

DEFLECTOR, MUFFLER

$15.99

$

Usually ships in 3-6 days

0

4

Honda 18344-733-000

PIPE, TAIL

$7.49

$

Usually ships in 3-6 days

0

5

Honda 18355-ZE1-000

ARRESTER, SPARK

Note: (Optional).

$15.99

$

In Stock, only 3 left!

0

6

Honda 18381-ZH8-801

SEE PART DETAILS - PRI; GASKET, MUFFLER

$4.49

$

In Stock, Qty 12

0

7

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$2.49

$

In Stock, Qty 20+

0

8

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Optional).

$1.49

$

In Stock, Qty 11

0

9

Honda 90056-ZL0-000

SCREW, TAPPING (4X6)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0
