FC600 A (FAMJ) - Honda 26" Tiller, Made in Japan (SN: FAMJ-1000001 - FAMJ-9999999) CARBURETOR (1) Parts Diagram

26" Tiller, Made in Japan

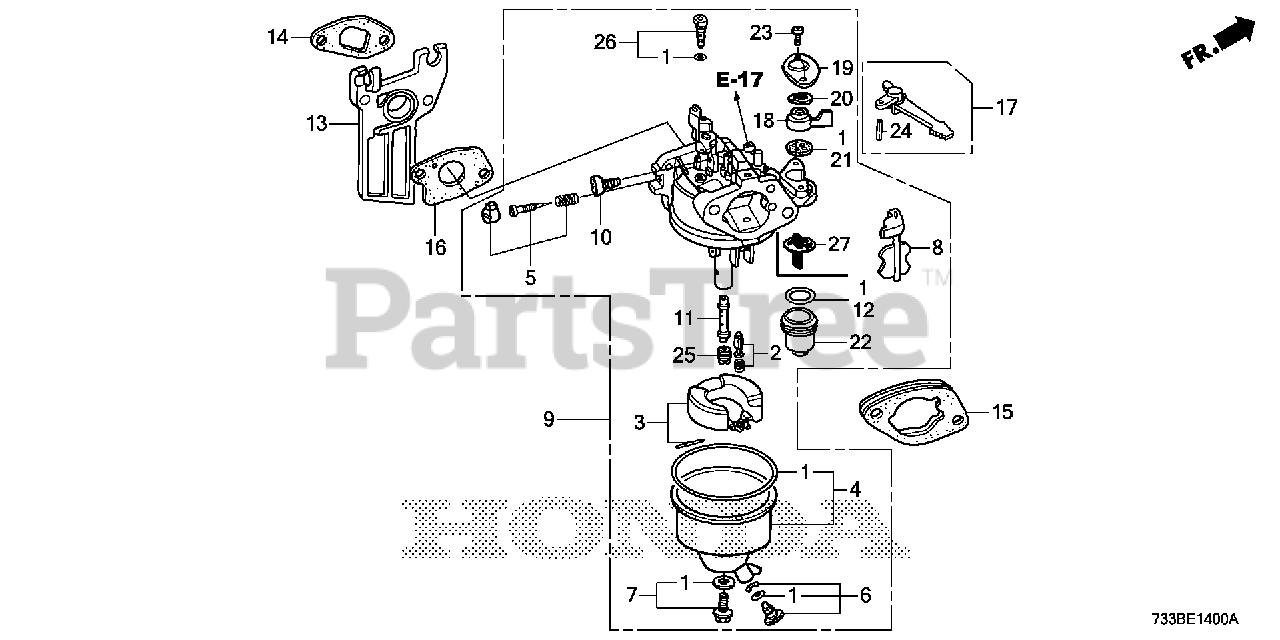

CARBURETOR (1) Parts Diagram

  • Title
1

Honda 16010-ZH7-A20

GASKET SET

$17.99

$

Usually ships in 3-6 days

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$28.99

$

In Stock, only 1 left!

0

3

$29.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZK7-S91

CHAMBER SET, FLOAT

$30.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$20.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZH7-A20

SCREW SET, DRAIN

$11.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

$37.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZH8-A51

CARBURETOR ASSY. (BE65F B)

$107.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZH8-800

NOZZLE, MAIN

$24.99

$

Usually ships in 3-6 days

0

12

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, Qty 10

0

13

Honda 16211-ZE1-000

INSULATOR, CARBURETOR

$23.99

$

In Stock, only 1 left!

0

14

Honda 16212-ZH8-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 12

0

15

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$7.99

$

In Stock, Qty 13

0

16

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

17

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$10.99

$

In Stock, only 4 left!

0

18

Honda 16953-ZE1-812

LEVER, PETCOCK

$10.99

$

In Stock, only 1 left!

0

19

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

20

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$3.99

$

Usually ships in 3-6 days

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 7

0

22

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$22.99

$

In Stock, only 1 left!

0

23

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, Qty 9

0

24

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, Qty 5

0

25

Honda 99101-ZK7-0650

JET, MAIN (#65)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

25

Honda 99101-ZK7-0680

JET, MAIN (#68)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

25

Honda 99101-ZK7-0700

JET, MAIN (#70)

$9.99

$

In Stock, Qty 9

0

26

Honda 99204-ZE2-0380

JET SET, PILOT (#38)

$22.99

$

Usually ships in 3-6 days

0
