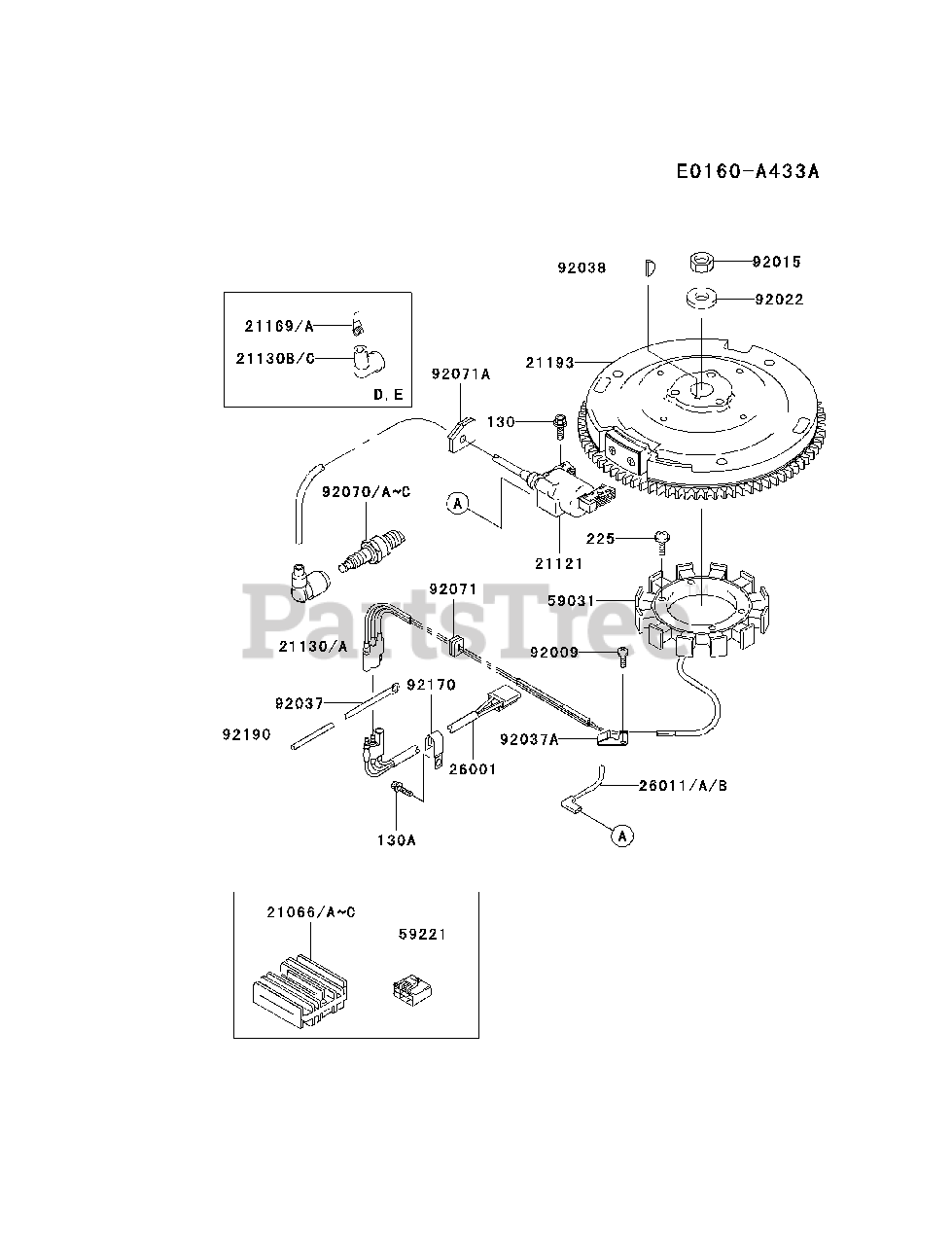

FC540V-FS13 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066B

Kawasaki 21066-2070

REGULATOR-VOLTAGE

$131.99

$

In Stock, only 3 left!

0

21121

Kawasaki 21121-2085

COIL-IGNITION

$120.99

$

In Stock, only 1 left!

0

21130

Kawasaki 21130-2060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, Qty 8

0

21193

Kawasaki 21193-2153

FLYWHEEL-ASSY

$256.99

$

Usually ships in 2-5 days

0

26001

Kawasaki 26001-2150

HARNESS

$

$

Not available

26011A

Kawasaki 26011-2329

WIRE-LEAD,L=180
(Superseded to 26011-2312)

$3.99

$

Usually ships in 2-5 days

0

59031

Kawasaki 59031-2063

COIL-CHARGING

$123.99

$

Usually ships in 2-5 days

0

59221

Kawasaki 59221-2099

CONNECTOR-CORD

$1.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 10

0

92015

Kawasaki 92015-2152

NUT

$

$

Not available

92022

Kawasaki 92022-2207

WASHER,20.2X40X3.2

$

$

Not available

92037

Kawasaki 92037-2063

CLAMP

$0.99

$

Usually ships in 2-5 days

0

92037A

Kawasaki 92037-2177

CLAMP

$

$

Not available

92038

Kawasaki 92038-2094

KEY

$2.49

$

In Stock, only 2 left!

0

92070B

Kawasaki 92070-2088

PLUG-SPARK,BPR5ES
(Superseded to BPR5ES)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92071

Kawasaki 92071-2099

GROMMET

$

$

Not available

92071A

Kawasaki 92071-2112

GROMMET

$6.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2081

CLAMP
(Superseded to 92171-7008)

$1.99

$

In Stock, Qty 5

0

92190

Kawasaki 92190-2167

TUBE

$1.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0520

BOLT-FLANGED
(Superseded to 130AA0520)

$0.99

$

In Stock, Qty 12

0

130A

Kawasaki 130B0610

BOLT-FLANGED
(Superseded to 130AA0610)

$0.99

$

In Stock, Qty 20+

0

225

Kawasaki 225B0625

SCREW-PAN-WSP-CROS

$

$

Not available
