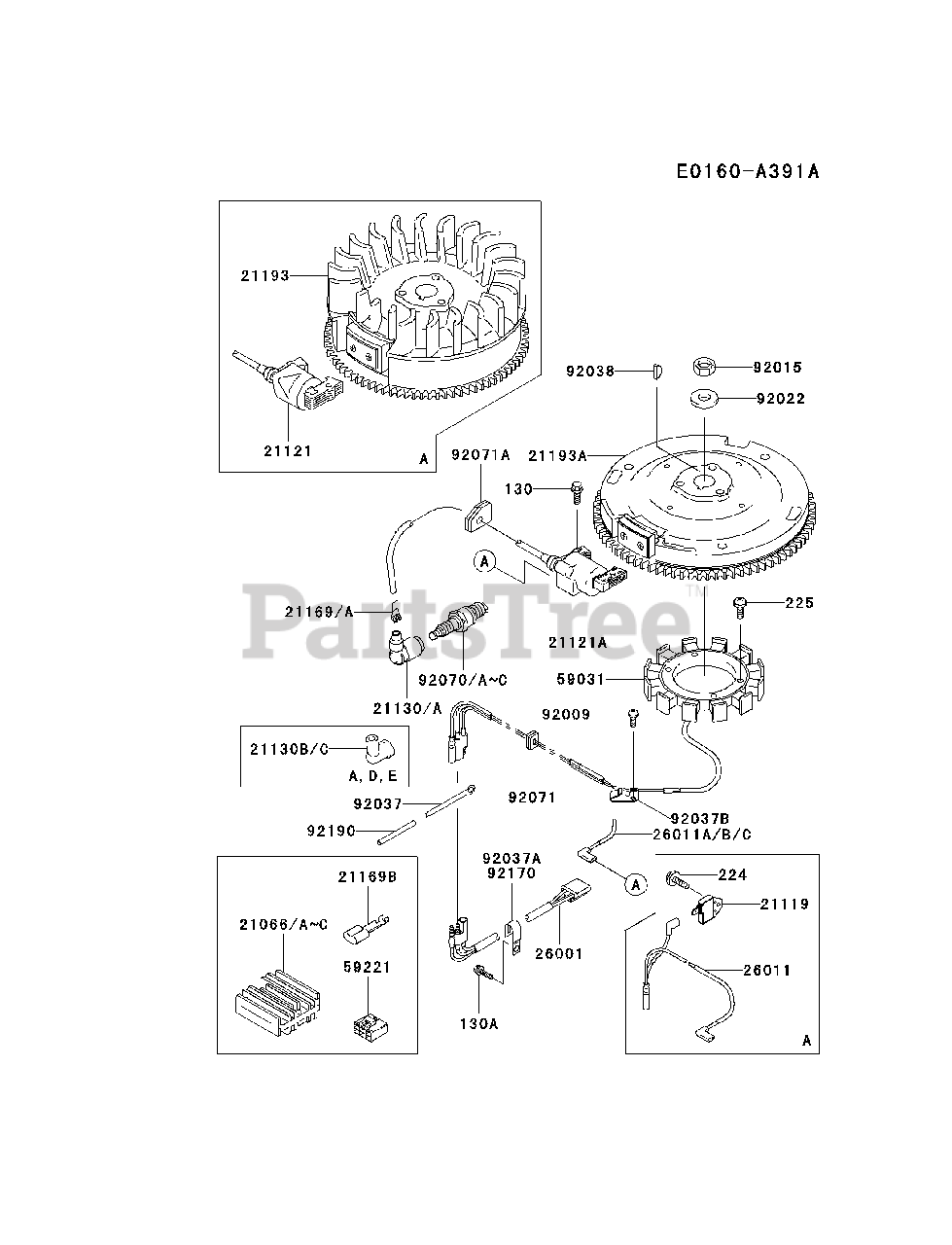

FC540V-AS16 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
21066

Kawasaki 21066-2056

REGULATOR-VOLTAGE

$120.99

$

Usually ships in 2-5 days

0

21119

Kawasaki 21119-2101

IGNITER
(Superseded to 21119-2161)

$

$

Not available

21121

Kawasaki 21121-2069

COIL-IGNITION

$77.99

$

In Stock, only 4 left!

0

21130B

Kawasaki 21130-2066

CAP-SPARK PLUG
(Superseded to 21130-2001)

$2.49

$

In Stock, only 2 left!

0

21169

Kawasaki 21169-2004

TERMINAL
(Superseded to 21169-2057)

$

$

Not available

21169B

$1.49

$

Usually ships in 2-5 days

0

21193

Kawasaki 21193-2057

FLYWHEEL-ASSY

$

$

Not available

26001

$

$

Not available

26011

$

$

Not available

59031

Kawasaki 59031-2063

COIL-CHARGING

$123.99

$

Usually ships in 2-5 days

0

59221

Kawasaki 59221-2099

CONNECTOR-CORD

$1.99

$

In Stock, only 1 left!

0

92009

$0.99

$

In Stock, Qty 6

0

$

$

Not available

92022

Kawasaki 92022-2207

WASHER,20.2X40X3.2

$

$

Not available

92037

$0.99

$

Usually ships in 2-5 days

0

92037A

$2.99

$

In Stock, only 4 left!

0

92037B

$

$

Not available

$2.49

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2075

PLUG-SPARK,RN11YC
(Superseded to BPR5ES)

Note: CHAMPION

$3.49

$

In Stock, Qty 20+

0

92071

$

$

Not available

92071A

$6.99

$

Usually ships in 2-5 days

0

92190

$1.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0520

BOLT-FLANGED
(Superseded to 130AA0520)

$0.99

$

In Stock, Qty 12

0

130A

Kawasaki 130B0610

BOLT-FLANGED
(Superseded to 130AA0610)

$0.99

$

In Stock, Qty 20+

0

224

Kawasaki 224B0408

SCREW-PAN-WP-CROS
(Superseded to 224AA0408)

$0.99

$

In Stock, Qty 8

0

225

Kawasaki 225B0625

SCREW-PAN-WSP-CROS

$

$

Not available
