FC420V-BS13 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

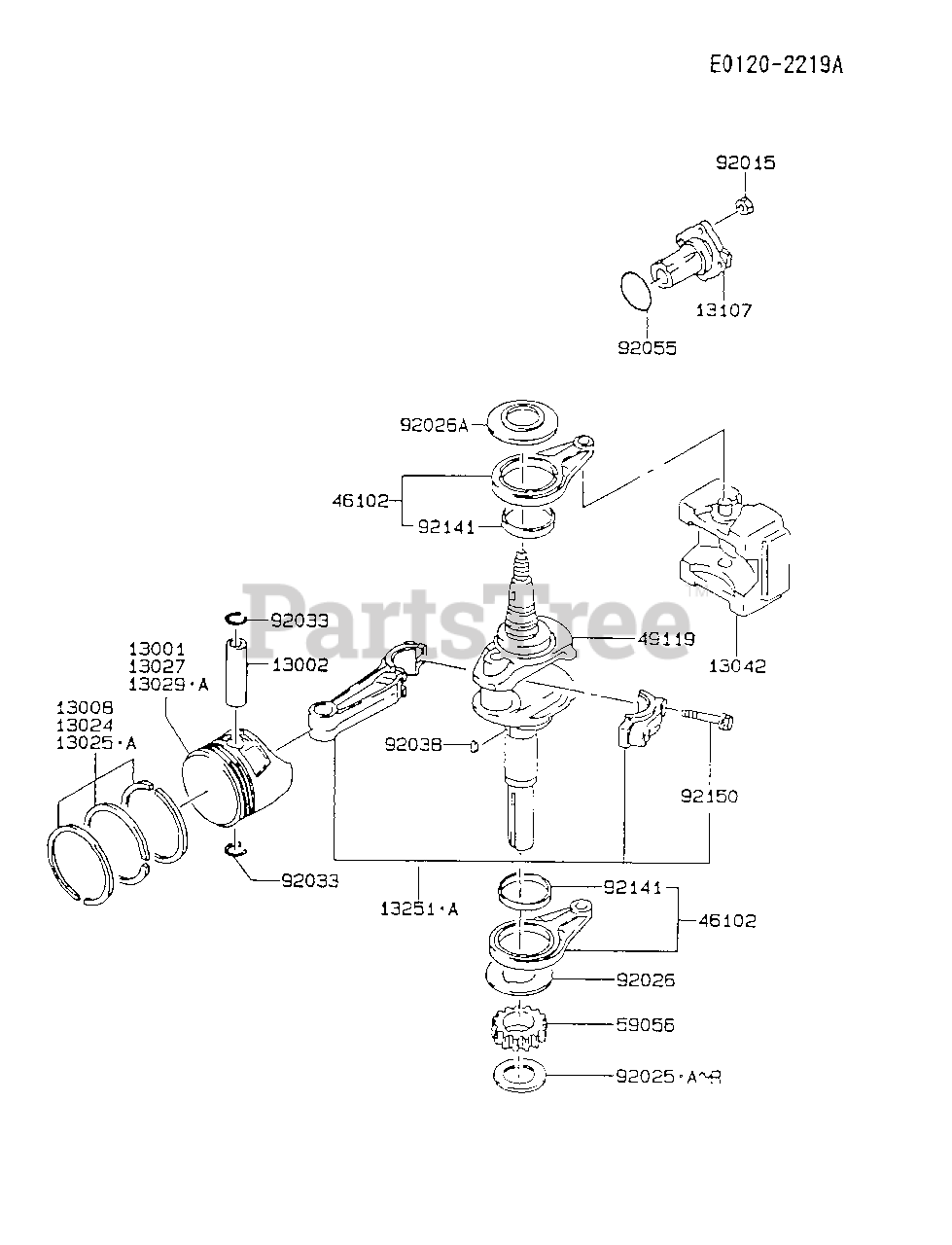

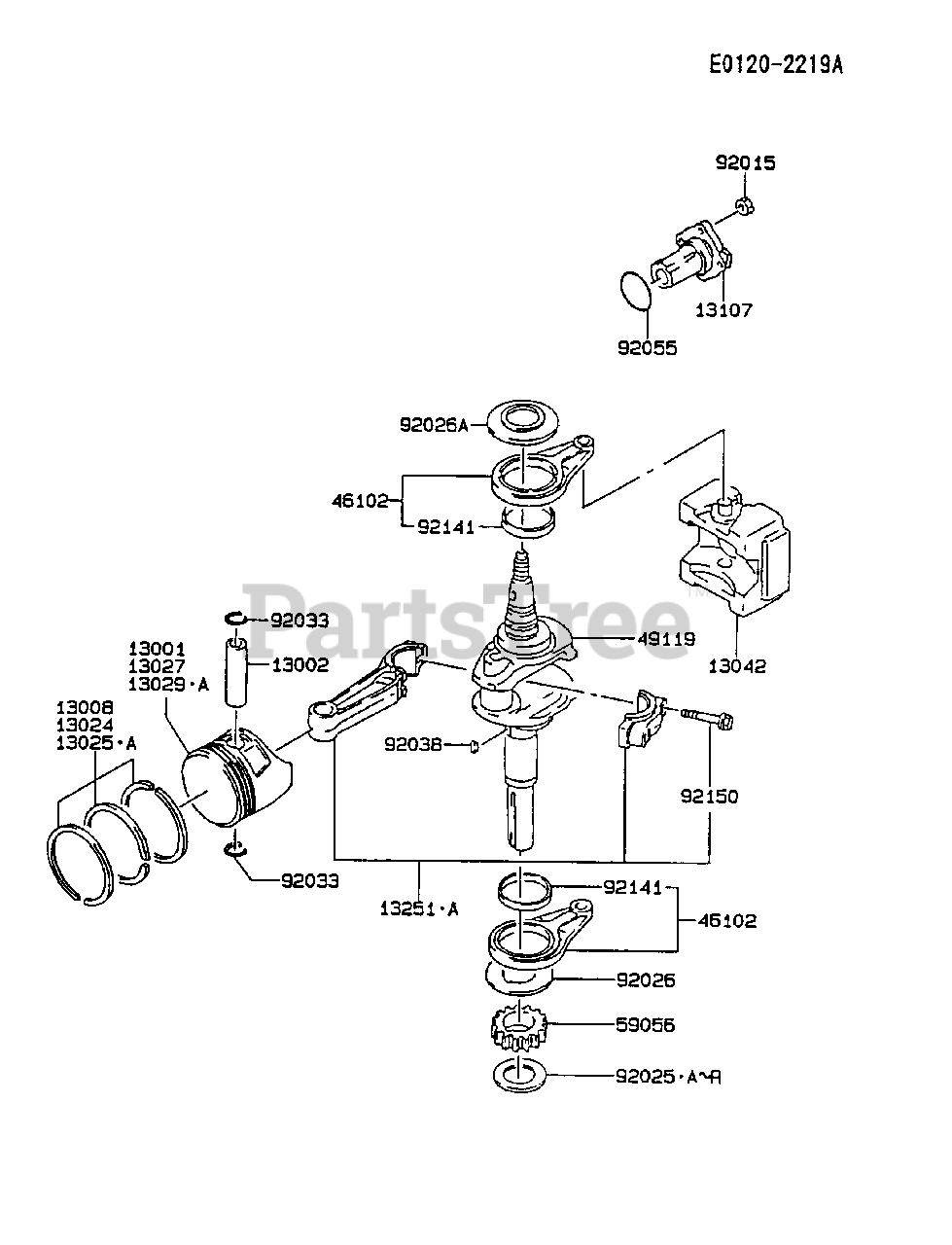

PISTON/CRANKSHAFT Parts Diagram

  • Title

13001

Kawasaki 13001-2092

PISTON-ENGINE

$

$

Not available

13002

Kawasaki 13002-2070

PIN-PISTON

$18.99

$

Usually ships in 2-5 days

0

13008

Kawasaki 13008-6001

RING-SET-PISTON

$60.99

$

Usually ships in 2-5 days

0

13024

Kawasaki 13008-6004

RING-SET-PISTON LL,0.75

$

$

Not available

13025

Kawasaki 13008-6002

RING-SET-PISTON L,0.25

$

$

Not available

13025A

Kawasaki 13008-6003

RING-SET-PISTON L,0.50

$

$

Not available

13027

Kawasaki 13027-2054

PISTON-ENGINE LL,0.75

$

$

Not available

13029

Kawasaki 13029-2078

PISTON-ENGINE L,0.25

$

$

Not available

13029A

Kawasaki 13029-2079

PISTON-ENGINE L,0.50

$

$

Not available

13042

Kawasaki 13042-6008

WEIGHT
(Superseded to 13042-2078)

$134.89

$

In Stock, only 1 left!

0

13107

Kawasaki 13107-2232

SHAFT
(Superseded to 13107-2091)

$

$

Not available

13251

Kawasaki 13251-6019

ROD-ASSY-CONNECTING
(Superseded to 13251-2063)

$87.99

$

In Stock, only 1 left!

0

13251A

Kawasaki 13251-6020

ROD-ASSY-CONNECTING,U/S=0.50
(Superseded to 13251-2064)

$86.99

$

In Stock, only 1 left!

0

46102

Kawasaki 46102-6007

ROD
(Superseded to 46102-6001)

$

$

Not available

49119

Kawasaki 49119-2134

CRANKSHAFT-ASSY

$

$

Not available

59056

Kawasaki 59056-2101

GEAR-HELICAL

$

$

Not available

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, only 2 left!

0

92025

Kawasaki 92025-2210

SHIM,T=1.18

$

$

Not available

92025A

Kawasaki 92025-2211

SHIM,T=1.215

$

$

Not available

92025B

Kawasaki 92025-2212

SHIM,T=1.25

$

$

Not available

92025C

Kawasaki 92025-2213

SHIM,T=1.285

$

$

Not available

92025D

Kawasaki 92025-2214

SHIM,T=1.32

$

$

Not available

92025E

Kawasaki 92025-2215

SHIM,T=1.355

$4.49

$

Usually ships in 2-5 days

0

92025F

Kawasaki 92025-2216

SHIM,T=1.39

$4.49

$

Usually ships in 2-5 days

0

92025G

Kawasaki 92025-2217

SHIM,T=1.425

$4.49

$

Usually ships in 2-5 days

0

92025H

Kawasaki 92025-2218

SHIM,T=1.46

$4.49

$

Usually ships in 2-5 days

0

92025I

Kawasaki 92025-2219

SHIM,T=1.495

$

$

Not available

92025J

Kawasaki 92025-2220

SHIM,T=1.53

$

$

Not available

92025K

Kawasaki 92025-2221

SHIM,T=1.565

$4.49

$

Usually ships in 2-5 days

0

92025L

Kawasaki 92025-2222

SHIM,T=1.60

$4.49

$

Usually ships in 2-5 days

0

92025M

Kawasaki 92025-2223

SHIM,T=1.635

$4.49

$

Usually ships in 2-5 days

0

92025N

Kawasaki 92025-2224

SHIM,T=1.67

$4.49

$

Usually ships in 2-5 days

0

92025O

Kawasaki 92025-2225

SHIM,T=1.705

$4.49

$

Usually ships in 2-5 days

0

92025P

Kawasaki 92025-2226

SHIM,T=1.74

$

$

Not available

92025Q

Kawasaki 92025-2227

SHIM,T=1.775

$4.49

$

Usually ships in 2-5 days

0

92025R

Kawasaki 92025-2228

SHIM,T=1.81

$4.49

$

Usually ships in 2-5 days

0

92026

Kawasaki 92026-2156

SPACER

$

$

Not available

92026A

Kawasaki 92026-2160

SPACER

$23.99

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-2080

RING-SNAP

$

$

Not available

92038

Kawasaki 92038-2094

KEY

$2.49

$

Usually ships in 2-5 days

0

92055

Kawasaki 92055-2072

RING-O

$1.49

$

In Stock, Qty 20+

0

92141

Kawasaki 92141-2108

BEARING-PLANE

$

$

Not available

92150

Kawasaki 92150-2193

BOLT

$

$

Not available
