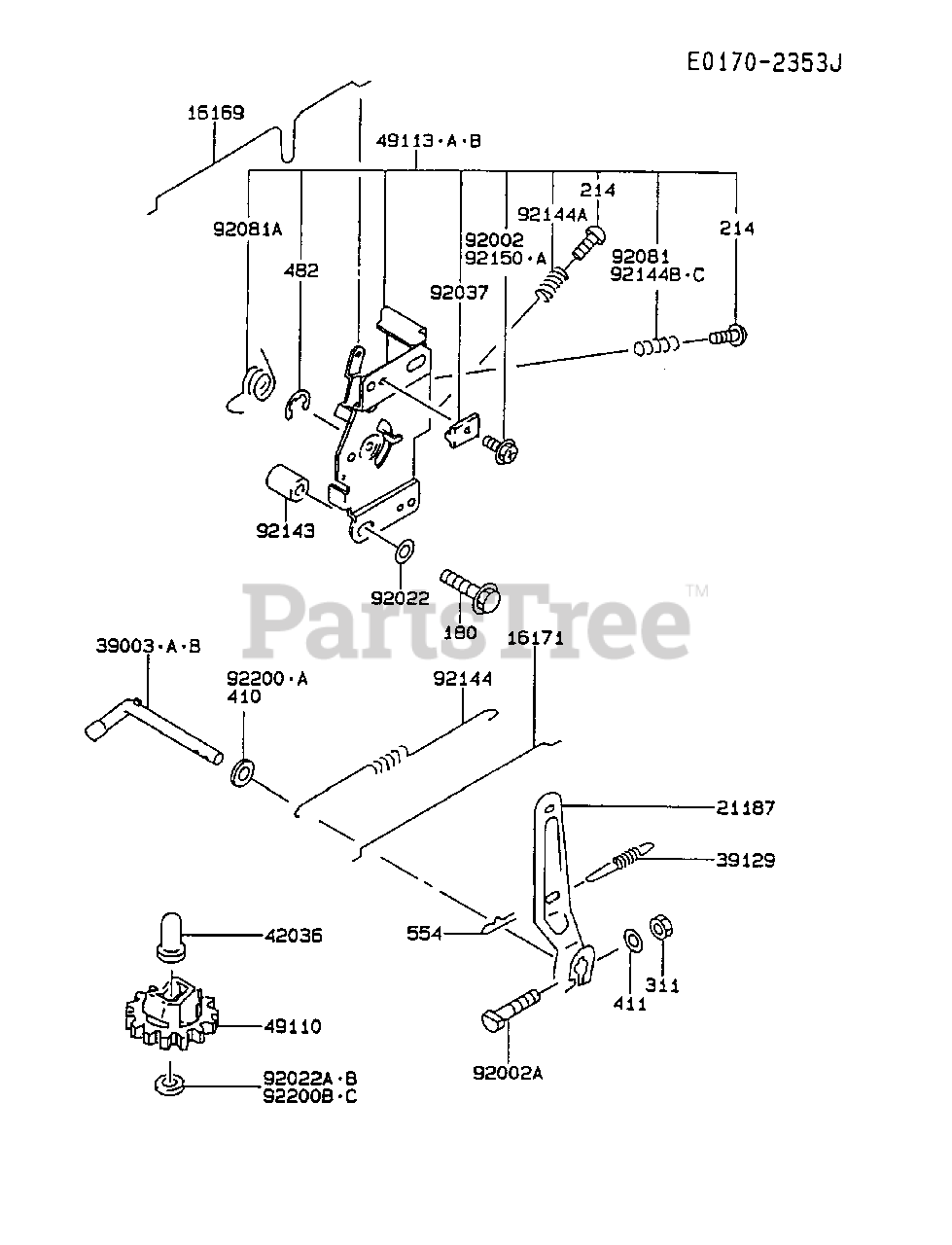

FC420V-BS01 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

CONTROL-EQUIPMENT Parts Diagram

  • Title
16169

Kawasaki 16169-2088

LINK-CHOKE
(Superseded to 16169-2130)

$2.99

$

Usually ships in 2-5 days

0

16171

Kawasaki 16171-2056

LINK,GOVERNOR
(Superseded to 16171-2079)

$0.99

$

In Stock, only 2 left!

0

21187

$

$

Not available

39003

$9.49

$

Usually ships in 2-5 days

0

39003B

$

$

Not available

39129

Kawasaki 39129-2011

SPRING-GOVERNOR

$

$

Not available

42036

Kawasaki 42036-2060

SLEEVE
(Superseded to 42036-2059)

$4.99

$

In Stock, Qty 10

0

49110

Kawasaki 49110-2067

GOVERNOR-ASSY
(Superseded to 49110-2084)

$

$

Not available

49113

Kawasaki 49113-2057

PANEL-COMP-CONTROL

$

$

Not available

49113A

Kawasaki 49113-2085

PANEL-COMP-CONTROL
(Superseded to 49113-2103)

$

$

Not available

92002

Kawasaki 92002-2188

BOLT
(Superseded to 310701-1225A)

$0.99

$

In Stock, Qty 20+

0

92002A

$1.99

$

In Stock, Qty 6

0

92022

Kawasaki 92022-2089

WASHER
(Superseded to 92022-2374)

$1.49

$

In Stock, only 4 left!

0

92022A

Kawasaki 92022-2019

WASHER
(Superseded to 92200-2036)

$1.49

$

In Stock, Qty 12

0

92037

$1.99

$

Usually ships in 2-5 days

0

92081

Kawasaki 92081-2103

SPRING
(Superseded to 92144-2266)

$5.49

$

Usually ships in 2-5 days

0

92081A

$

$

Not available

92143

$1.99

$

In Stock, only 4 left!

0

92144

$

$

Not available

92144C

$5.49

$

Usually ships in 2-5 days

0

92150A

$0.99

$

In Stock, Qty 20+

0

92200A

Kawasaki 92200-2029

WASHER,6.5X11.5X2.0

$0.99

$

In Stock, only 2 left!

0

180

Kawasaki 180B0635

BOLT-UPSET-WS
(Superseded to 180AA0635)

$2.49

$

In Stock, Qty 20+

0

214

Kawasaki 214B0425

SCREW-PAN+-
(Superseded to 214AA0425)

$1.49

$

In Stock, only 4 left!

0

311

Kawasaki 311B0600

NUT-HEX
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 20+

0

410

Kawasaki 410B0600

W-PLAIN-S
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0

554

Kawasaki 554A0600

PIN-SNAP
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0
