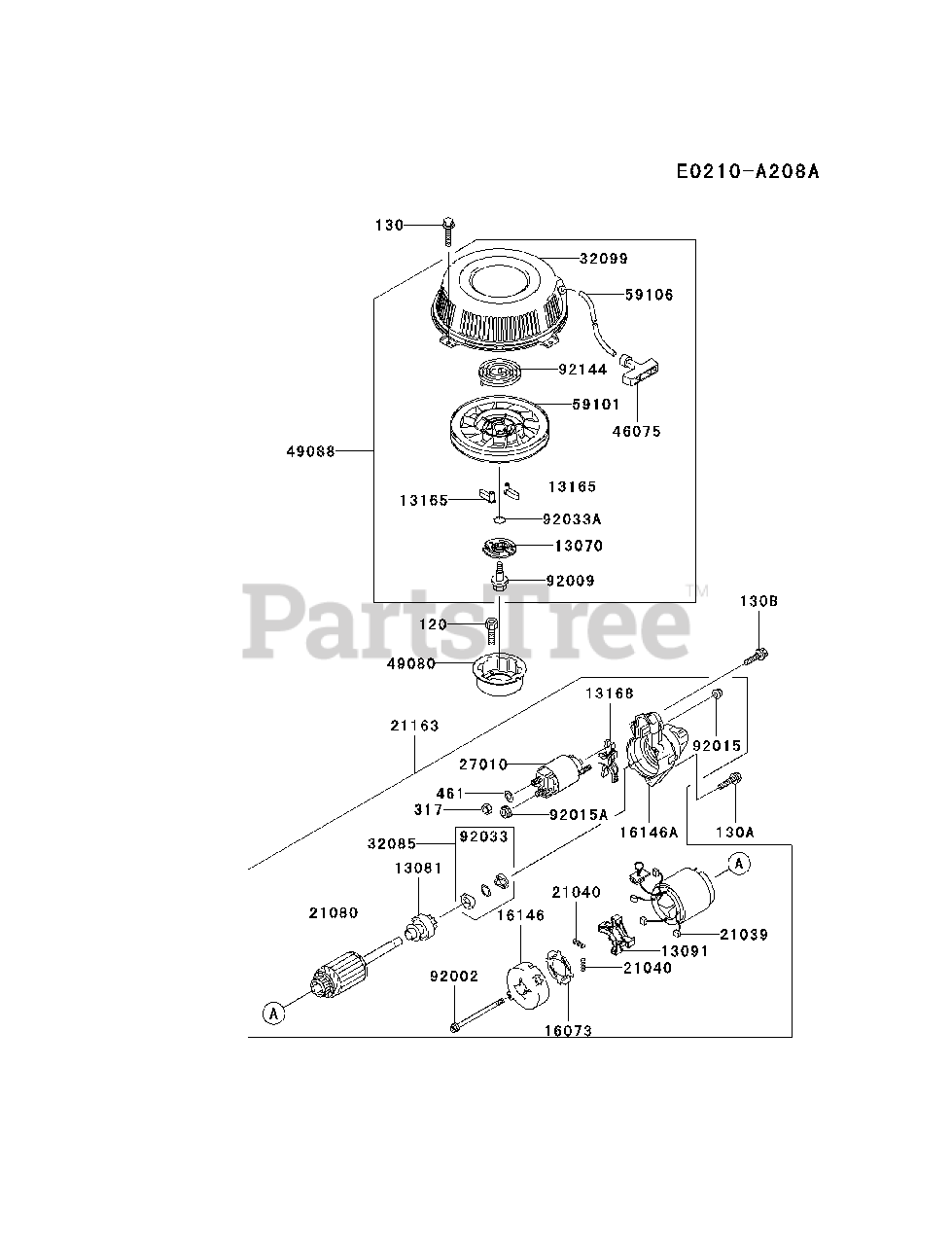

FC420V-AS24 - Kawasaki Engine STARTER Parts Diagram

Engine

STARTER Parts Diagram

  • Title

13070

Kawasaki 13070-2102

GUIDE

$21.99

$

Usually ships in 2-5 days

0

13081

Kawasaki 13081-2085

CLUTCH-ASSY

$122.99

$

Usually ships in 2-5 days

0

13091

Kawasaki 13091-2068

HOLDER,BRUSH
(Superseded to 13280-0873)

$29.99

$

Usually ships in 2-5 days

0

13165

Kawasaki 13165-2092

PAWL,RECOIL STARTER

$5.49

$

In Stock, Qty 20+

0

13168

Kawasaki 13168-2131

LEVER,SHIFT

$24.99

$

In Stock, only 1 left!

0

16073

Kawasaki 16073-2098

INSULATOR

$10.99

$

Usually ships in 2-5 days

0

16146

Kawasaki 16146-2077

COVER-ASSY

$83.99

$

In Stock, only 1 left!

0

16146A

Kawasaki 16146-2106

COVER-ASSY
(Superseded to 16146-2246)

$92.99

$

Usually ships in 2-5 days

0

21039

Kawasaki 21039-2059

BRUSH
(Superseded to 21039-0011)

$15.99

$

In Stock, only 1 left!

0

21040

Kawasaki 21040-2052

SPRING-BRUSH

$3.99

$

Usually ships in 2-5 days

0

21080

Kawasaki 21080-2054

ARMATURE

$

$

Not available

21163

Kawasaki 21163-2073

STARTER-ELECTRIC
(Superseded to 21163-2138)

$498.99

$

In Stock, only 1 left!

0

27010

Kawasaki 27010-2122

SWITCH
(Superseded to 270107005)

$189.99

$

In Stock, Qty 8

0

32085

Kawasaki 32085-2097

STOPPER

$15.99

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-2308-YK

CASE,RECOIL STARTER

$

$

Not available

46075

Kawasaki 46075-2106

GRIP,RECOIL STARTER

$12.99

$

In Stock, Qty 15

0

49080

Kawasaki 49080-2176

PULLEY-STARTING

$

$

Not available

49088

Kawasaki 49088-2473-YK

STARTER-RECOIL
(Superseded to 49088-2473-9H)

$143.99

$

In Stock, Qty 8

0

59101

Kawasaki 59101-2110

REEL,RECOIL STARTER
(Superseded to 591010018)

$33.99

$

In Stock, Qty 15

0

59106

Kawasaki 59106-2082

ROPE,5X1500
(Superseded to 59106-2157)

$4.99

$

In Stock, Qty 12

0

92002

Kawasaki 92002-2277

BOLT
(Superseded to 92154-2116)

$13.99

$

In Stock, Qty 5

0

92009

Kawasaki 92009-2382

SCREW

$2.99

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-2146

NUT

$1.99

$

Usually ships in 2-5 days

0

92015A

Kawasaki 92015-2147

NUT

$7.49

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-2081

RING-SNAP

$6.99

$

Usually ships in 2-5 days

0

92033A

Kawasaki 92033-2175

RING-SNAP

$0.99

$

In Stock, Qty 20+

0

92144

Kawasaki 92144-2399

SPRING
(Superseded to 92145-2090)

$7.99

$

In Stock, Qty 20+

0

120

Kawasaki 120P0620

BOLT-SOCKET
(Superseded to 120CA0620)

$1.49

$

In Stock, only 4 left!

0

130

Kawasaki 130B0610

BOLT-FLANGED
(Superseded to 130AA0610)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0835

BOLT-FLANGED
(Superseded to 130AA0835)

$1.49

$

Usually ships in 2-5 days

0

130B

Kawasaki 130B0840

BOLT-FLANGED
(Superseded to 130BA0840)

$2.49

$

In Stock, Qty 7

0

317

Kawasaki 317B0800

NUT-HEX-SMALL
(Superseded to 317AA0800)

$0.99

$

In Stock, Qty 19

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
