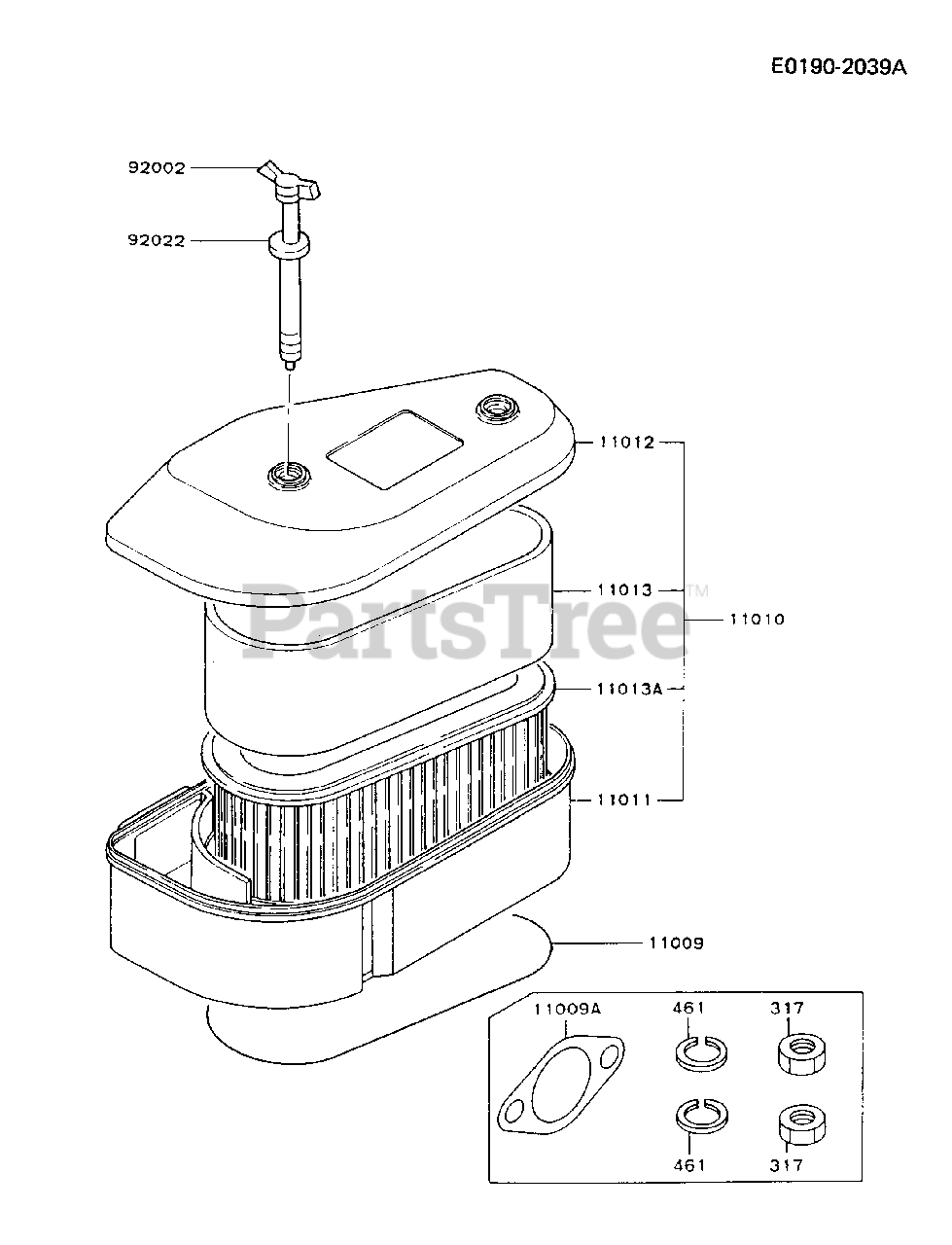

FC420V-AS04 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11009

$4.99

$

In Stock, Qty 10

0

11009A

Kawasaki 11009-2755

GASKET
(Superseded to 11060-2382)

$4.99

$

In Stock, Qty 11

0

11010

Kawasaki 11010-2327

FILTER-ASSY-AIR
(Superseded to 11010-2421)

$71.99

$

In Stock, Qty 5

0

11011

Kawasaki 11011-2185

CASE-AIR FILTER
(Superseded to 11011-2227)

$

$

Not available

11012

Kawasaki 11012-2223

CAP,AIR FILTER

$

$

Not available

11013

Kawasaki 11013-2109

ELEMENT-AIR FILTER
(Superseded to 11013-2140)

$5.49

$

In Stock, Qty 12

0

11013A

Kawasaki 11013-2110

ELEMENT-AIR FILTER
(Superseded to 11013-2141)

$17.99

$

In Stock, Qty 7

0

92002

Kawasaki 92002-2274

BOLT
(Superseded to 92153-1971)

$

$

Not available

92022

Kawasaki 92022-2220

WASHER
(Superseded to 92200-0423)

$

$

Not available

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
