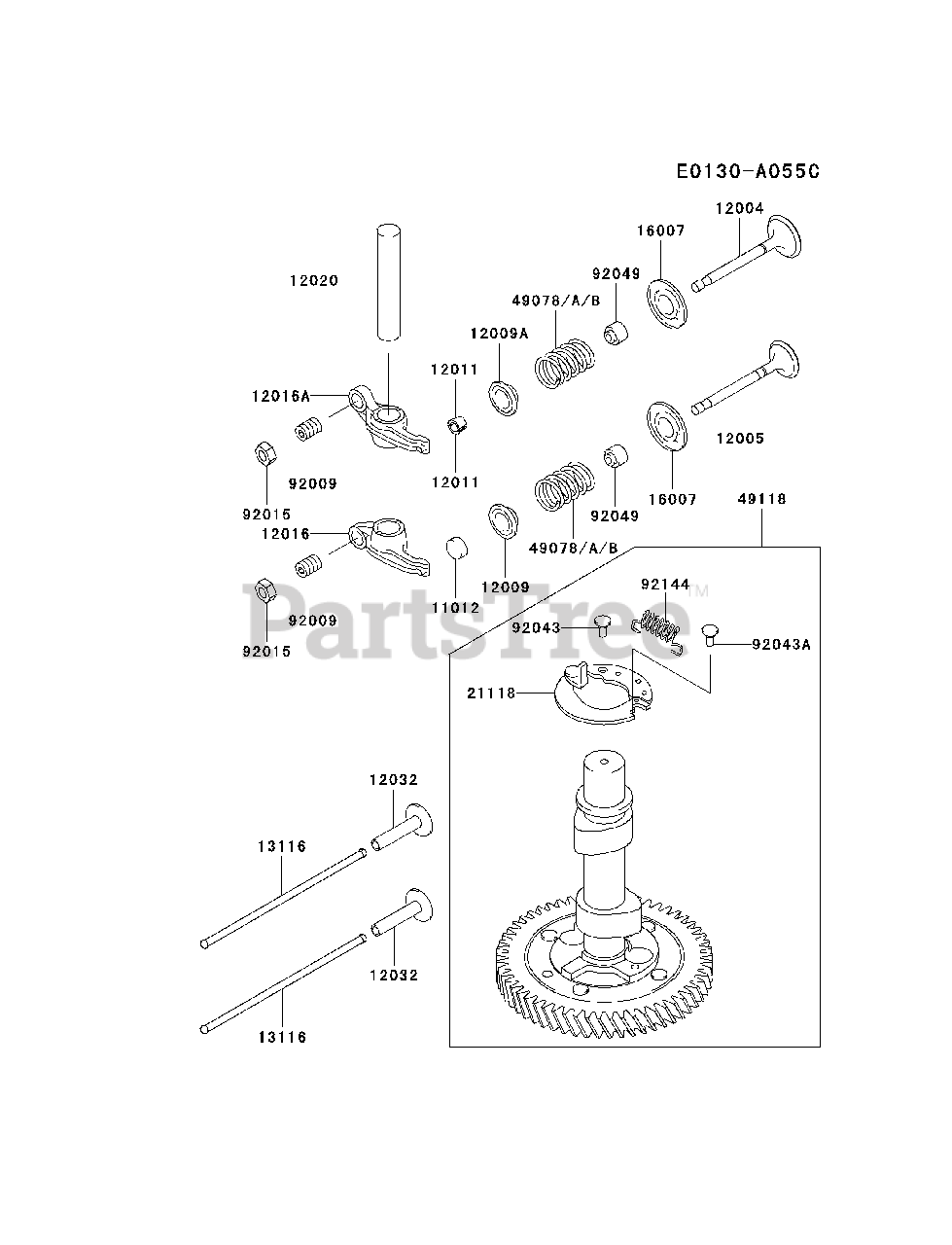

FC401V-AS01 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

VALVE/CAMSHAFT Parts Diagram

  • Title
11012

Kawasaki 11012-2189

CAP,VALVE
(Superseded to 11012-2184)

$4.99

$

In Stock, only 1 left!

0

12004

Kawasaki 12004-2097

VALVE-INTAKE
(Superseded to 12004-2085)

$

$

Not available

12005

Kawasaki 12005-2086

VALVE-EXHAUST

$

$

Not available

12009

Kawasaki 12009-2058

RETAINER-VALVE SPRING
(Superseded to 12009-2056)

$13.99

$

In Stock, only 1 left!

0

12009A

Kawasaki 12009-2060

RETAINER-VALVE SPRING

$5.99

$

In Stock, Qty 6

0

12011

$2.99

$

In Stock, Qty 5

0

12016

Kawasaki 12016-2054

ARM-ROCKER

$

$

Not available

12016A

Kawasaki 12016-2055

ARM-ROCKER

$

$

Not available

12020

Kawasaki 12020-2058

SHAFT-ROCKER

$

$

Not available

12032

Kawasaki 12032-2068

TAPPET
(Superseded to 12032-2061)

$10.99

$

In Stock, only 1 left!

0

13116

$

$

Not available

16007

Kawasaki 16007-2073

SEAT-SPRING

$

$

Not available

21118

Kawasaki 21118-2077

DECOMPRESSOR
(Superseded to 21118-2055)

$

$

Not available

49078

Kawasaki 49078-2068

SPRING-ENGINE VALVE
(Superseded to 49078-2076)

$4.99

$

Usually ships in 2-5 days

0

49118

Kawasaki 49118-2133

CAMSHAFT-COMP
(Superseded to 49118-2145)

$

$

Not available

92009

$

$

Not available

$

$

Not available

$1.99

$

Usually ships in 2-5 days

0

92043A

$13.99

$

Usually ships in 2-5 days

0

92049

Kawasaki 92049-2223

SEAL-OIL
(Superseded to 92049-2275)

$4.49

$

In Stock, Qty 15

0

92144

$3.99

$

Usually ships in 2-5 days

0
