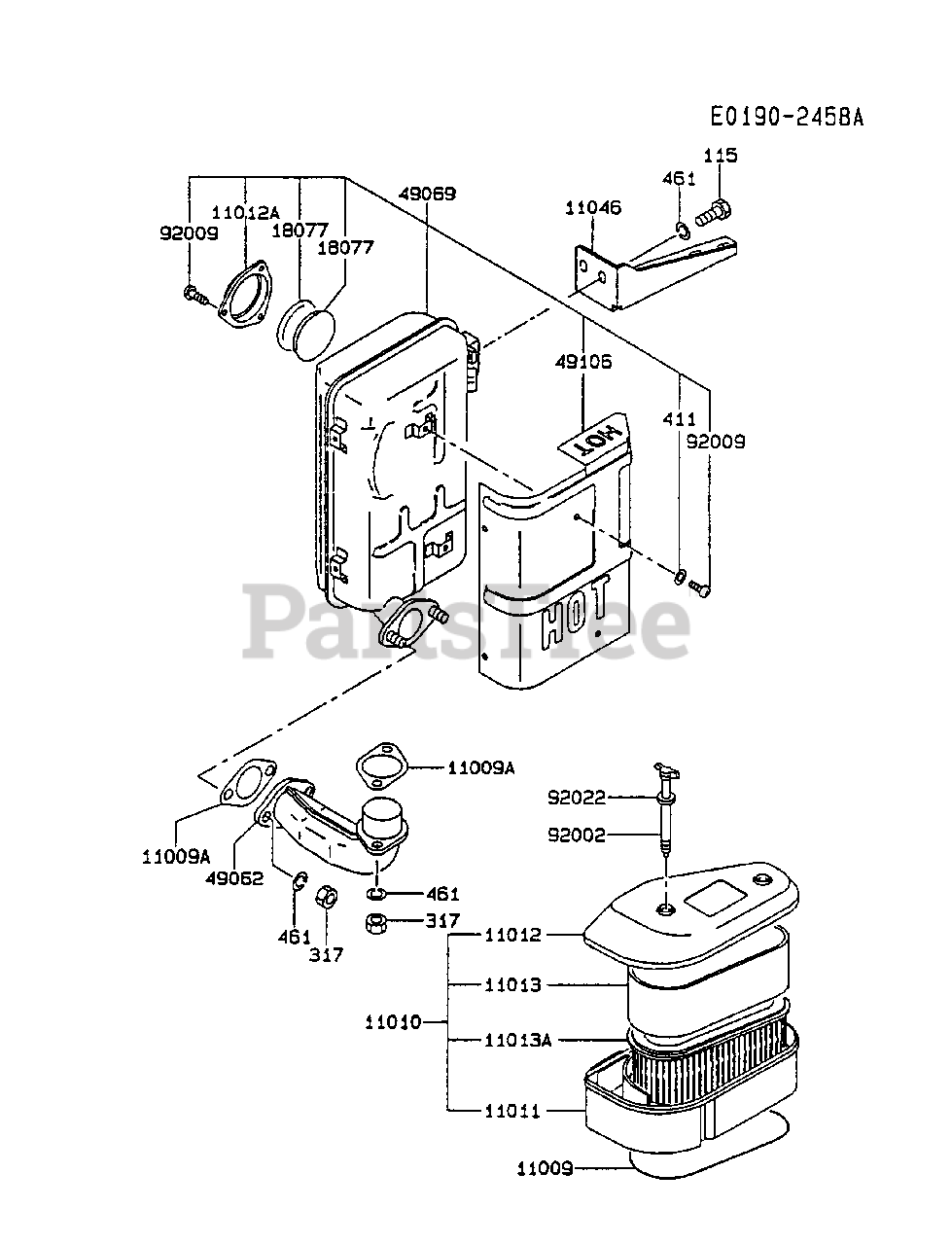

FC400V-AS03 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11009

Kawasaki 11009-2505

GASKET,AIR FILTER

$4.99

$

In Stock, Qty 10

0

11009A

Kawasaki 11009-2943

GASKET,MUFFLER
(Superseded to 11060-2382)

$4.99

$

In Stock, Qty 11

0

11010

Kawasaki 11010-2421

FILTER-ASSY-AIR
(Superseded to 11010-2327)

$71.99

$

In Stock, Qty 5

0

11011

Kawasaki 11011-2227

CASE-AIR FILTER
(Superseded to 11011-2185)

$

$

Not available

11012

Kawasaki 11012-2223

CAP,AIR FILTER

$

$

Not available

11012A

Kawasaki 11012-2251-9Y

CAP,SPARK ARRESTER
(Superseded to 11012-2165-9Y)

$

$

Not available

11013

Kawasaki 11013-2109

ELEMENT-AIR FILTER
(Superseded to 11013-2140)

$5.49

$

In Stock, Qty 12

0

11013A

Kawasaki 11013-2141

ELEMENT-AIR FILTER
(Superseded to 11013-2110)

$17.99

$

In Stock, Qty 7

0

11046

$

$

Not available

18077

Kawasaki 18077-2052

ARRESTER-SPARK

$

$

Not available

49062

Kawasaki 49062-2057-9Y

PIPE-COMP-EXHAUST

$

$

Not available

49069

Kawasaki 49069-2209-9Y

MUFFLER-ASSY

$

$

Not available

49106

Kawasaki 49106-2471-9Y

COVER-MUFFLER

$

$

Not available

92002

Kawasaki 92002-2274

BOLT
(Superseded to 92153-1971)

$

$

Not available

92009

$0.99

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2220

WASHER
(Superseded to 92200-0423)

$

$

Not available

115

Kawasaki 115G0816

BOLT-SMALL-UPSET
(Superseded to 115BA0816)

$0.99

$

In Stock, only 4 left!

0

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

411

Kawasaki 411B0500

WASHER-PLAIN
(Superseded to 410AA0500)

$0.99

$

In Stock, Qty 9

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
