FC290V-FS05 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

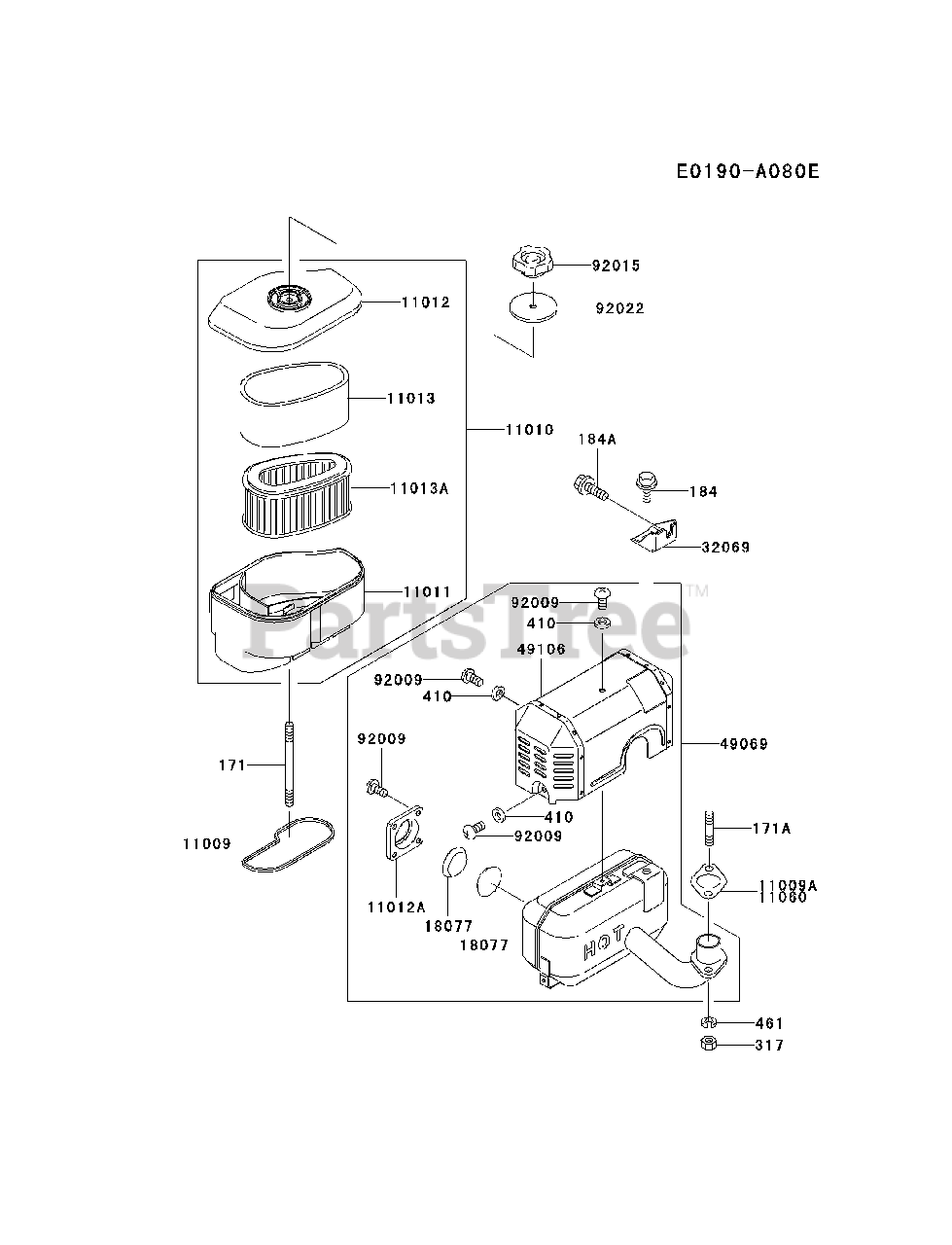

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11009

Kawasaki 11009-2422

GASKET,AIR FILTER

$

$

Not available

11010

Kawasaki 11010-2248

FILTER-ASSY-AIR

$

$

Not available

11011

Kawasaki 11011-2152

CASE-AIR FILTER

$

$

Not available

11012

Kawasaki 11012-2183

CAP,AIR FILTER

$

$

Not available

11012A

Kawasaki 11012-2232-9Y

CAP,SPARK ARRESTER

$6.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-2092

ELEMENT-AIR FILTER

$

$

Not available

11013A

Kawasaki 11013-2093

ELEMENT-AIR FILTER

$24.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2381

GASKET,MUFFLER

$2.99

$

Usually ships in 2-5 days

0

18077

Kawasaki 18077-2087

ARRESTER-SPARK

$7.99

$

Usually ships in 2-5 days

0

32069

Kawasaki 32069-2063-9Y

BRACKET-MUFFLER

$

$

Not available

49069

Kawasaki 49069-2161-9Y

MUFFLER-ASSY

$

$

Not available

49106

Kawasaki 49106-2387-9Y

COVER-MUFFLER

$

$

Not available

92009

$0.99

$

Usually ships in 2-5 days

0

$

$

Not available

92022

$

$

Not available

171

Kawasaki 171G0690

BOLT-STUD
(Superseded to 171BA0690)

$

$

Not available

171A

Kawasaki 171G0820

BOLT-STUD
(Superseded to 171BA0820)

$1.99

$

In Stock, Qty 6

0

184

Kawasaki 184B0814

BOLT-UPSET-WP-SMALL

$

$

Not available

184A

Kawasaki 184B0818

BOLT-UPSET-WP-SMALL

$

$

Not available

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

410

Kawasaki 410B0500

W-PLAIN-S
(Superseded to 410AA0500)

$0.99

$

In Stock, Qty 9

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
