FC290V-BS05 - Kawasaki Engine STARTER Parts Diagram

Engine

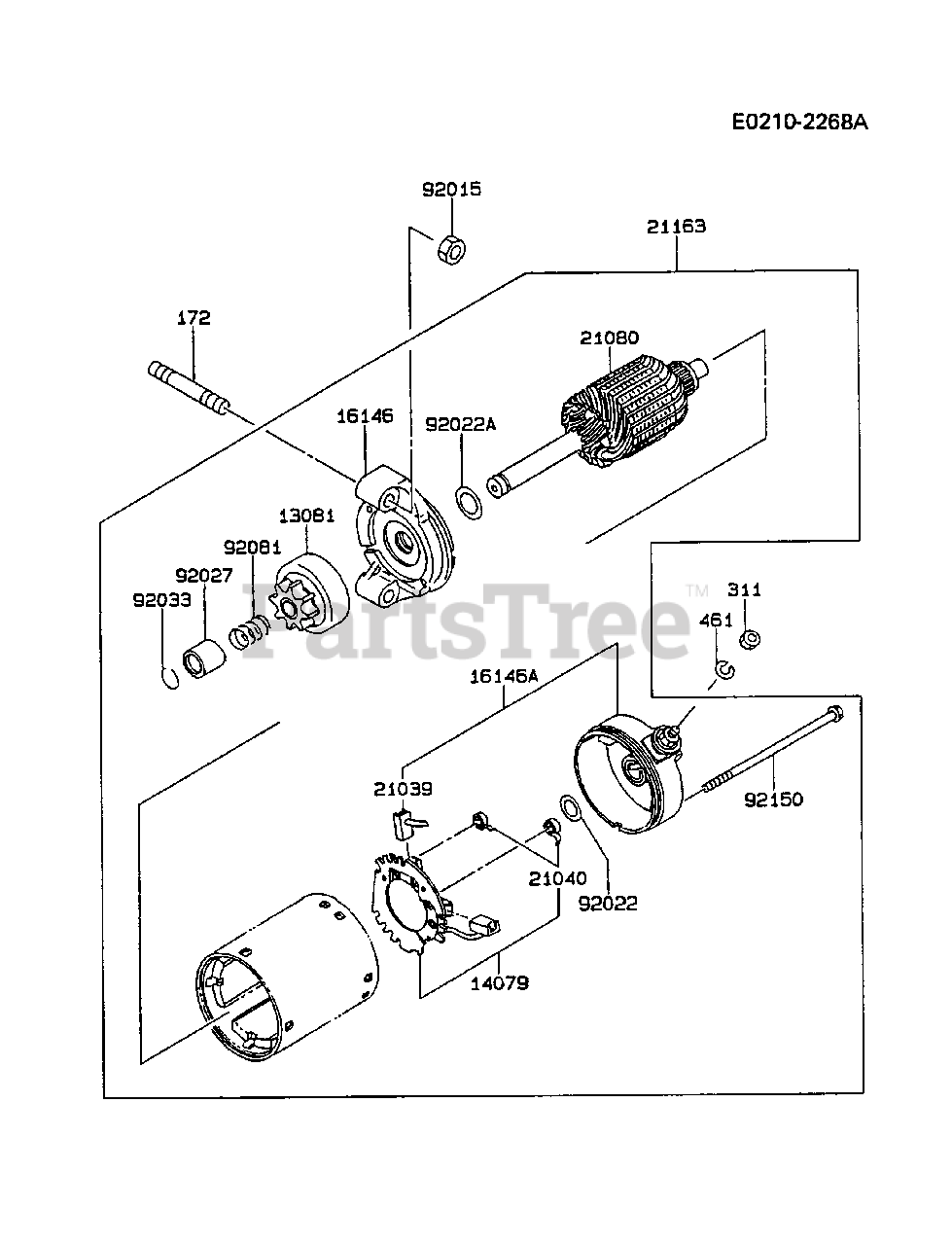

STARTER Parts Diagram

  • Title

13081

Kawasaki 13081-2086

CLUTCH-ASSY

$

$

Not available

14079

Kawasaki 14079-2055

HOLDER-ASSY
(Superseded to 14079-1056)

$50.99

$

Usually ships in 2-5 days

0

16146

Kawasaki 16146-2079

COVER-ASSY

$

$

Not available

16146A

Kawasaki 16146-2080

COVER-ASSY

$

$

Not available

21039

Kawasaki 21039-2057

BRUSH

$14.99

$

Usually ships in 2-5 days

0

21040

Kawasaki 21040-1051

SPRING-BRUSH
(Superseded to 21040-0001)

$8.99

$

Usually ships in 2-5 days

0

21080

Kawasaki 21080-2061

ARMATURE

$

$

Not available

21163

Kawasaki 21163-2068

STARTER-ELECTRIC

$

$

Not available

92015

Kawasaki 92015-1143

NUT

$0.99

$

In Stock, Qty 10

0

92022

Kawasaki 92022-2200

WASHER

$1.99

$

Usually ships in 2-5 days

0

92022A

Kawasaki 92022-2201

WASHER

$

$

Not available

92027

Kawasaki 92027-2085

COLLAR

$16.99

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-2076

RING-SNAP

$5.49

$

In Stock, Qty 5

0

92081

Kawasaki 92081-2327

SPRING

$

$

Not available

92150

Kawasaki 92150-1237

BOLT

$12.99

$

Usually ships in 2-5 days

0

172

Kawasaki 172G0840

BOLT-STUD

$

$

Not available

311

Kawasaki 311B0600

NUT-HEX
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 20+

0

461

Kawasaki 461F0600

WASHER-SPRING
(Superseded to 461DA0600)

$0.99

$

In Stock, Qty 6

0
