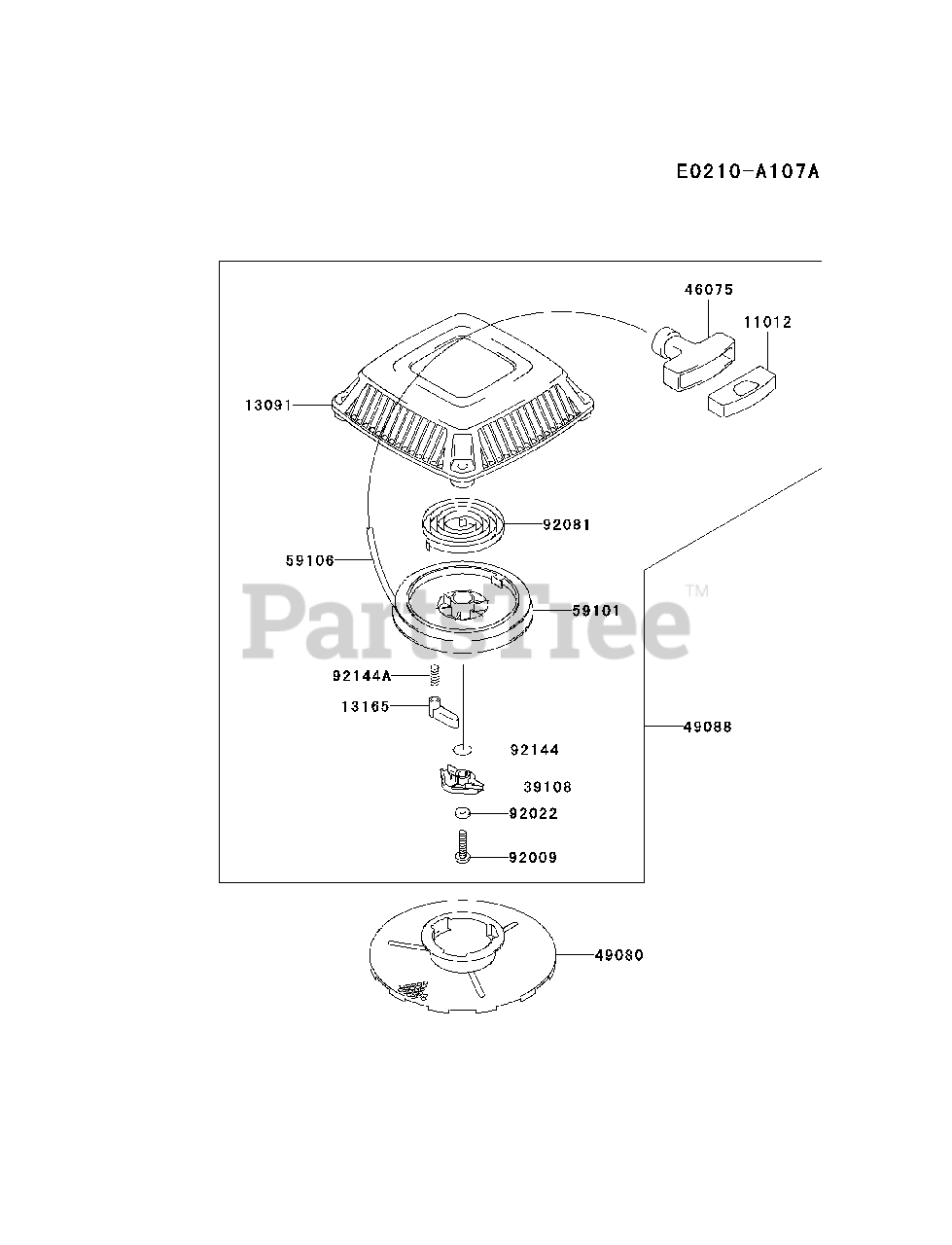

FC150V-FS26 - Kawasaki Engine STARTER Parts Diagram

Engine

STARTER Parts Diagram

  • Title
11012

$4.99

$

Usually ships in 2-5 days

0

13091

$

$

Not available

13165

Kawasaki 13165-2072

PAWL,RECOIL STARTER

$2.99

$

In Stock, Qty 13

0

39108

Kawasaki 39108-2059

RETAINER-SPRING

$3.49

$

In Stock, only 2 left!

0

46075

Kawasaki 46075-2082

GRIP,RECOIL STARTER

$9.49

$

Usually ships in 2-5 days

0

49080

Kawasaki 49080-2143

PULLEY-STARTING

$

$

Not available

49088

Kawasaki 49088-2467

STARTER-RECOIL

$

$

Not available

59101

Kawasaki 59101-2079

REEL,RECOIL STARTER

$21.99

$

In Stock, only 2 left!

0

59106

Kawasaki 59106-2108

ROPE,3.8X1400

$6.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2280

SCREW,5X18

$

$

Not available

92022

Kawasaki 92022-2384

WASHER,5X12.8X1.2

$0.99

$

In Stock, only 4 left!

0

92081

Kawasaki 92081-2265

SPRING,RECOIL

$21.99

$

In Stock, only 2 left!

0

92144

$0.99

$

In Stock, Qty 8

0

92144A

Kawasaki 92144-2177

SPRING,RETURN

$0.99

$

In Stock, Qty 16

0
