FC150V-ES32 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

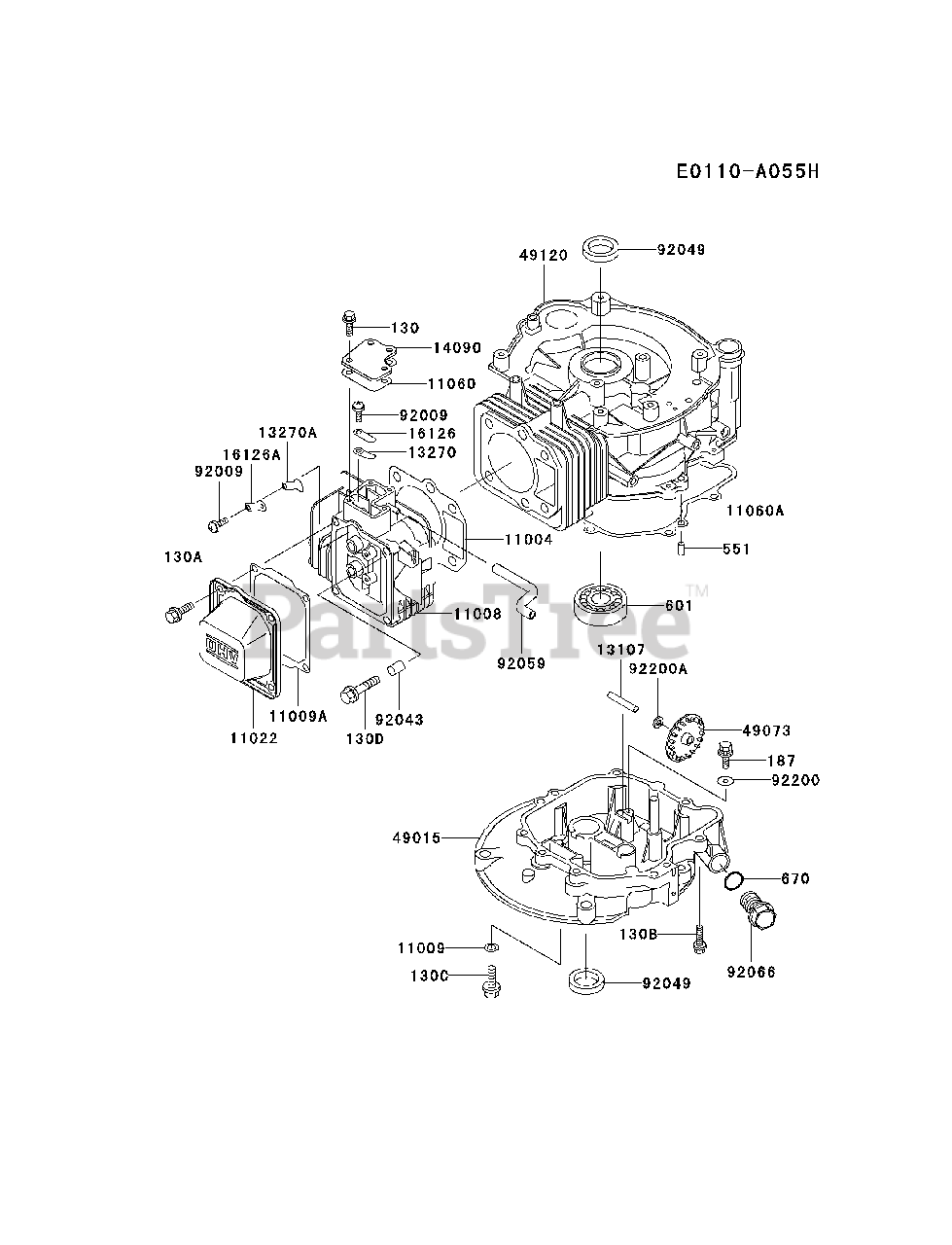

CYLINDER/CRANKCASE Parts Diagram

  • Title
11004

Kawasaki 11004-2099

GASKET-HEAD

$

$

Not available

11008

Kawasaki 11008-6023

HEAD-COMP-CYLINDER
(Superseded to 11008-6020)

$

$

Not available

11009

$0.99

$

In Stock, only 3 left!

0

11009A

Kawasaki 11009-2848

GASKET,ROCKER CASE
(Superseded to 11009-2739)

$

$

Not available

11022

Kawasaki 11022-2057

CASE-ROCKER

$

$

Not available

11060

Kawasaki 11060-2007

GASKET,COVER

$0.99

$

In Stock, Qty 15

0

11060A

Kawasaki 11060-2011

GASKET,CRANKCASE COVER
(Superseded to 11009-2770)

$5.99

$

In Stock, Qty 11

0

13107

$

$

Not available

13270

Kawasaki 13270-2049

PLATE
(Superseded to 13183-2258)

$0.99

$

Usually ships in 2-5 days

0

13270A

Kawasaki 13270-2050

PLATE
(Superseded to 13183-2259)

$0.99

$

Usually ships in 2-5 days

0

14090

Kawasaki 14090-2087

COVER
(Superseded to 14024-2180)

$6.49

$

Usually ships in 2-5 days

0

16126

Kawasaki 16126-2201

VALVE
(Superseded to 16126-2149)

$0.99

$

Usually ships in 2-5 days

0

16126A

Kawasaki 16126-2202

VALVE
(Superseded to 16126-2150)

$

$

Not available

49015

Kawasaki 49015-6155

COVER-CRANKCASE

$

$

Not available

49073

Kawasaki 49073-2055

SLINGER-OIL

$

$

Not available

49120

Kawasaki 49120-2240

CRANKCASE-COMP

$

$

Not available

92009

$0.99

$

Usually ships in 2-5 days

0

$0.99

$

In Stock, only 1 left!

0

92049

Kawasaki 92049-2208

SEAL-OIL
(Superseded to 92049-2199)

$6.49

$

In Stock, Qty 20+

0

92059

$

$

Not available

92066

$

$

Not available

92200

Kawasaki 92200-2033

WASHER,5X16X0.8

$

$

Not available

92200A

Kawasaki 92200-2034

WASHER,6X12X1.6

$

$

Not available

130

Kawasaki 130B0510

BOLT-FLANGED
(Superseded to 130AA0510)

$1.49

$

In Stock, only 1 left!

0

130A

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130G0625

BOLT-FLANGED
(Superseded to 130BA0625)

$1.49

$

In Stock, Qty 20+

0

130C

Kawasaki 130G0812

BOLT-FLANGED
(Superseded to 130BA0812)

$1.49

$

In Stock, only 4 left!

0

130D

Kawasaki 130G0845

BOLT-FLANGED
(Superseded to 130BA0845)

$1.99

$

In Stock, Qty 13

0

187

Kawasaki 187B0510

BOLT-UPSET-WSP
(Superseded to 187AA0510)

$

$

Not available

551

Kawasaki 551A0612

PIN-DOWEL

$0.99

$

Usually ships in 2-5 days

0

601

Kawasaki 601B6205

BEARING-BALL
(Superseded to 601A6205)

$

$

Not available

670

$1.99

$

In Stock, Qty 5

0
