FC150V-ES30 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

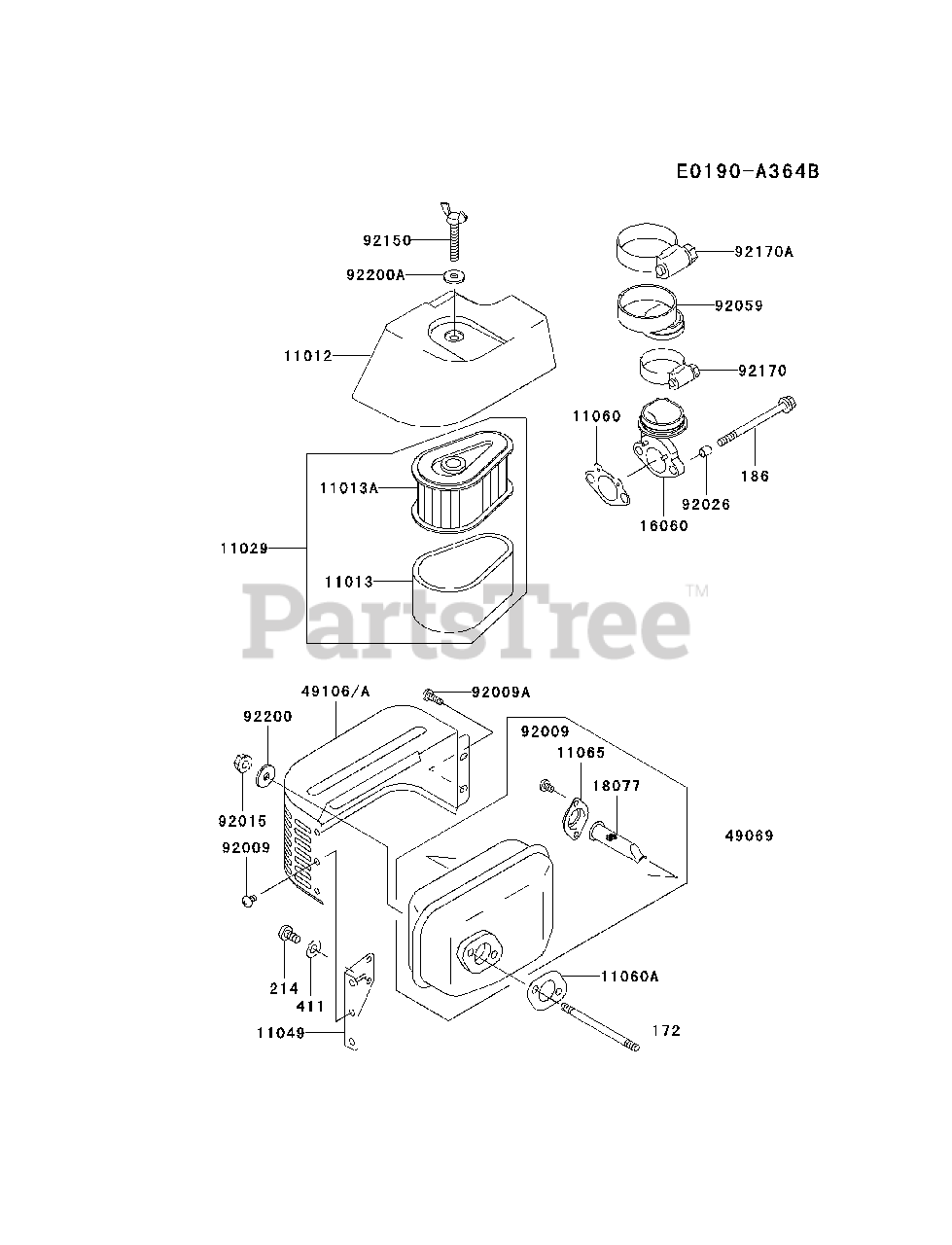

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11012

Kawasaki 11012-2311

CAP,AIR FILTER
(Superseded to 11012-2264)

$4.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-2174

ELEMENT-AIR FILTER
(Superseded to 11013-2119)

$10.99

$

Usually ships in 2-5 days

0

11013A

Kawasaki 11013-2175

ELEMENT-AIR FILTER
(Superseded to 11013-2120)

$18.99

$

In Stock, only 1 left!

0

11029

Kawasaki 11029-2010

ELEMENT-ASSY-AIR FILTER
(Superseded to 11029-2002)

$21.99

$

In Stock, Qty 8

0

11049

Kawasaki 11049-2002

BRACKET
(Superseded to 11046-2053)

$1.99

$

In Stock, only 2 left!

0

11060

Kawasaki 11060-2067

GASKET,INTAKE PIPE
(Superseded to 11009-2742)

$8.49

$

In Stock, only 4 left!

0

11060A

Kawasaki 11060-2401

GASKET,MUFFLER
(Superseded to 11061-7029)

$3.49

$

In Stock, Qty 20+

0

$

$

Not available

16060

Kawasaki 16060-2182

PIPE-INTAKE
(Superseded to 16060-2129)

$

$

Not available

18077

Kawasaki 18077-2110

ARRESTER-SPARK

$

$

Not available

49069

Kawasaki 49069-2329

MUFFLER-ASSY

$

$

Not available

49106

Kawasaki 49106-2430

COVER-MUFFLER
(Superseded to 49106-2670)

$12.99

$

In Stock, only 1 left!

0

92009

$0.99

$

Usually ships in 2-5 days

0

92009A

$0.99

$

In Stock, Qty 10

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92026

Kawasaki 92026-2272

SPACER,6.2X7.8X8

$0.99

$

In Stock, Qty 9

0

92059

$3.49

$

In Stock, Qty 11

0

92150

$

$

Not available

92170

$9.99

$

In Stock, only 2 left!

0

92170A

$

$

Not available

92200

Kawasaki 92200-2032

WASHER,7X21X2.3

$0.99

$

In Stock, only 3 left!

0

92200A

Kawasaki 92200-2078

WASHER,6.5X18X2.0

$

$

Not available

172

Kawasaki 172G0680

BOLT-STUD
(Superseded to 172BA0680)

$3.49

$

In Stock, Qty 17

0

186

Kawasaki 186B0680

BOLT-UPSET-WP
(Superseded to 186AA0680)

$1.49

$

In Stock, Qty 15

0

214

Kawasaki 214B0510

SCREW-PAN+-
(Superseded to 214AA0510)

$0.99

$

In Stock, Qty 13

0

411

Kawasaki 411B0500

WASHER-PLAIN
(Superseded to 410AA0500)

$0.99

$

In Stock, Qty 9

0
