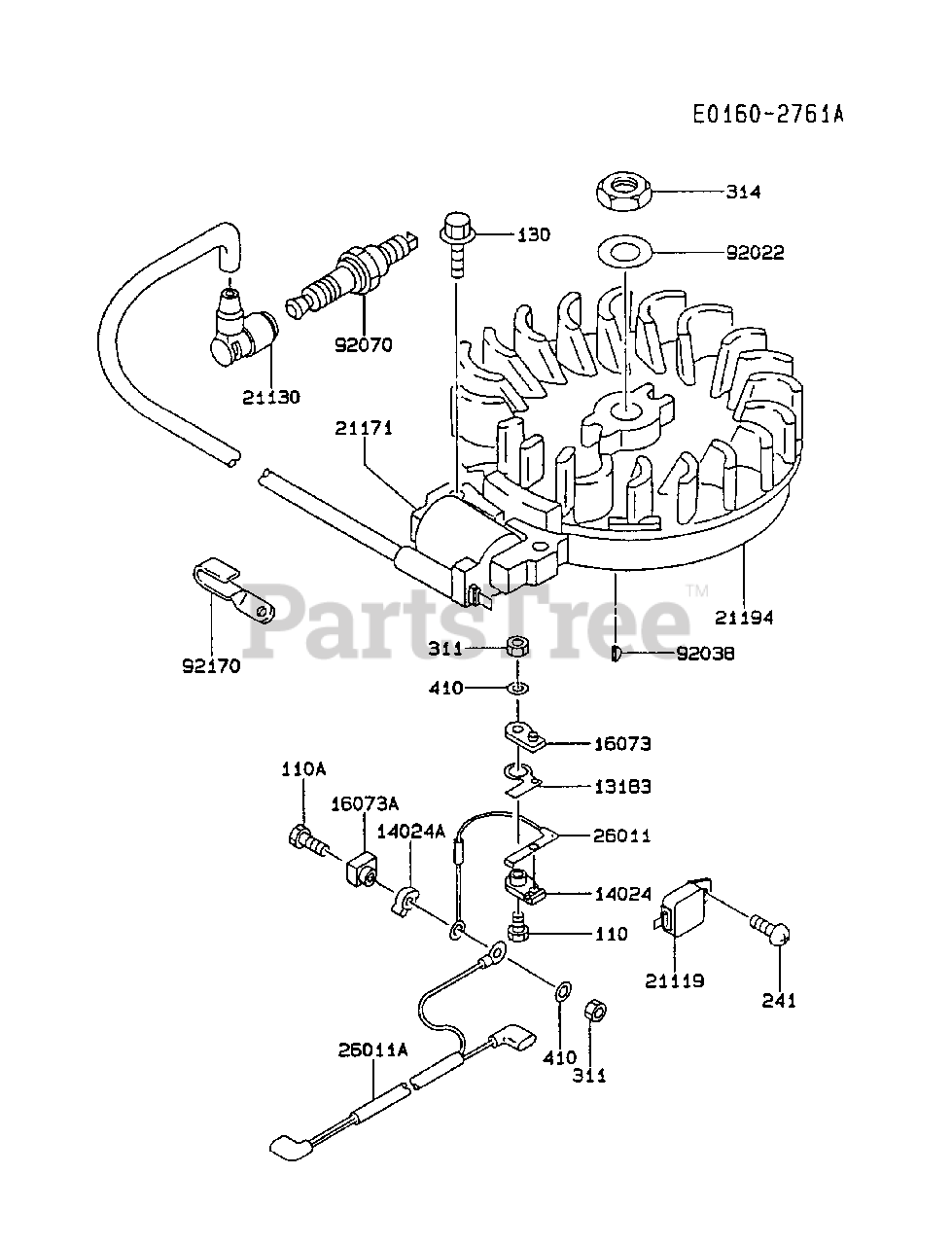

FC150V-ES08 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

13183

Kawasaki 13270-2475

PLATE

$

$

Currently unavailable

14024

Kawasaki 14024-2182

COVER

$

$

Not available

14024A

Kawasaki 14024-2183

COVER
(Superseded to 14090-2108)

$0.99

$

In Stock, only 1 left!

0

16073

Kawasaki 16073-2123

INSULATOR

$

$

Not available

16073A

Kawasaki 16073-2124

INSULATOR

$

$

Not available

21119

Kawasaki 21119-2139

IGNITER
(Superseded to 21119-2119)

$102.99

$

Usually ships in 2-5 days

0

21130

Kawasaki 21130-2060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, Qty 8

0

21171

Kawasaki 21171-2176

COIL-ASSY-IGNITION
(Superseded to 21171-2153)

$94.99

$

Usually ships in 2-5 days

0

21194

Kawasaki 21194-2218

FLYWHEEL-COMP
(Superseded to 21194-2186)

$136.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-2191

WIRE-LEAD

$

$

Not available

26011A

Kawasaki 26011-2279

WIRE-LEAD

$5.49

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2102

WASHER

$13.99

$

Usually ships in 2-5 days

0

92038

Kawasaki 92038-2077

KEY

$2.99

$

In Stock, Qty 14

0

92070

Kawasaki 92070-2088

PLUG-SPARK,BPR5ES
(Superseded to BPR5ES)

Note: NGK

$3.49

$

In Stock, Qty 20+

0

92170

Kawasaki 92170-2064

CLAMP

$1.49

$

Usually ships in 2-5 days

0

110

Kawasaki 112B0516

BOLT
(Superseded to 112AA0516)

$

$

Not available

110A

Kawasaki 112B0522

BOLT-FLANGED
(Superseded to 110B0522)

$0.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130G0625

BOLT-FLANGED
(Superseded to 130BA0625)

$1.49

$

In Stock, Qty 20+

0

241

Kawasaki 241B0412

SCREW-PAN-WP+-
(Superseded to 241AA0412)

$0.99

$

Usually ships in 2-5 days

0

311

Kawasaki 311B0500

NUT-HEX
(Superseded to 311AA0500)

$0.99

$

Usually ships in 2-5 days

0

314

Kawasaki 314G1400

NUT-HEX-FINE
(Superseded to 314G1400A)

$1.49

$

In Stock, Qty 7

0

410

Kawasaki 410B0500

W-PLAIN-S
(Superseded to 410AA0500)

$0.99

$

In Stock, Qty 9

0
