FC150V-AS03 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

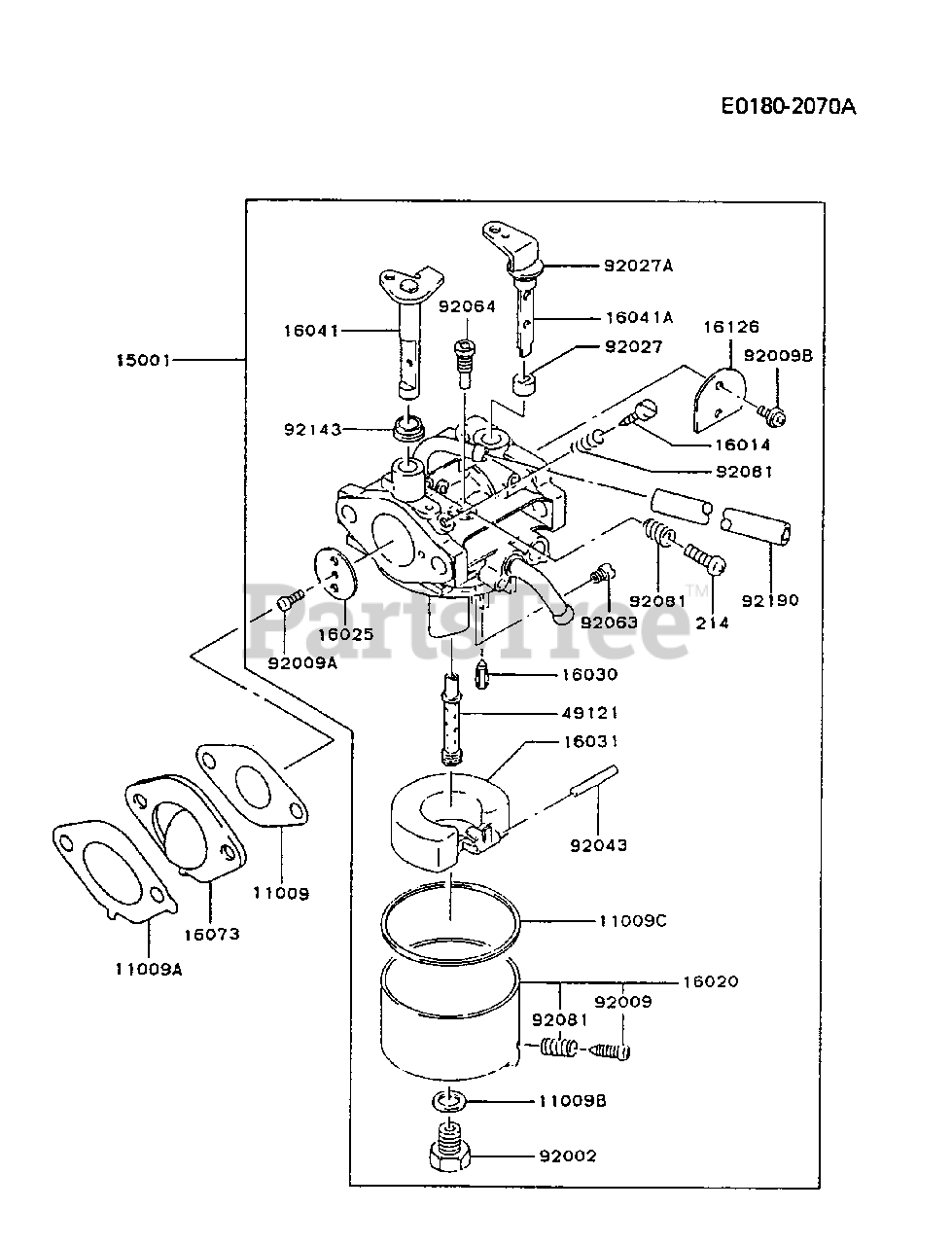

CARBURETOR Parts Diagram

  • Title
11009

Kawasaki 11009-2746

GASKET,CARBURETOR
(Superseded to 11060-2010)

$4.99

$

In Stock, Qty 6

0

11009A

Kawasaki 11009-2833

GASKET,INSULATOR
(Superseded to 11060-2012)

$1.99

$

In Stock, Qty 5

0

11009B

Kawasaki 11009-2036

GASKET
(Superseded to 314499-6159A)

$1.49

$

In Stock, Qty 11

0

11009C

Kawasaki 11009-2037

GASKET
(Superseded to 314598-6128A)

$6.49

$

In Stock, Qty 20+

0

15001

Kawasaki 15001-2962

CARBURETOR-ASSY
(Superseded to 15003-2364)

$137.99

$

In Stock, only 1 left!

0

16014

Kawasaki 16014-2004

SCREW-PILOT AIR

$

$

Not available

16020

Kawasaki 16020-2052

CHAMBER-FLOAT
(Superseded to 314576-6130A)

$

$

Not available

16025

Kawasaki 16025-2001

VALVE-THROTTLE,#110
(Superseded to 313650-6101-00)

$10.86

$

In Stock, only 1 left!

0

16030

Kawasaki 16030-2003

VALVE-FLOAT
(Superseded to 16030-2083)

$22.99

$

In Stock, only 1 left!

0

16031

$21.99

$

Usually ships in 2-5 days

0

16041

Kawasaki 16041-2178

SHAFT-CARBURETOR,THROTTLE

$

$

Not available

16041A

Kawasaki 16041-2194

SHAFT-CARBURETOR,CHOKE
(Superseded to 16041-2197)

$11.99

$

Usually ships in 2-5 days

0

16073

$

$

Not available

16126

Kawasaki 16126-2168

VALVE,CHOKE
(Superseded to 16126-2173)

$

$

Not available

49121

Kawasaki 49121-2113

NOZZLE-MAIN,#2A

$

$

Not available

92002

Kawasaki 92002-2011

BOLT
(Superseded to 314499-6143A)

$

$

Not available

92009

Kawasaki 92009-2015

SCREW
(Superseded to 315470-6133A)

$5.49

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2024

SCREW
(Superseded to 92009-2378)

$1.99

$

Usually ships in 2-5 days

0

92009B

Kawasaki 92009-2149

SCREW
(Superseded to 92009-2377)

$1.99

$

In Stock, Qty 6

0

92027

$3.99

$

Usually ships in 2-5 days

0

92027A

$5.99

$

Usually ships in 2-5 days

0

$3.49

$

In Stock, only 1 left!

0

92063

Kawasaki 92063-2096

JET-MAIN,#68.8

$

$

Not available

92064

Kawasaki 92064-2065

JET-PILOT,#38.8

$

$

Not available

92081

$3.49

$

In Stock, only 3 left!

0

92143

$

$

Not available

92190

Kawasaki 92190-2003

TUBE,5X8X125

$

$

Not available

214

Kawasaki 214B0412

SCREW-PAN+-
(Superseded to 214AA0412)

$0.99

$

In Stock, Qty 6

0
