FC 2255 - Jonsered Brushcutter (2011-01) THROTTLE CONTROLS Parts Diagram

Brushcutter

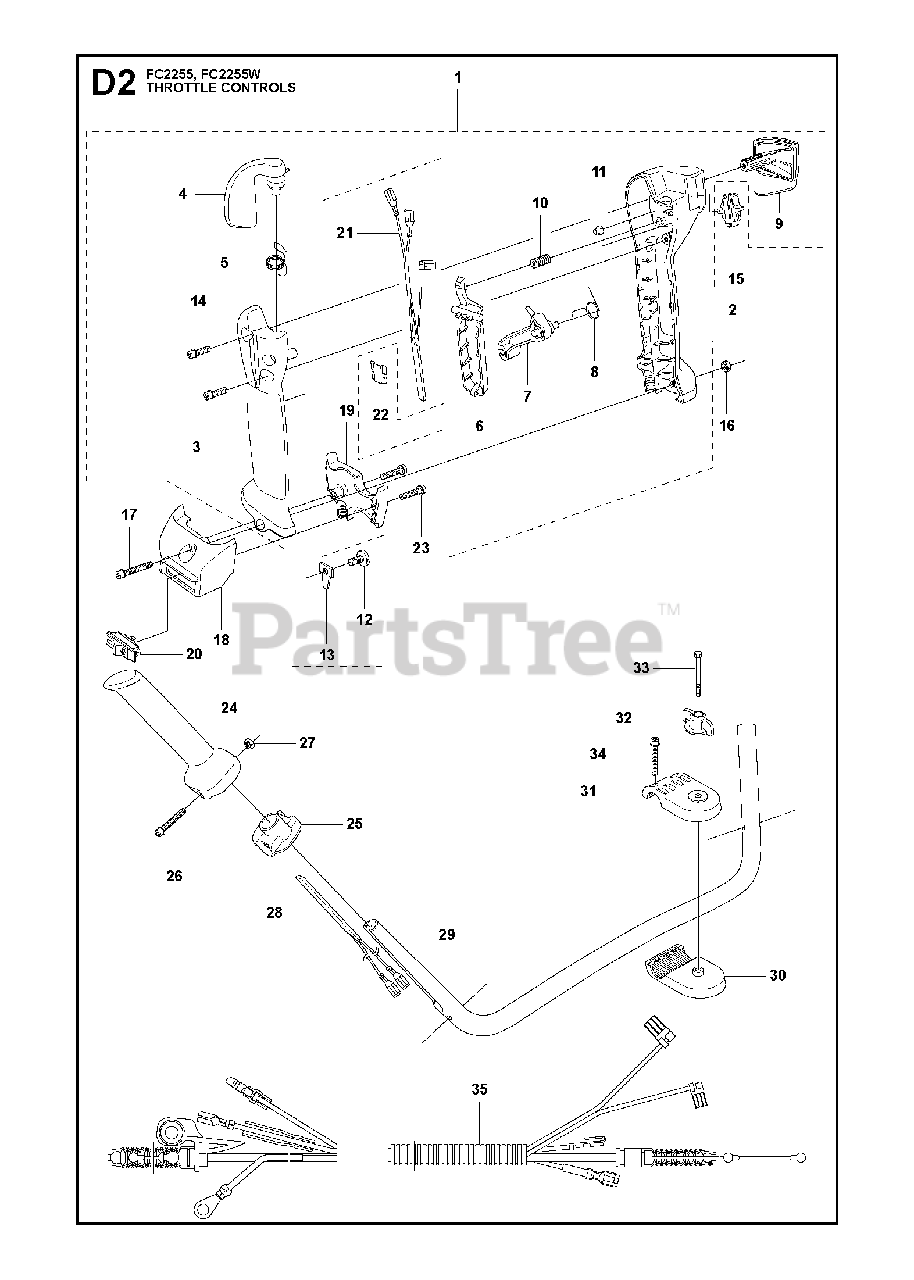

THROTTLE CONTROLS Parts Diagram

  • Title
1

Jonsered 537197214

No Description Available

Note: Incl Pos 2-14

$

$

Not available

2

Jonsered 537155205

HANDLE HALF RIGHT

Note: . 1

$

$

Not available

3

Jonsered 537155305

No Description Available

Note: . 1

$

$

Not available

4

Jonsered 537263402

No Description Available

Note: . 1

$

$

Not available

5

Jonsered 537283701

RP SPRING
(Superseded to 537353201)

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

6

Jonsered 537155602

No Description Available

Note: . 1

$

$

Not available

7

Jonsered 537263501

LEVER

Note: . 1

$10.99

$

In Stock, only 1 left!

0

8

Jonsered 537342701

SPRING

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 537182402

No Description Available

Note: . 1

$

$

Not available

10

Jonsered 537199701

SPRING

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 537307201

SLEEVE

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

12

Jonsered 503217010

SCREW

Note: . 1

$4.99

$

In Stock, Qty 12

0

13

Jonsered 537251101

HOLDER

Note: . 1

$

$

Not available

14

Jonsered 503217520

SCREW

Note: . 1

$6.49

$

In Stock, Qty 7

0

15

Jonsered 537419001

STOP BUTTON

$9.49

$

Usually ships in 3-10 days

0

16

Jonsered 731231405

NUT M6M M5

$3.49

$

Usually ships in 3-10 days

0

17

Jonsered 503200235

SCREW
(Superseded to 725533755)

Note: FC

$6.49

$

In Stock, Qty 5

0

17

Jonsered 503200245

SCREW

Note: FCW

$6.49

$

In Stock, only 1 left!

0

18

Jonsered 537201502

No Description Available
(Superseded to 537201501)

Note: FCW

$4.99

$

Usually ships in 3-10 days

0

19

Jonsered 537201602

No Description Available

Note: FCW

$

$

Not available

20

Jonsered 503718202

SWITCH (G)

Note: FCW

$13.99

$

Usually ships in 3-10 days

0

21

Jonsered 537227101

HEATING ELEMENT

Note: FCW

$68.99

$

Usually ships in 3-10 days

0

22

$

$

Not available

23

Jonsered 503217120

SCREW
(Superseded to 503216618)

Note: FCW

$7.49

$

In Stock, Qty 5

0

24

Jonsered 537172808

No Description Available

$

$

Not available

25

Jonsered 537172904

HANDLE FASTENER

$

$

Not available

$6.49

$

In Stock, only 1 left!

0

27

Jonsered 731231405

NUT M6M M5

$3.49

$

Usually ships in 3-10 days

0

28

Jonsered 537227201

HEATING ELEMENT

Note: FCW

$62.99

$

Usually ships in 3-10 days

0

29

Jonsered 503958602

%HANDLE
(Superseded to 525882002)

$39.99

$

Usually ships in 3-10 days

0

30

Jonsered 537129102

HANDLE BRACKET

$

$

Not available

31

Jonsered 537129002

HANDLE BRACKET

$42.99

$

Usually ships in 3-10 days

0

$8.99

$

In Stock, Qty 5

0

33

Jonsered 725238485

SCREW 6X70

$5.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 2 left!

0

35

Jonsered 537403401

WIRING

Note: FC

$39.99

$

In Stock, Qty 6

0

35

Jonsered 537403402

WIRING

Note: FCW

$157.99

$

Usually ships in 3-10 days

0
