FC 2245 W - Jonsered Brushcutter (2011-03) BEVEL GEAR Parts Diagram

Brushcutter

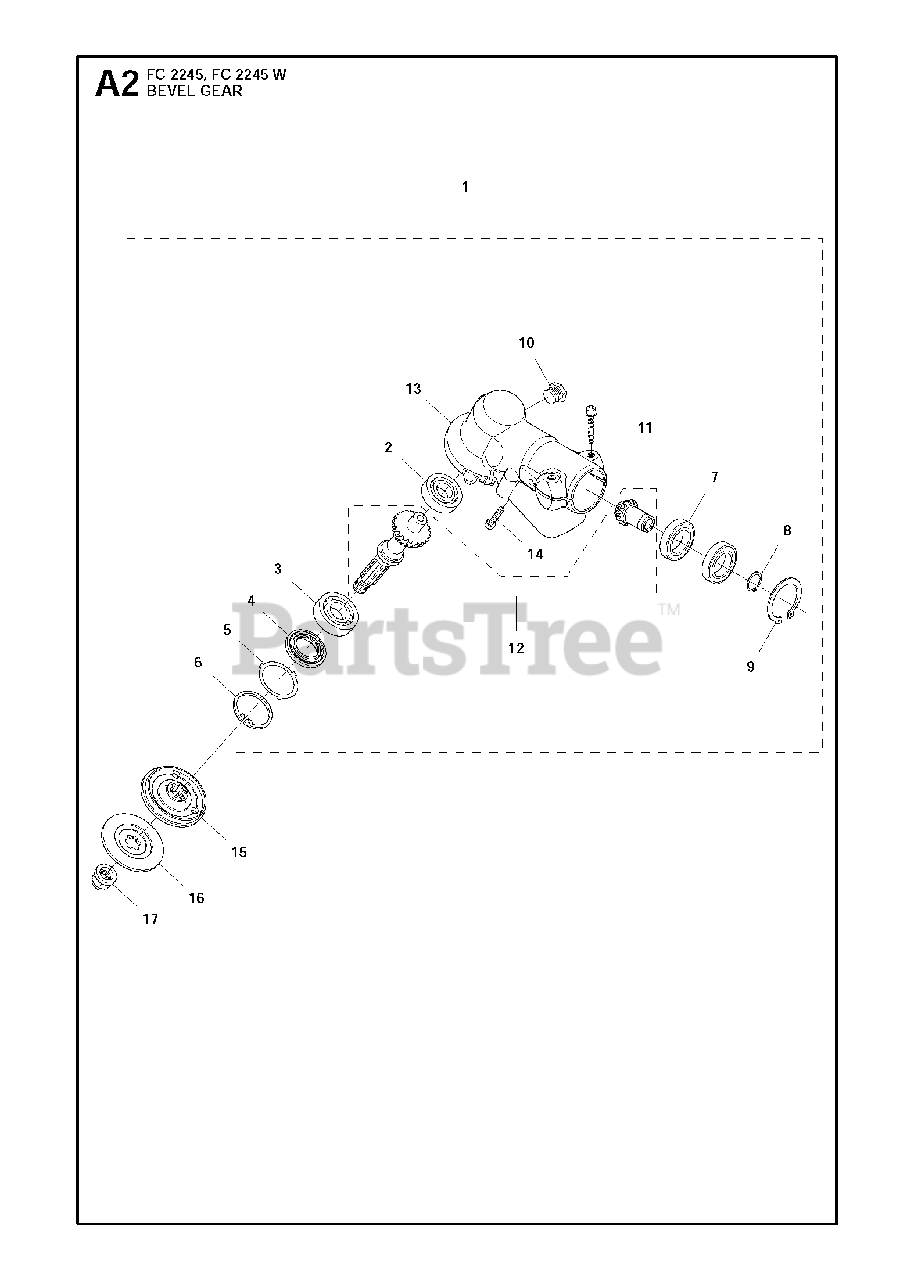

BEVEL GEAR Parts Diagram

  • Title

1

Jonsered 502297801

GEAR HOUSING ASSY
(Superseded to 588163301)

$460.99

$

Usually ships in 3-10 days

0

2

Jonsered 738210110

BALL BEARING

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

3

Jonsered 503250801

BALL BEARING

Note: . 1

$24.99

$

In Stock, Qty 9

0

4

Jonsered 503261701

SEAL

Note: . 1

$13.99

$

In Stock, only 1 left!

0

5

Jonsered 503758901

WASHER

Note: . 1

$2.23

$

In Stock, only 1 left!

0

6

Jonsered 735313310

RETAINING RING SGH 35

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

7

Jonsered 738218712

BALL BEARING

Note: . 1

$31.99

$

Usually ships in 3-10 days

0

8

Jonsered 735311700

RETAINING RING SGA 15

Note: . 1

$3.49

$

In Stock, Qty 7

0

9

Jonsered 735313110

RETAINING RING

Note: . 1

$4.99

$

In Stock, only 3 left!

0

10

Jonsered 503201501

PLUG

Note: . 1

$9.99

$

In Stock, only 1 left!

0

11

Jonsered 503200225

SCREW

Note: . 1

$4.99

$

In Stock, Qty 9

0

12

Jonsered 537290601

SPARE PARTS KIT

Note: . 1

$79.99

$

Usually ships in 3-10 days

0

13

Jonsered 502297901

GEAR HOUSING

Note: . 1

$121.99

$

Usually ships in 3-10 days

0

14

Jonsered 503200316

SCREW

Note: . 1

$6.49

$

In Stock, Qty 20+

0

15

Jonsered 544197801

DRIVER

$37.99

$

Usually ships in 3-10 days

0

16

Jonsered 544217801

SUPPORT FLANGE

$40.99

$

Usually ships in 3-10 days

0

17

Jonsered 502291101

NUT BLADE

$7.99

$

In Stock, only 2 left!

0
