FC 2245 - Jonsered Brushcutter (2011-03) CLUTCH Parts Diagram

Brushcutter

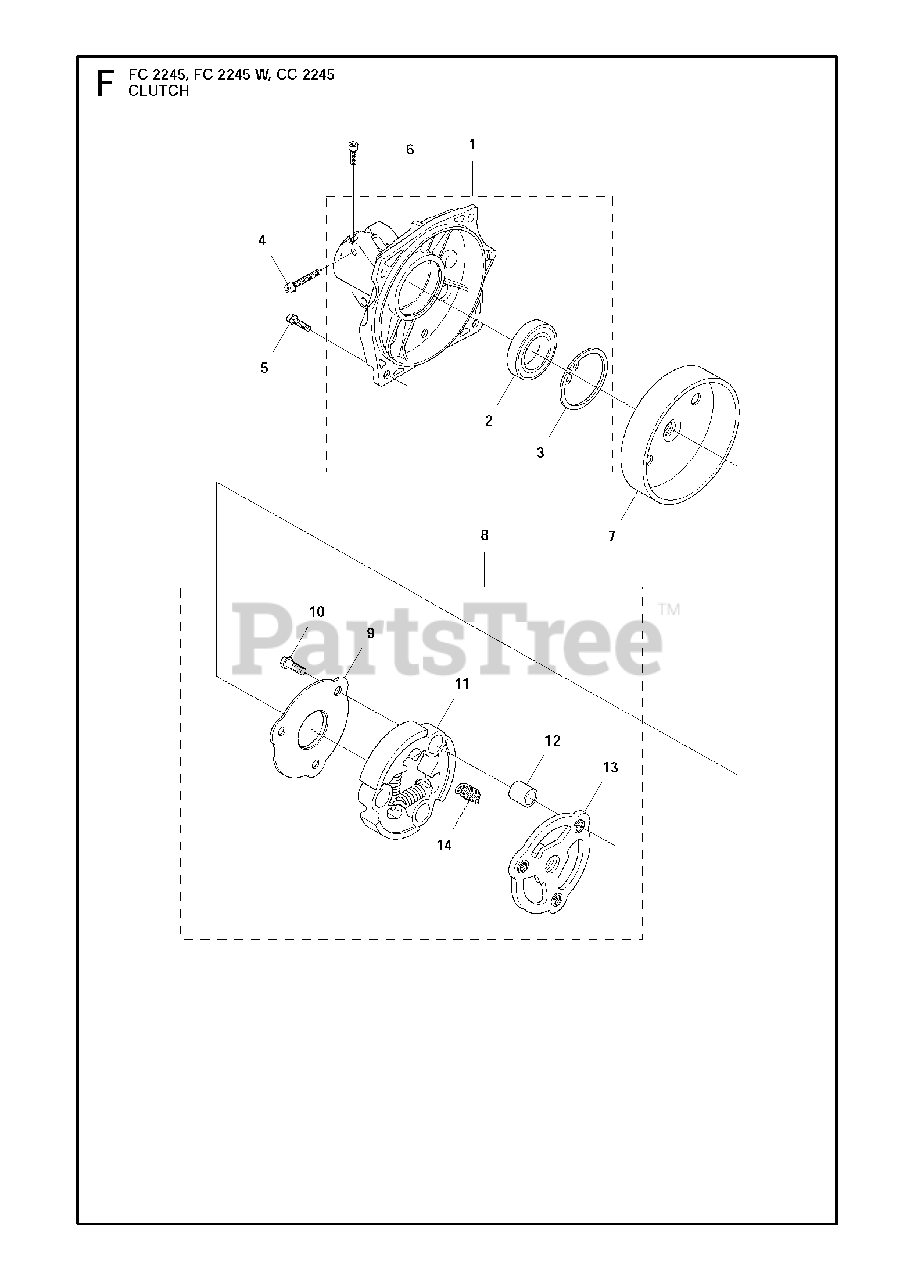

CLUTCH Parts Diagram

  • Title
1

Jonsered 503954103

CLUTCH COVER
(Superseded to 503954104)

$

$

Not available

2

Jonsered 738220219

BALL BEARING 6202-2RS1

Note: . 1

$35.99

$

Usually ships in 3-10 days

0

3

Jonsered 735313310

RETAINING RING SGH 35

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 1 left!

0

5

Jonsered 503200220

No Description Available

$6.49

$

In Stock, Qty 18

0

6

Jonsered 503202001

SCREW MC6LS 5X12

$3.49

$

Usually ships in 3-10 days

0

7

Jonsered 544900701

CLUTCH DRUM ASSM.

$43.99

$

Usually ships in 3-10 days

0

8

Jonsered 503953501

CLUTCH CPL

$

$

Not available

9

Jonsered 537135301

WASHER

Note: . 8

$

$

Not available

10

Jonsered 503201818

SCREW
(Superseded to 503201802)

Note: . 8

$4.99

$

In Stock, only 1 left!

0

11

Jonsered 503953601

CLUTCH

Note: . 8

$10.99

$

Usually ships in 3-10 days

0

12

Jonsered 537135401

BUSHING

Note: . 8

$7.99

$

Usually ships in 3-10 days

0

13

Jonsered 503953701

HUB

Note: . 8

$20.99

$

Usually ships in 3-10 days

0

14

Jonsered 505435301

CLUTCH SPRING

Note: 1 7mm. 8

$

$

Not available
