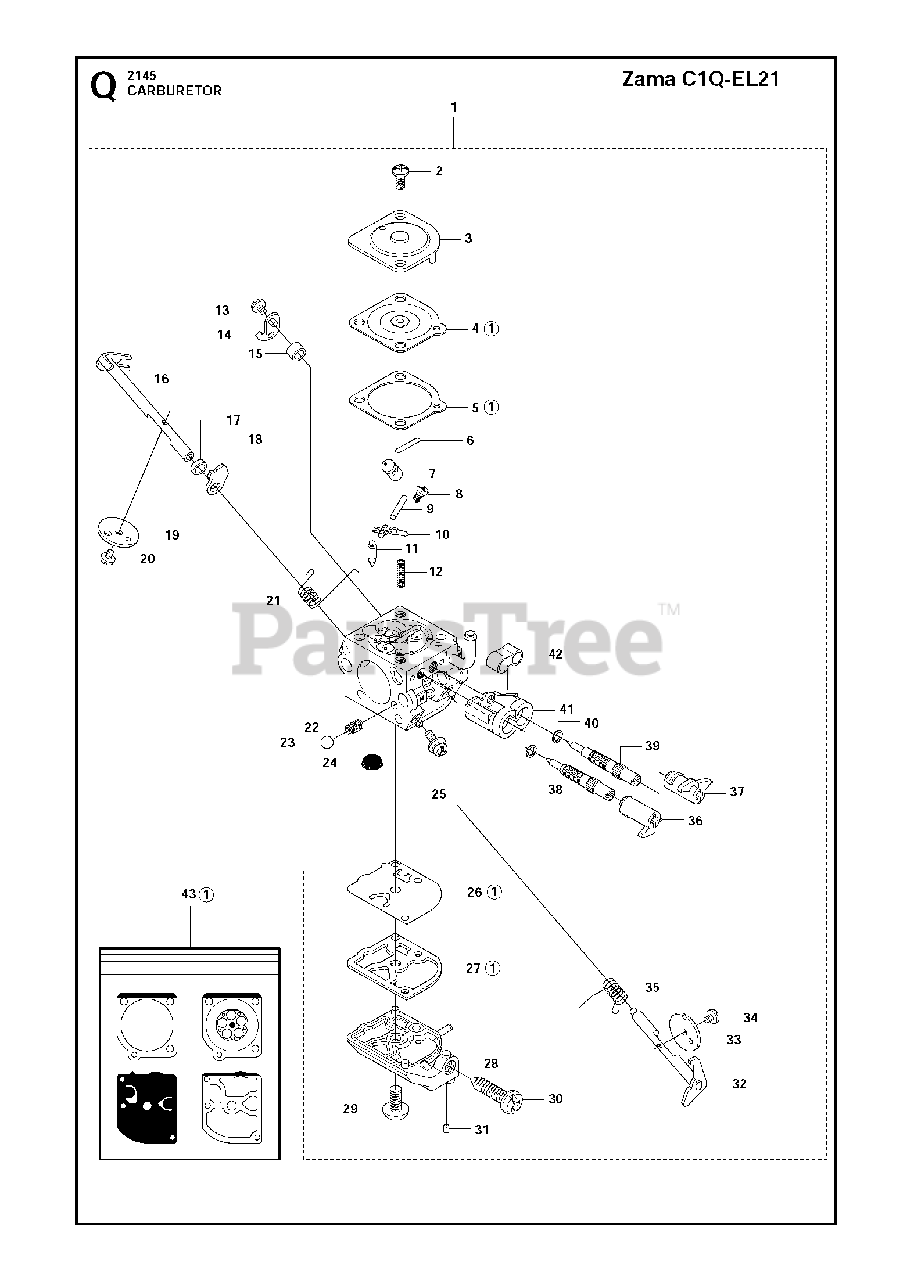

FC 2145 W - Jonsered Brushcutter (2011-02) CARBURETOR Parts Diagram

Brushcutter

CARBURETOR Parts Diagram

  • Title

1

Jonsered 503283116

CARBURETOR

Note: Zama C1Q-EL21

$

$

Not available

2

Jonsered 503480501

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

3

Jonsered 503974301

COVER

Note: . 1

$6.99

$

In Stock, only 1 left!

0

4

Jonsered 503480201

METERING DIAPHRAGM

Note: . 1 43

$13.99

$

Usually ships in 3-10 days

0

5

Jonsered 503480301

GASKET METERING SIDE

Note: . 1 43

$5.99

$

In Stock, only 2 left!

0

6

Jonsered 503535601

PLUG

Note: . 1

$7.49

$

In Stock, Qty 6

0

7

Jonsered 544114901

SPREADER

Note: . 1

$

$

Not available

8

Jonsered 503480101

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

9

Jonsered 503480001

PIN FULCRUM
(Superseded to 537020801)

Note: . 1

$3.49

$

In Stock, only 1 left!

0

10

Jonsered 503665901

LEVER

Note: . 1

$4.99

$

In Stock, only 2 left!

0

11

Jonsered 503479701

INLET NEEDLE

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

12

Jonsered 537020301

SPRING
(Superseded to 537273401)

Note: . 1

$

$

Not available

13

Jonsered 503479001

SCREW

Note: . 1

$3.99

$

In Stock, Qty 8

0

14

Jonsered 537019801

LEVER

Note: . 1

$4.99

$

In Stock, only 1 left!

0

15

Jonsered 503478901

SPACER

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 537020901

CHOKE SHAFT

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

17

Jonsered 503481901

BUSHING *

Note: . 1

$6.99

$

In Stock, only 4 left!

0

18

Jonsered 537049001

LEVER

Note: . 1

$2.23

$

Usually ships in 3-10 days

0

19

Jonsered 537021101

DISC
(Superseded to 537370301)

Note: . 1

$7.99

$

In Stock, only 3 left!

0

20

Jonsered 503481801

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

21

Jonsered 537021001

SPRING

Note: . 1

$3.49

$

In Stock, only 1 left!

0

22

Jonsered 537012601

SPRING

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

23

Jonsered 537012501

BALL

Note: . 1

$3.99

$

In Stock, Qty 6

0

24

Jonsered 503535701

STRAINER

Note: . 1

$4.99

$

In Stock, only 2 left!

0

25

Jonsered 503755301

SCREW *

Note: . 1

$3.49

$

In Stock, only 1 left!

0

26

Jonsered 537020001

PUMP DIAPHRAGM

Note: . 1 43

$9.49

$

In Stock, Qty 5

0

27

Jonsered 537020101

GASKET

Note: . 1 43

$4.99

$

In Stock, Qty 13

0

28

Jonsered 537020201

COVER

Note: . 1

$26.99

$

Usually ships in 3-10 days

0

29

Jonsered 503479601

SCREW

Note: . 1

$3.99

$

In Stock, Qty 5

0

30

Jonsered 537020701

SCREW

Note: . 1

$14.99

$

In Stock, only 1 left!

0

31

Jonsered 503481101

PLUG

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

32

Jonsered 537275401

THROTTLE SHAFT

Note: . 1

$

$

Not available

33

Jonsered 537386801

THROTTLE FLAP

Note: . 1

$5.76

$

Usually ships in 3-10 days

0

34

Jonsered 503479201

SCREW

Note: . 1

$3.99

$

In Stock, only 2 left!

0

35

Jonsered 537287101

SPRING

Note: . 1

$

$

Not available

36

Jonsered 503903301

LIMITER CAP

Note: H. 1

$4.99

$

Usually ships in 3-10 days

0

37

Jonsered 503903201

LIMITER CAP

Note: L. 1

$4.99

$

Usually ships in 3-10 days

0

38

Jonsered 537275601

NEEDLE HIGH SPEED

Note: H. 1

$

$

Not available

39

Jonsered 537275501

NEEDLE LOW SPEED

Note: L. 1

$

$

Not available

40

Jonsered 503974001

WASHER

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

41

Jonsered 503903401

SLEEVE

Note: . 1

$8.49

$

Usually ships in 3-10 days

0

42

Jonsered 537274201

SLEEVE

Note: . 1

$5.76

$

Usually ships in 3-10 days

0

43

Jonsered 537243601

GASKET SET

Note: Gasket Kit

$17.99

$

Usually ships in 3-10 days
