FC 2145 W - Jonsered Brushcutter (2006-01) BEVEL GEAR Parts Diagram

Brushcutter

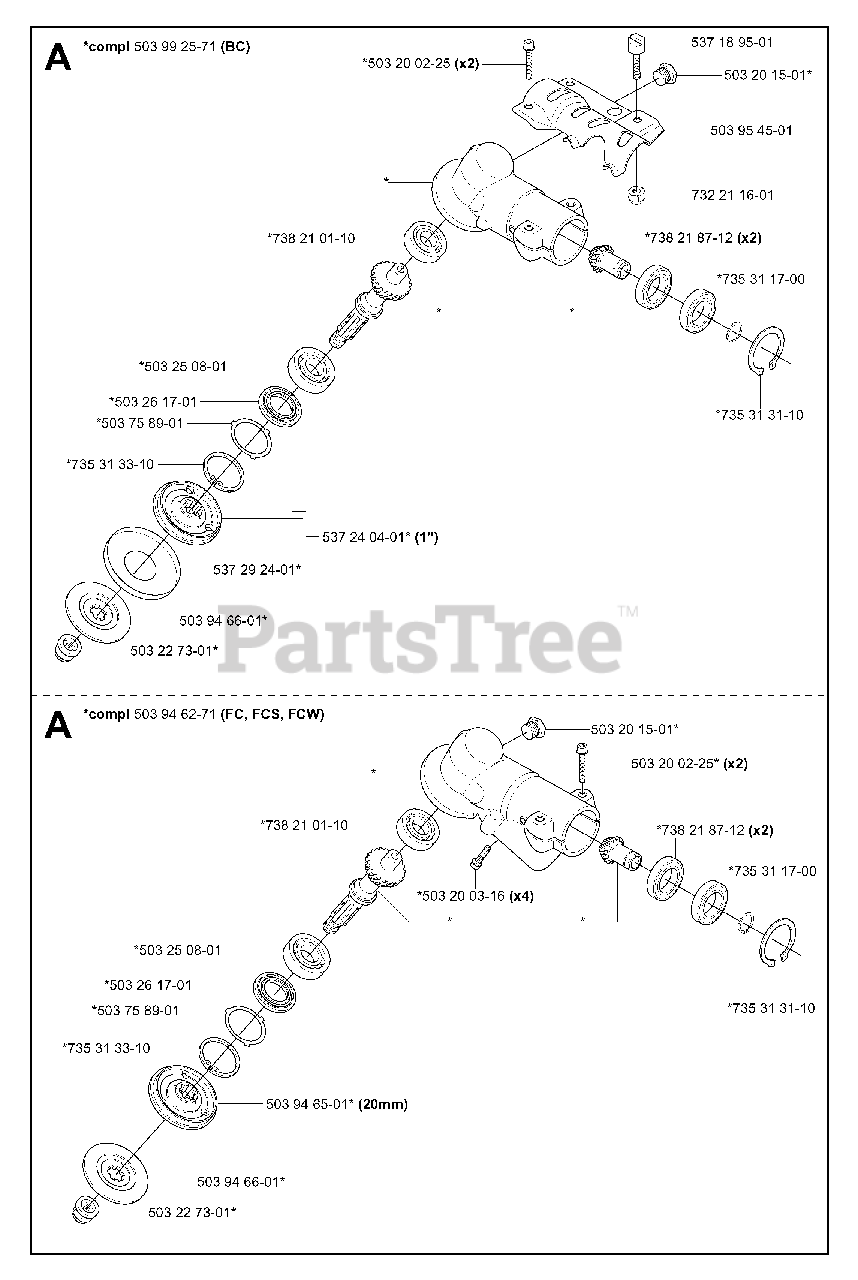

BEVEL GEAR Parts Diagram

  • Title

5032003-16

Jonsered 503200316

SCREW

$6.49

$

In Stock, Qty 20+

0

5039925-71

Jonsered 503992571

BEVEL GEAR
(Superseded to 504103803)

Note: BC

$302.99

$

In Stock, only 1 left!

0

7382101-10

Jonsered 738210110

BALL BEARING

$24.99

$

Usually ships in 3-10 days

0

5032508-01

Jonsered 503250801

BALL BEARING

$24.99

$

In Stock, Qty 9

0

5032617-01

Jonsered 503261701

SEAL

$13.99

$

In Stock, only 1 left!

0

5037589-01

Jonsered 503758901

WASHER

$2.23

$

In Stock, only 1 left!

0

7353133-10

Jonsered 735313310

RETAINING RING SGH 35

$3.49

$

Usually ships in 3-10 days

0

5039462-71

Jonsered 503946271

BEVEL GEAR
(Superseded to 504103503)

$

$

Not available

5032273-01

Jonsered 503227301

BLADE NUT
(Superseded to 502291101)

$7.99

$

In Stock, only 1 left!

0

5039465-01

Jonsered 503946501

CARRIER

$

$

Not available

5039466-01

Jonsered 503946601

FLANGE
(Superseded to 544217801)

$40.99

$

Usually ships in 3-10 days

0

5372924-01

Jonsered 537292401

RP TUBE INSERT
(Superseded to 537240301)

$21.99

$

In Stock, only 1 left!

0

5372404-01

Jonsered 537240401

CARRIER
(Superseded to 537351401)

Note: 1

$53.99

$

In Stock, only 2 left!

0

7353131-10

Jonsered 735313110

RETAINING RING

$4.99

$

In Stock, only 3 left!

0

7353117-00

Jonsered 735311700

RETAINING RING SGA 15

$3.49

$

In Stock, Qty 7

0

7382187-12

Jonsered 738218712

BALL BEARING

$31.99

$

Usually ships in 3-10 days

0

7322116-01

Jonsered 732211601

LOCKNUT M6

$5.99

$

In Stock, only 1 left!

0

5039545-01

Jonsered 503954501

BRACKET
(Superseded to 503954503)

$

$

Not available

5032015-01

Jonsered 503201501

PLUG

$9.99

$

In Stock, only 1 left!

0

5371895-01

Jonsered 537189501

SCREW

$7.49

$

Usually ships in 3-10 days

0

5032002-25

Jonsered 503200225

SCREW

$4.99

$

In Stock, Qty 7

0
