FC 2145 - Jonsered Brushcutter (2010-09) CYLINDER PISTON Parts Diagram

Brushcutter

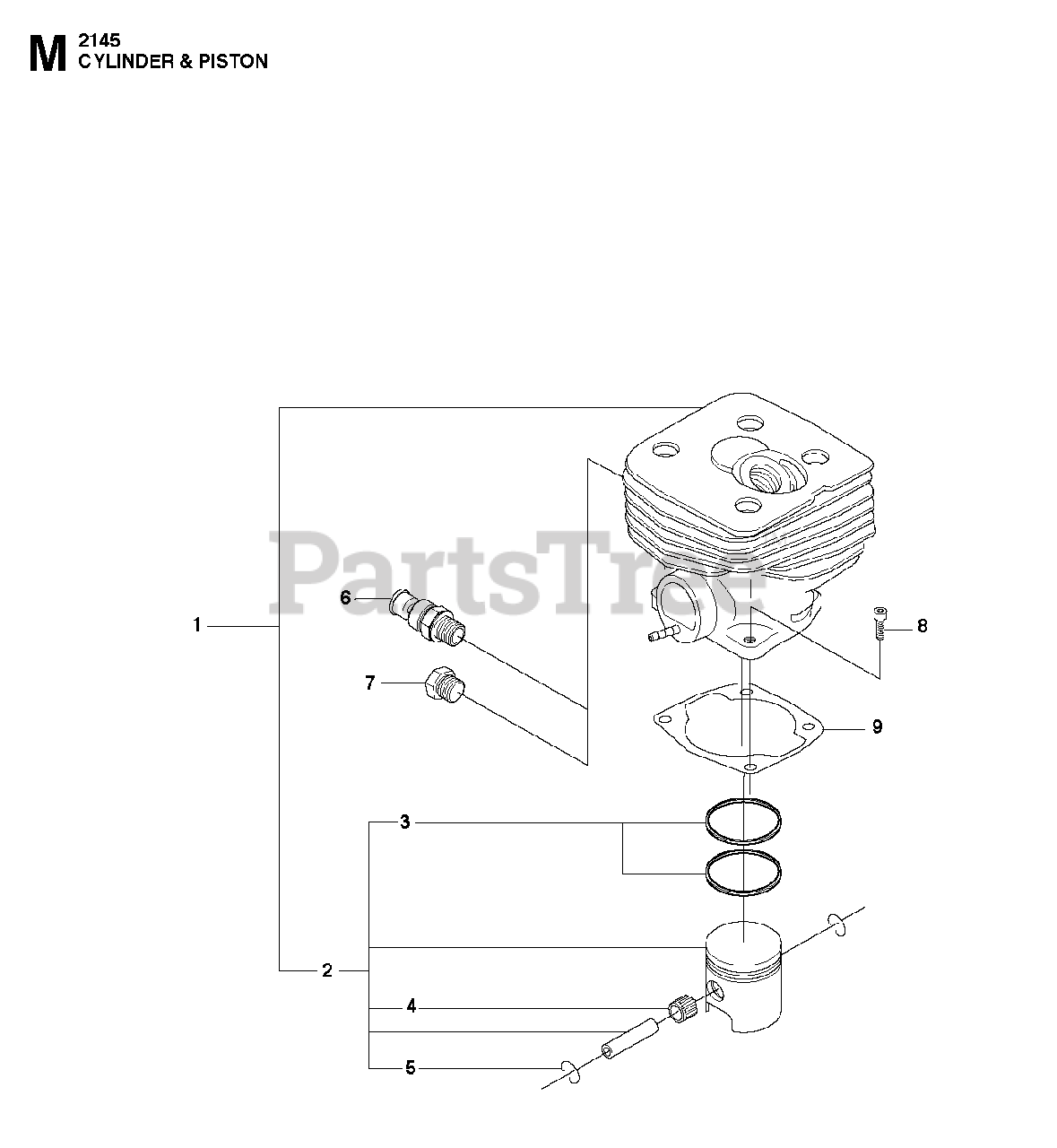

CYLINDER PISTON Parts Diagram

  • Title

1

Jonsered 503956402

CYLINDER
(Superseded to 544328901)

Note: FCS FCW 41mm 43cc

$262.99

$

Usually ships in 3-10 days

0

1

Jonsered 505034804

CYLINDER ASSY

Note: BC FC CC 42mm 45cc

$170.99

$

In Stock, only 1 left!

0

2

Jonsered 537159402

PISTON ASSEMBLY

Note: 41mm 43cc. 1

$96.99

$

Usually ships in 3-10 days

0

2

Jonsered 544093002

RP PISTON ASSY

Note: 42mm 45cc. 1

$129.24

$

Usually ships in 3-10 days

0

3

Jonsered 503289045

PISTON RING

Note: 41. 1 2

$28.99

$

In Stock, only 1 left!

0

3

Jonsered 506449401

PISTON RING

Note: 42. 1 2

$

$

Not available

4

Jonsered 501451601

RP SUPPORT BUSHING
(Superseded to 503256301)

Note: . 1 2

$24.99

$

In Stock, only 1 left!

0

5

Jonsered 737441000

LOCKING RING

Note: . 1 2

$6.49

$

Usually ships in 3-10 days

0

6

Jonsered 503665401

DECOMPRESSION VALVE
(Superseded to 544200001)

Note: BC CC FCS FCW

$66.99

$

In Stock, only 2 left!

0

7

Jonsered 503552201

CYLINDER PLUG

Note: FC

$13.99

$

In Stock, only 2 left!

0

8

Jonsered 725533155

SCREW MC6S 5X20

$2.49

$

Usually ships in 3-10 days

0

9

Jonsered 503952701

GASKET
(Superseded to 502438001)

$4.99

$

In Stock, only 2 left!

0
