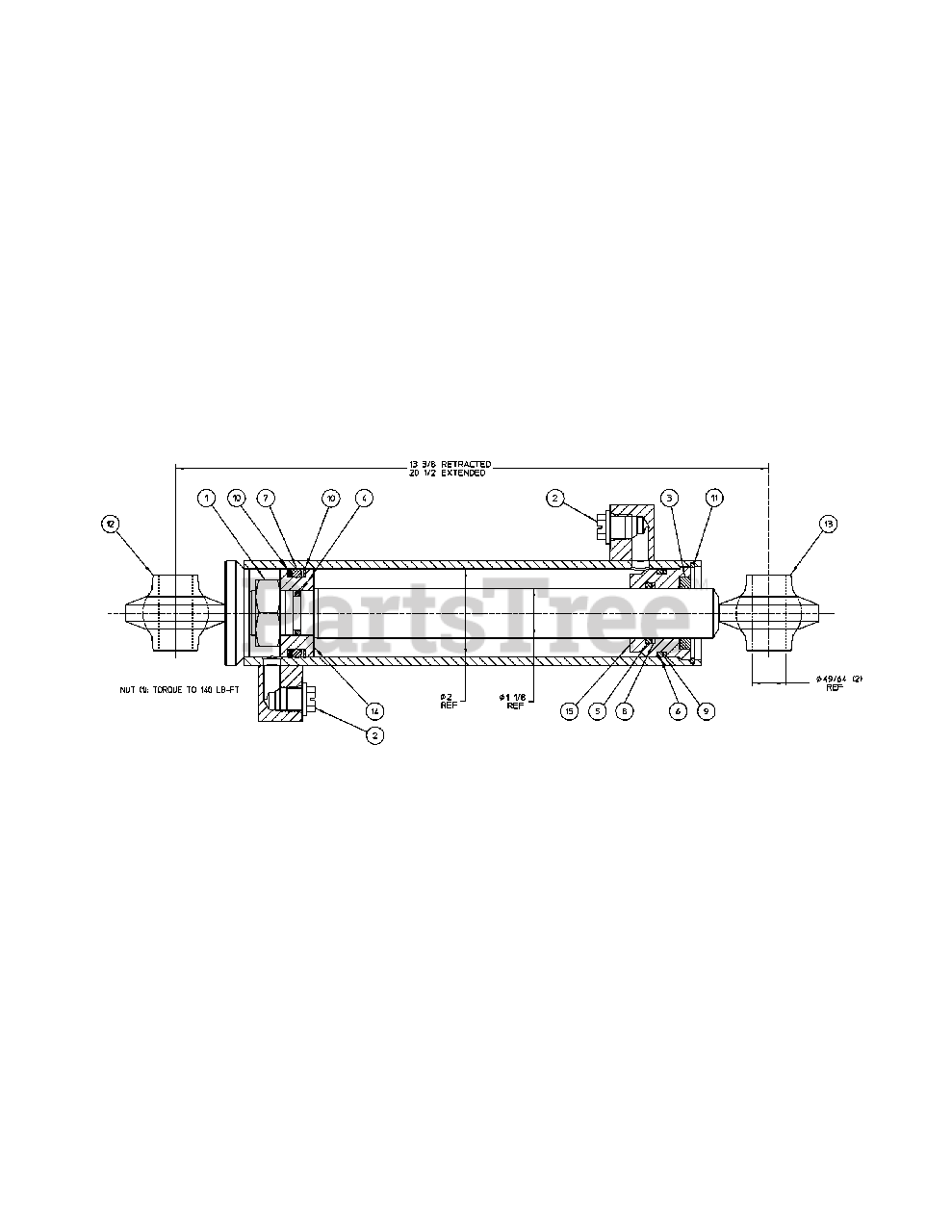

FBSX 66 (59A40140727) - Cub Cadet Yanmar Tractor Front Blade Attachment Angle Cylinder Parts Diagram

Tractor Front Blade Attachment

Angle Cylinder Parts Diagram

  • Title

1

Cub Cadet YS-007712

Nut, Hex 1-14 Lock

$

$

Not available

2

Cub Cadet N/A

Cap Plug, 9/16-18 Thread with O-Ring

$

$

Currently unavailable

3

Cub Cadet N/A

Oil Seal

$

$

Currently unavailable

4

Cub Cadet N/A

O-Ring, 1" OD x 3/4 ID

$

$

Currently unavailable

5

Cub Cadet N/A

O-Ring, 1-3/8 OD x 1-1/8 ID

$

$

Currently unavailable

6

Cub Cadet N/A

O-Ring, 2" OD x 1-3/4 ID

$

$

Currently unavailable

7

Cub Cadet N/A

O-Ring, 2" OD x 1-5/8 ID

$

$

Currently unavailable

8

Cub Cadet N/A

Leather Washer

$

$

Currently unavailable

9

Cub Cadet N/A

Back Up Ring

$

$

Currently unavailable

10

Cub Cadet N/A

Back Up Ring

$

$

Currently unavailable

11

Cub Cadet N/A

Retaining Ring

$

$

Currently unavailable

12

Cub Cadet N/A

Cylinder Tube Weldment

$

$

Currently unavailable

13

Cub Cadet YS-903970

Piston Rod Weldment

$

$

Not available

14

Cub Cadet YS-904231

Piston

$

$

Not available

15

Cub Cadet YS-904232

Gland

$

$

Not available

Cub Cadet YS-904260

Seal Repair Kit (Incl.1-11)

Note: Not shown

$

$

Not available

Cub Cadet YS-000256

Complete Hydraulic Cylinder

Note: Not shown

$

$

Not available
