FB460V-HS14 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

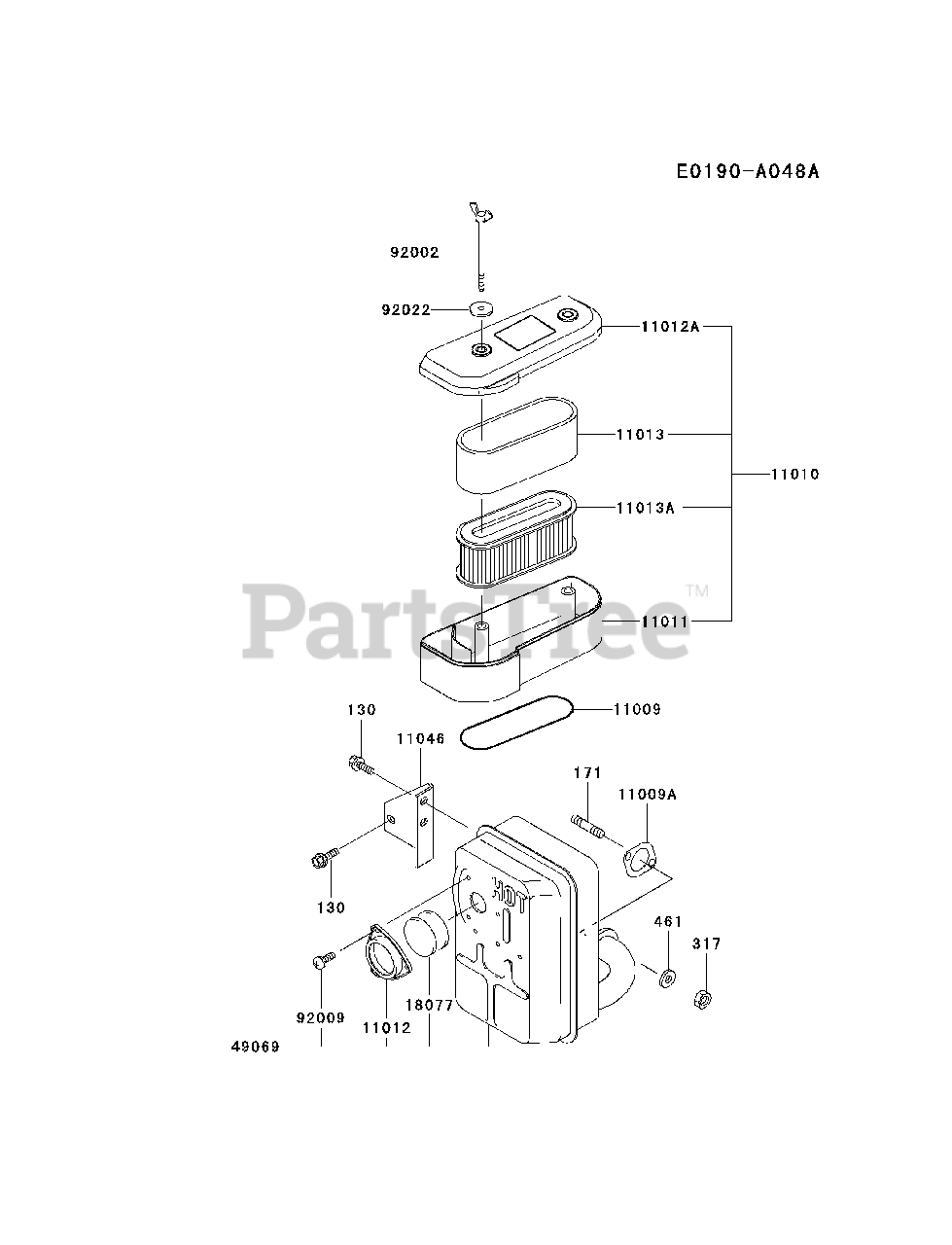

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11009

Kawasaki 11009-2443

GASKET,AIR FILTER
(Superseded to 11009-2340)

$2.99

$

In Stock, only 1 left!

0

11009A

Kawasaki 11009-2527

GASKET,MUFFLER
(Superseded to 11060-2379)

$

$

Not available

11010

Kawasaki 11010-2291

FILTER-ASSY-AIR

$

$

Not available

11011

Kawasaki 11011-2174

CASE-AIR FILTER

$

$

Not available

11012

Kawasaki 11012-2165-9Y

CAP,SPARK ARRESTER
(Superseded to 11012-2251-9Y)

$

$

Not available

11012A

Kawasaki 11012-2192

CAP,AIR FILTER

$

$

Not available

11013

Kawasaki 11013-2020

ELEMENT-AIR FILTER

$3.99

$

In Stock, Qty 12

0

11013A

Kawasaki 11013-2021

ELEMENT-AIR FILTER

$20.99

$

In Stock, Qty 11

0

11046

Kawasaki 11046-2163-9Y

BRACKET
(Superseded to 11046-2163)

$

$

Not available

18077

Kawasaki 18077-2052

ARRESTER-SPARK

$

$

Not available

49069

Kawasaki 49069-2210-9Y

MUFFLER-ASSY

$

$

Not available

92002

$3.99

$

In Stock, only 2 left!

0

92009

$0.99

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2220

WASHER
(Superseded to 92200-0423)

$

$

Not available

130

Kawasaki 130G0812

BOLT-FLANGED
(Superseded to 130BA0812)

$1.49

$

In Stock, only 4 left!

0

171

Kawasaki 171G0818

BOLT-STUD
(Superseded to 171BA0818)

$1.99

$

In Stock, only 2 left!

0

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
