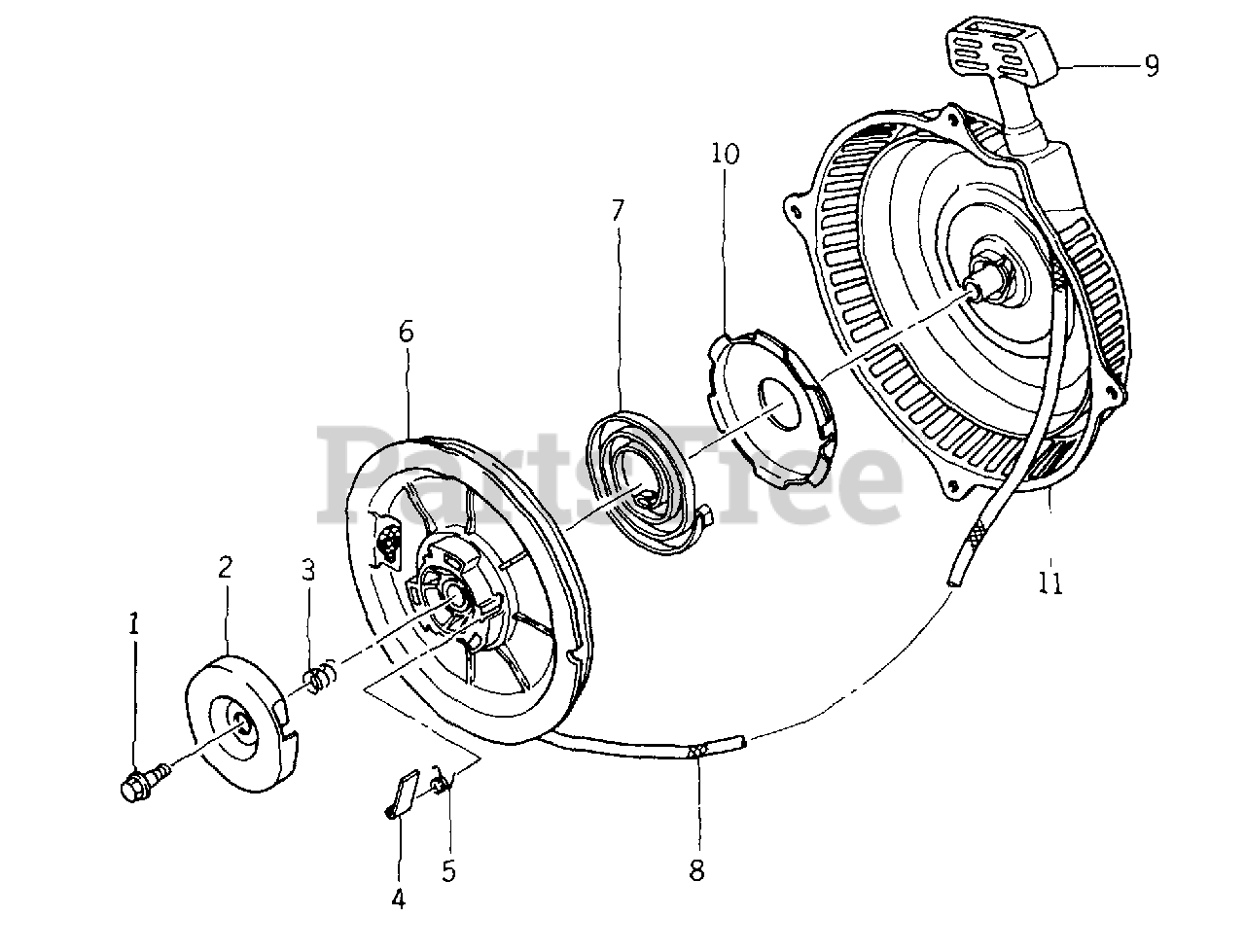

FB460V-HS01 - Kawasaki Engine Recoil Starter Parts Diagram

Engine

Recoil Starter Parts Diagram

  • Title

Kawasaki 49088-2212-YK

RECOIL STARTER ASSY

$175.99

$

In Stock, only 4 left!

0

1

Kawasaki 314501-3447A

BOLT
(Superseded to 92001-2027)

$2.99

$

In Stock, only 3 left!

0

2

$

$

Not available

3

Kawasaki 92081-2268

SPRING, return

$

$

Not available

4

Kawasaki 13165-2057

PAWL
(Superseded to 13165-2073)

$5.49

$

In Stock, only 2 left!

0

5

Kawasaki 314401-3444A

SPRING, return
(Superseded to 92081-2021)

$1.99

$

In Stock, Qty 12

0

6

Kawasaki 59101-2054

REEL, recoil

$

$

Not available

7

Kawasaki 92081-2267

SPRING, recoil

$34.99

$

Usually ships in 2-5 days

0

8

Kawasaki 59106-2060

ROPE (6x1380)

$

$

Not available

9

Kawasaki 46075-2059

GRIP
(Superseded to 46075-2016)

$7.49

$

Usually ships in 2-5 days

0

10

Kawasaki 32099-2060

CASE, spring

$7.99

$

In Stock, only 4 left!

0

11

Kawasaki 32099-2059-YK

CASE, recoil
(Superseded to 32099-2059-9B)

$

$

Not available
