FB460V-GS01 - Kawasaki Engine Carburetor Parts Diagram

Engine

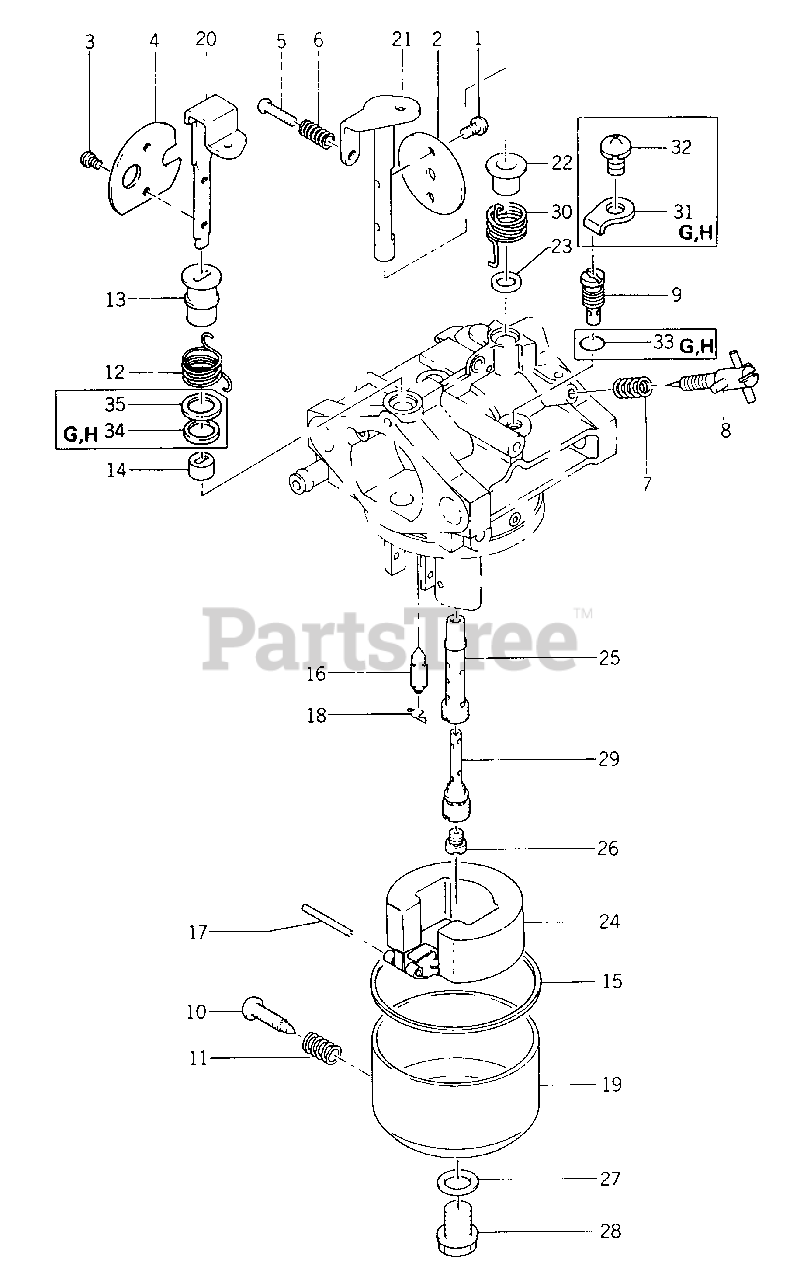

Carburetor Parts Diagram

  • Title

Kawasaki 15001-2721

CARBURETOR ASSY
(Superseded to 15003-2183)

$

$

Not available

1

Kawasaki 316550-6137A

SCREW
(Superseded to 92009-2080)

$

$

Not available

2

Kawasaki 16025-2114

VALVE, throttle (#100)

$

$

Not available

VALVE, throttle (#140)

Note: (Not used on this model)

$

$

Not available

3

Kawasaki 314572-6137A

SCREW
(Superseded to 92009-2081)

$1.99

$

In Stock, only 1 left!

0

4

Kawasaki 16126-2105

VALVE, choke

$3.99

$

Usually ships in 2-5 days

0

$0.99

$

In Stock, only 4 left!

0

6

Kawasaki 313650-6108-00

SPRING
(Superseded to 92081-2046)

$

$

Not available

7

Kawasaki 312750-6116-00

SPRING
(Superseded to 92081-2008)

$2.99

$

In Stock, only 3 left!

0

8

Kawasaki 16014-2055

SCREW, adjuster

$

$

Not available

9

Kawasaki 92064-2062

JET, pilot (#47.5)

$

$

Not available

JET, pilot (#60)

Note: (Not used on this model)

$

$

Not available

10

Kawasaki 315470-6133A

SCREW, drain
(Superseded to 92009-2015)

$5.49

$

Usually ships in 2-5 days

0

11

Kawasaki 313122-6116-00

SPRING
(Superseded to 92081-2009)

$3.49

$

In Stock, only 3 left!

0

$

$

Not available

13

Kawasaki 92143-2007

RING
(Superseded to 92143-2142)

$

$

Not available

14

Kawasaki 314598-6138A

RING
(Superseded to 92027-2003)

$3.99

$

Usually ships in 2-5 days

0

15

Kawasaki 313650-6128-00

GASKET
(Superseded to 11009-2024)

$4.49

$

In Stock, Qty 20+

0

16

Kawasaki 16030-2073

VALVE, needle

$25.99

$

In Stock, Qty 8

0

17

Kawasaki 314499-6127A

PIN, float
(Superseded to 92043-2006)

$3.49

$

In Stock, only 1 left!

0

18

Kawasaki 315721-6134A

CLIP
(Superseded to 92033-2067)

$5.49

$

In Stock, only 3 left!

0

19

Kawasaki 16020-2094

CHAMBER, float
(Superseded to 16020-2109)

$47.99

$

Usually ships in 2-5 days

0

20

Kawasaki 16041-2010

SHAFT, choke

$

$

Not available

21

Kawasaki 16041-2009

SHAFT, throttle

$29.99

$

In Stock, only 1 left!

0

$3.99

$

Usually ships in 2-5 days

0

23

Kawasaki 316626-6206A

SEAL
(Superseded to 92093-2002)

$1.99

$

In Stock, Qty 5

0

$29.99

$

In Stock, Qty 8

0

25

Kawasaki 49121-2077

NOZZLE, main (#6A)

$

$

Not available

NOZZLE, main (#13A)

Note: (Not used on this model)

$

$

Not available

26

Kawasaki 92063-2010

JET, main (#112.5)

$

$

Not available

JET, main (#115)

Note: (Not used on this model)

$

$

Not available

27

Kawasaki 318190-6159-00

WASHER
(Superseded to 11009-2025)

$2.49

$

In Stock, Qty 15

0

28

Kawasaki 314486-6143A

BOLT
(Superseded to 92002-2009)

$10.99

$

Usually ships in 2-5 days

0

29

Kawasaki 49123-2058

PIPE, bleed

$

$

Not available

$8.99

$

In Stock, only 1 left!

0

$3.99

$

In Stock, only 4 left!

0

$1.99

$

In Stock, only 1 left!

0

33

$1.99

$

In Stock, Qty 9

0

$1.49

$

In Stock, only 3 left!

0

$1.49

$

Usually ships in 2-5 days

0
