FB460V-CS12 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

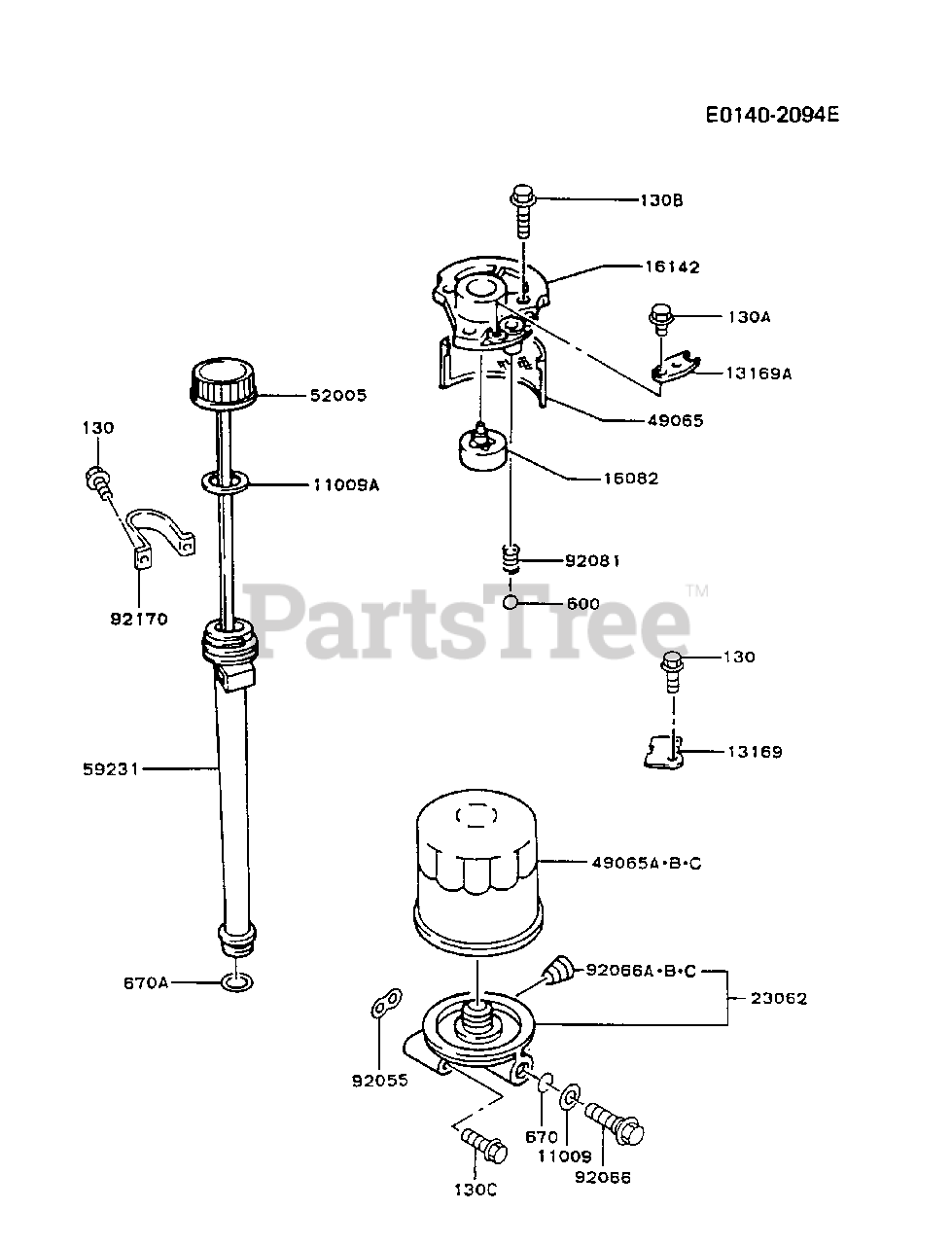

LUBRICATION-EQUIPMENT Parts Diagram

  • Title
11009

Kawasaki 11009-2175

GASKET
(Superseded to 317370-7883-00)

$1.99

$

In Stock, Qty 15

0

11009A

Kawasaki 11009-2346

GASKET,OIL GAUGE
(Superseded to M88482)

$2.49

$

In Stock, Qty 6

0

13169

$

$

Not available

13169A

Kawasaki 13169-2360

PLATE
(Superseded to 13270-2054)

$0.99

$

Usually ships in 2-5 days

0

16082

Kawasaki 16082-2057

PUMP-ASSY-OIL

$

$

Not available

16142

Kawasaki 16142-6001

COVER-PUMP

$

$

Not available

23062

Kawasaki 23062-6001

BRACKET-COMP

$

$

Not available

49065

Kawasaki 49065-2056

FILTER-OIL

$

$

Not available

49065A

Kawasaki 49065-2057

FILTER-OIL
(Superseded to 49065-2071)

$15.99

$

In Stock, Qty 20+

0

49065C

Kawasaki 49065-2071

FILTER-OIL

$15.99

$

In Stock, Qty 20+

0

52005

$

$

Not available

59231

$

$

Not available

92055

$4.49

$

In Stock, Qty 12

0

92066

$

$

Not available

92066A

$

$

Not available

92066C

$2.99

$

Usually ships in 2-5 days

0

92081

$0.99

$

Usually ships in 2-5 days

0

$

$

Not available

130

Kawasaki 130B0508

BOLT-FLANGED
(Superseded to 130AA0508)

$0.99

$

In Stock, Qty 8

0

130A

Kawasaki 130B0610

BOLT-FLANGED
(Superseded to 130AA0610)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130G0825

BOLT-FLANGED
(Superseded to 130BA0825)

$5.99

$

In Stock, Qty 5

0

130C

Kawasaki 130G0845

BOLT-FLANGED
(Superseded to 130BA0845)

$1.99

$

In Stock, Qty 13

0

600

Kawasaki 600A1000

BALL-STEEL

$0.99

$

In Stock, Qty 7

0

670

Kawasaki 670D1507

O RING
(Superseded to 92055-0847)

$1.99

$

In Stock, only 1 left!

0

670A

Kawasaki 670D2016

O RING
(Superseded to M88478)

$1.99

$

In Stock, Qty 20+

0
