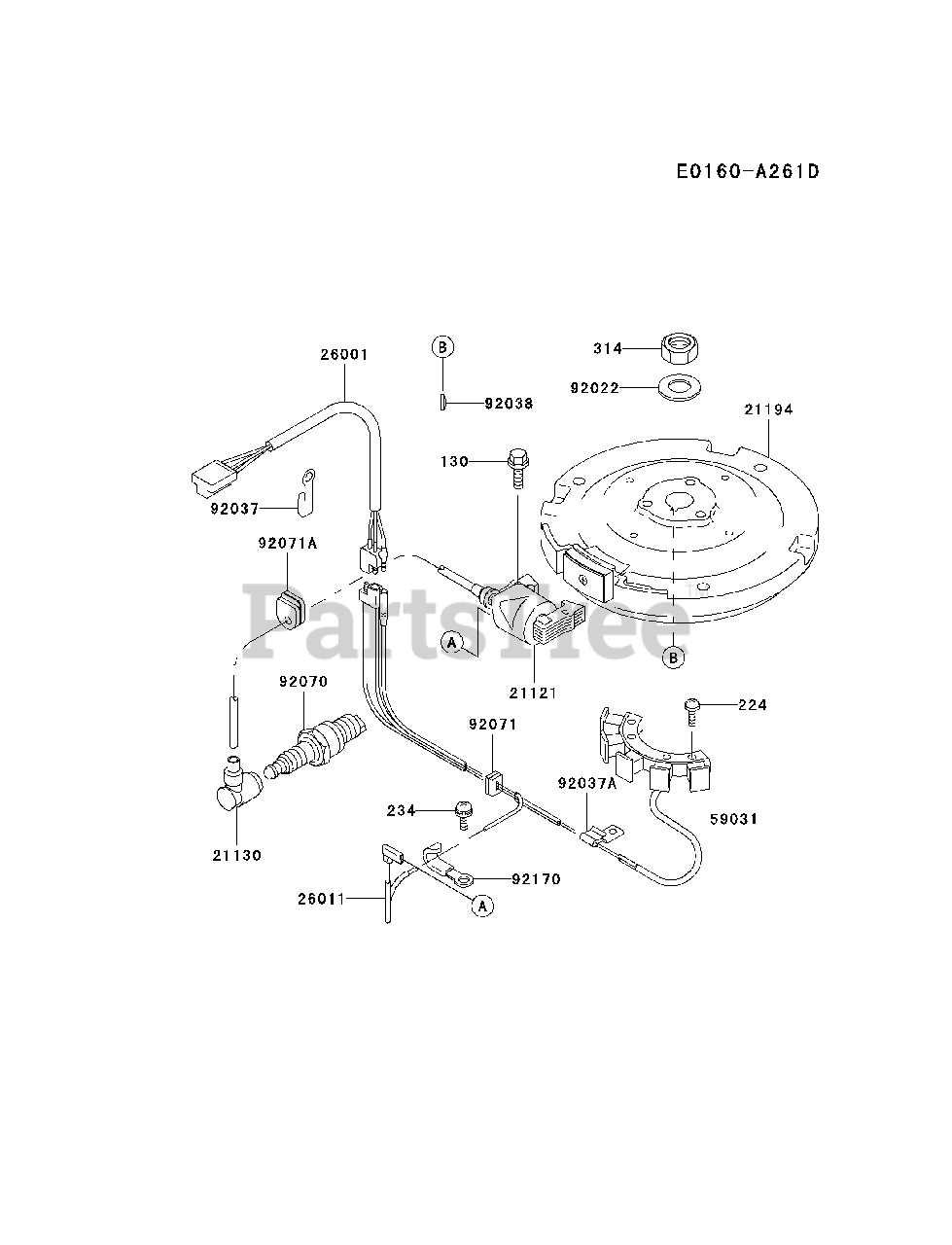

FB460V-AS38 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21121

Kawasaki 21121-2086

COIL-IGNITION

$108.99

$

In Stock, only 1 left!

0

21130

Kawasaki 21130-2060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, Qty 8

0

21194

Kawasaki 21194-2323

FLYWHEEL-COMP

$

$

Not available

26001

Kawasaki 26001-2113

HARNESS

$

$

Not available

26011

Kawasaki 26011-2329

WIRE-LEAD,L=180
(Superseded to 26011-2312)

$3.99

$

Usually ships in 2-5 days

0

59031

Kawasaki 59031-2106

COIL-CHARGING

$

$

Not available

92022

Kawasaki 92022-2178

WASHER

$2.99

$

Usually ships in 2-5 days

0

92037

Kawasaki 92037-2063

CLAMP

$0.99

$

Usually ships in 2-5 days

0

92037A

Kawasaki 92037-2158

CLAMP

$

$

Not available

92038

Kawasaki 92038-2094

KEY

$2.49

$

In Stock, only 2 left!

0

92070

Kawasaki 92070-2105

PLUG-SPARK,BMR4A,SOLID
(Superseded to 4004)

Note: NGK

$3.99

$

In Stock, Qty 11

0

92071

Kawasaki 92071-2099

GROMMET

$

$

Not available

92071A

Kawasaki 92071-2100

GROMMET

$1.99

$

In Stock, only 1 left!

0

92170

Kawasaki 92170-2029

CLAMP

$6.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0520

BOLT-FLANGED
(Superseded to 130AA0520)

$0.99

$

In Stock, Qty 12

0

224

Kawasaki 224B0620

SCREW-PAN-WP-CROS
(Superseded to 224AA0620)

$0.99

$

In Stock, only 2 left!

0

234

Kawasaki 234B0408

SCREW-PAN-WSP+-
(Superseded to 234AA0408)

$0.99

$

In Stock, Qty 5

0

314

Kawasaki 314G1800

NUT-HEX-FINE

$2.49

$

In Stock, only 2 left!

0
