FB460V-AS37 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

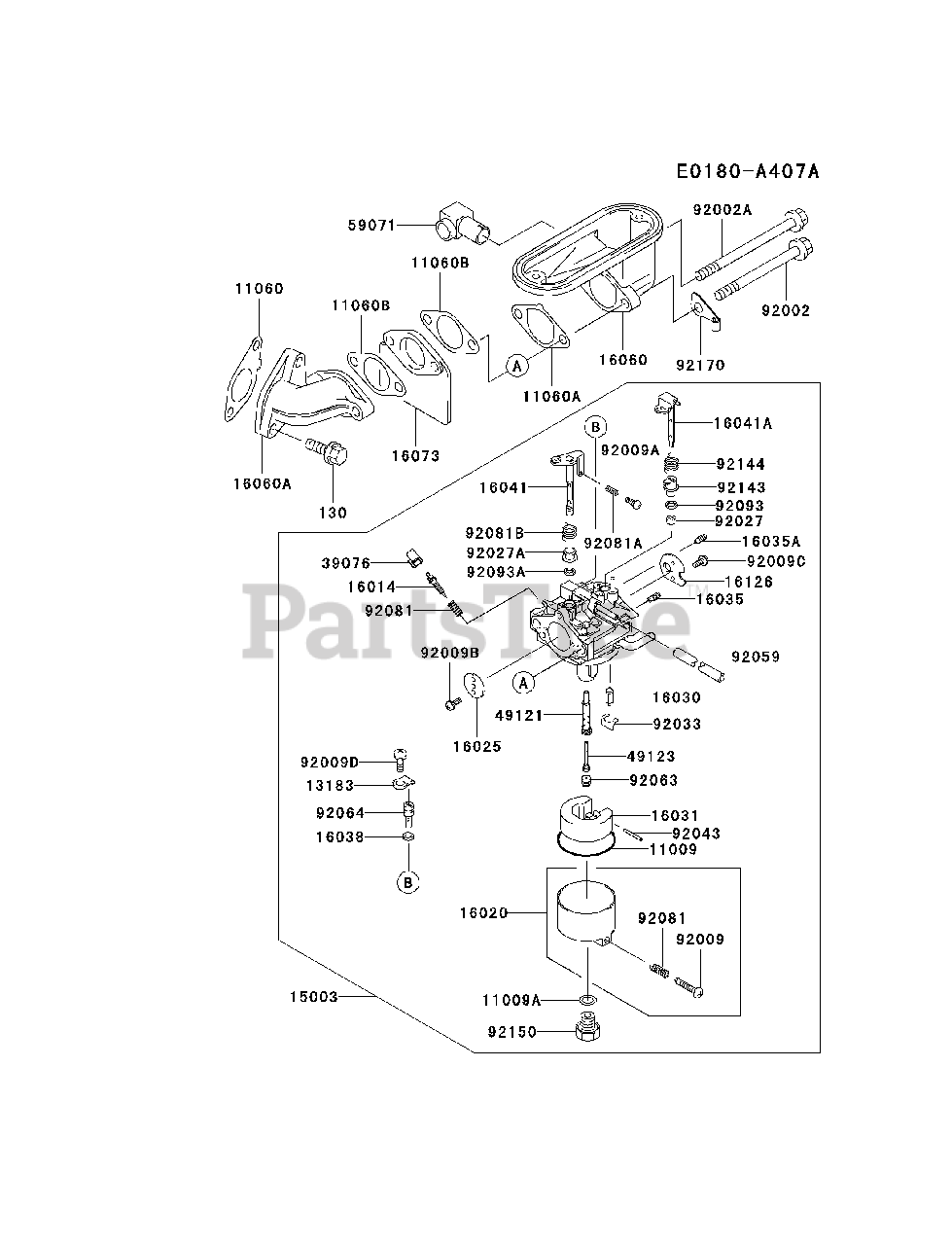

CARBURETOR Parts Diagram

  • Title
11009

Kawasaki 11009-2024

GASKET
(Superseded to 313650-6128-00)

$4.49

$

In Stock, Qty 20+

0

11009A

Kawasaki 11009-2025

GASKET
(Superseded to 11009-2087)

$2.49

$

In Stock, Qty 15

0

11060

Kawasaki 11060-2337

GASKET,INTAKE PIPE
(Superseded to 11009-2342)

$

$

Not available

11060A

Kawasaki 11060-2338

GASKET,INTAKE PIPE
(Superseded to 11009-2344)

$0.99

$

In Stock, only 4 left!

0

11060B

Kawasaki 11060-2339

GASKET,CARBURETOR
(Superseded to 11009-2343)

$1.49

$

In Stock, Qty 20+

0

13183

$3.99

$

In Stock, only 4 left!

0

15003

Kawasaki 15003-2467

CARBURETOR-ASSY
(Superseded to 15003-2777)

$299.99

$

Usually ships in 2-5 days

0

16014

Kawasaki 16014-2076

SCREW-PILOT AIR

$15.99

$

Usually ships in 2-5 days

0

16020

Kawasaki 16020-2109

CHAMBER-FLOAT
(Superseded to 16020-2094)

$47.99

$

Usually ships in 2-5 days

0

16025

Kawasaki 16025-2141

VALVE-THROTTLE,#110

$8.99

$

Usually ships in 2-5 days

0

16030

Kawasaki 16030-2073

VALVE-FLOAT

$25.99

$

In Stock, Qty 8

0

16031

$29.99

$

In Stock, Qty 8

0

16035

Kawasaki 16035-2051

JET-AIR,#1.4
(Superseded to 313550-6113-10)

$10.99

$

Usually ships in 2-5 days

0

16035A

Kawasaki 16035-2063

JET-AIR,#0.9

$13.99

$

Usually ships in 2-5 days

0

16038

$1.99

$

In Stock, Qty 9

0

16041

Kawasaki 16041-2009

SHAFT-CARBURETOR,THROTTL

$29.99

$

In Stock, only 1 left!

0

16041A

Kawasaki 16041-2010

SHAFT-CARBURETOR,CHOKE

$

$

Not available

16060

Kawasaki 16060-2108

PIPE-INTAKE

$

$

Not available

16060A

Kawasaki 16060-2109

PIPE-INTAKE
(Superseded to M88502)

$

$

Not available

16073

$

$

Not available

16126

$17.99

$

In Stock, only 1 left!

0

39076

$6.99

$

In Stock, only 1 left!

0

49121

Kawasaki 49121-2207

NOZZLE-MAIN,#98A

$

$

Not available

49123

Kawasaki 49123-2078

HOLDER-MAIN JET

$

$

Not available

59071

$

$

Not available

92002

$

$

Not available

92002A

Kawasaki 92002-2254

BOLT,8X110

$1.99

$

In Stock, only 4 left!

0

92009

Kawasaki 92009-2015

SCREW
(Superseded to 315470-6133A)

$5.49

$

Usually ships in 2-5 days

0

92009A

$0.99

$

In Stock, only 4 left!

0

92009B

Kawasaki 92009-2080

SCREW
(Superseded to 92009-3710)

$

$

Not available

92009C

Kawasaki 92009-2081

SCREW
(Superseded to 92009-2026)

$1.99

$

In Stock, only 1 left!

0

92009D

$1.99

$

In Stock, only 1 left!

0

92027

$3.99

$

Usually ships in 2-5 days

0

92027A

$3.99

$

Usually ships in 2-5 days

0

92033

$5.49

$

In Stock, only 3 left!

0

$3.49

$

In Stock, only 1 left!

0

92059

Kawasaki 92059-2266

TUBE,3X5X110
(Superseded to 99916-2065)

$7.49

$

In Stock, only 1 left!

0

92063

Kawasaki 92063-2294

JET-MAIN,#97.5

$

$

Not available

92064

Kawasaki 92064-2108

JET-PILOT,#62.5

$

$

Not available

92081

$3.49

$

In Stock, only 3 left!

0
