FB460V-AS32 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

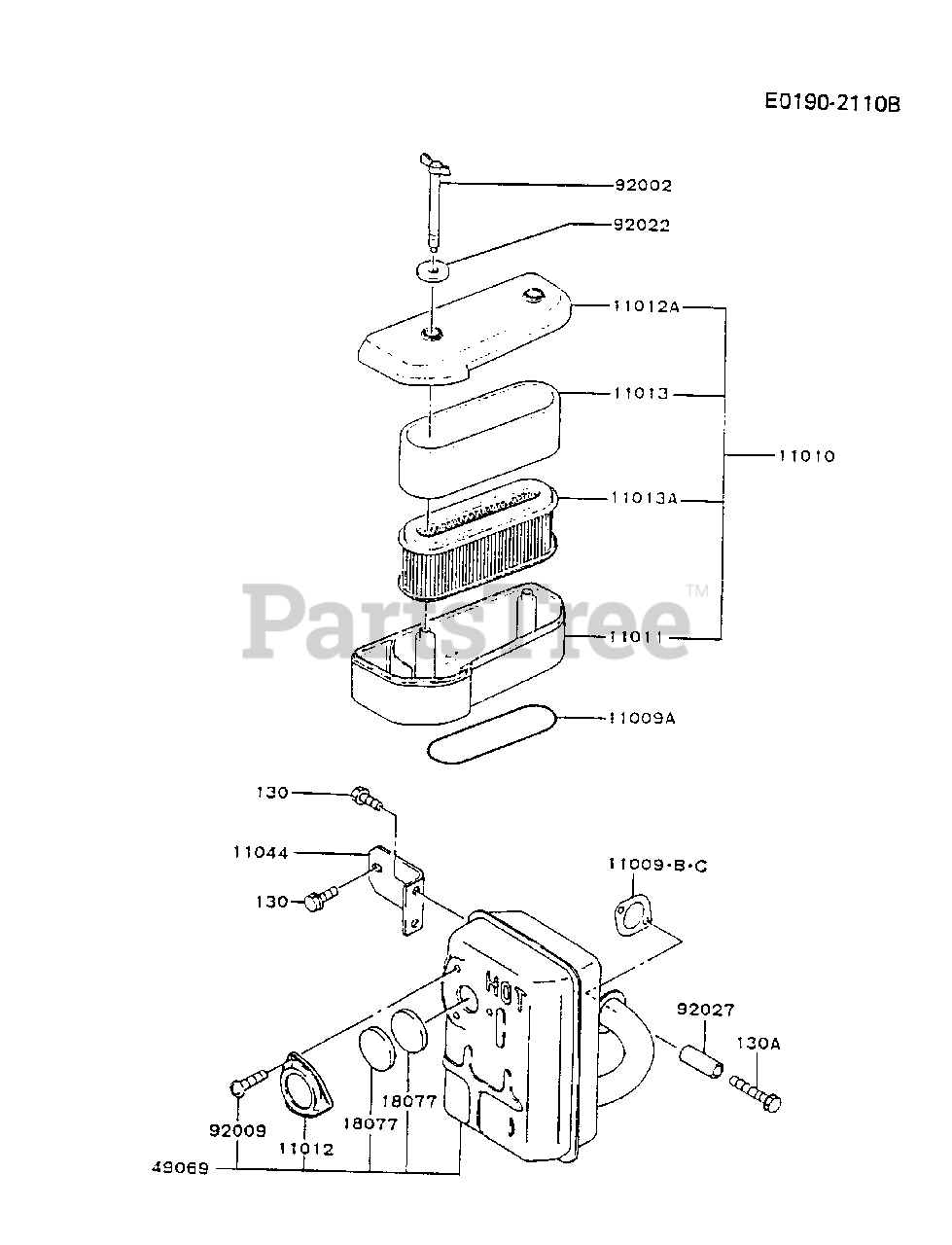

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11009

Kawasaki 11009-2378

GASKET,MUFFLER
(Superseded to 11009-2527)

$

$

Not available

11009A

Kawasaki 11009-2443

GASKET,AIR FILTER
(Superseded to 11009-2340)

$2.99

$

In Stock, only 1 left!

0

11009C

Kawasaki 11009-2527

GASKET,MUFFLER
(Superseded to 11060-2379)

$

$

Not available

11010

Kawasaki 11010-2291

FILTER-ASSY-AIR

$

$

Not available

11011

Kawasaki 11011-2174

CASE-AIR FILTER

$

$

Not available

11012

Kawasaki 11012-2165-9Y

CAP,SPARK ARRESTER
(Superseded to 11012-2251-9Y)

$

$

Not available

11012A

Kawasaki 11012-2192

CAP,AIR FILTER

$

$

Not available

11013

Kawasaki 11013-2020

ELEMENT-AIR FILTER

$3.99

$

In Stock, Qty 12

0

11013A

Kawasaki 11013-2021

ELEMENT-AIR FILTER

$20.99

$

In Stock, Qty 11

0

11044

$

$

Not available

18077

Kawasaki 18077-2052

ARRESTER-SPARK

$

$

Not available

49069

Kawasaki 49069-2190-9Y

MUFFLER-ASSY
(Superseded to 49069-2096-9Y)

$

$

Not available

92002

$3.99

$

In Stock, only 2 left!

0

92009

$0.99

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2220

WASHER
(Superseded to 92200-0423)

$

$

Not available

92027

$2.49

$

In Stock, only 2 left!

0

130

Kawasaki 130G0812

BOLT-FLANGED
(Superseded to 130BA0812)

$1.49

$

In Stock, only 4 left!

0

130A

Kawasaki 130G0845

BOLT-FLANGED
(Superseded to 130BA0845)

$1.99

$

In Stock, Qty 13

0
