FB460V-AS29 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

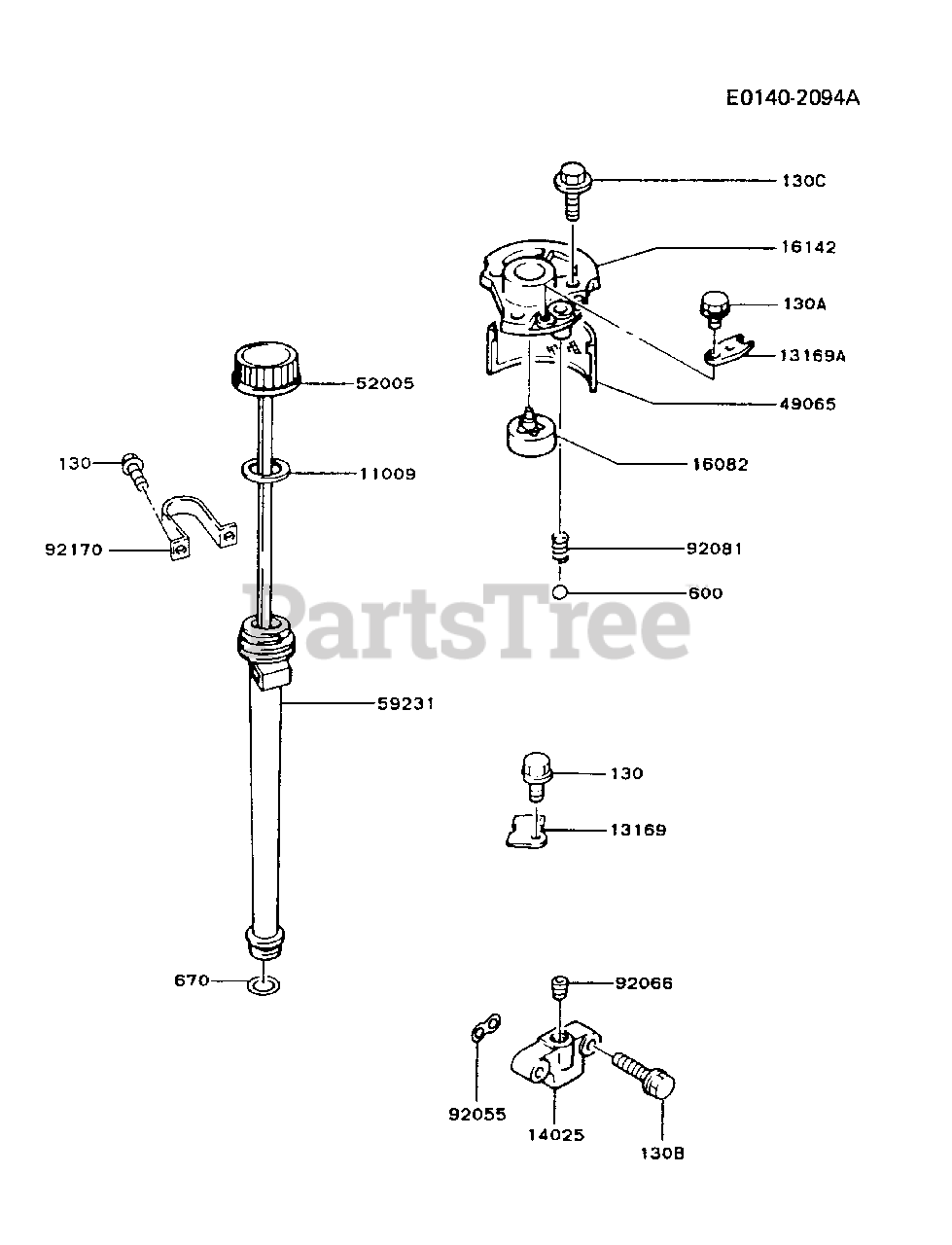

LUBRICATION-EQUIPMENT Parts Diagram

  • Title
11009

Kawasaki 11009-2346

GASKET,OIL GAUGE
(Superseded to M88482)

$2.49

$

In Stock, Qty 6

0

13169

$

$

Not available

13169A

Kawasaki 13169-2360

PLATE
(Superseded to 13270-2054)

$0.99

$

Usually ships in 2-5 days

0

14025

$13.99

$

Usually ships in 2-5 days

0

16082

Kawasaki 16082-2057

PUMP-ASSY-OIL

$

$

Not available

16142

Kawasaki 16142-6001

COVER-PUMP

$

$

Not available

49065

Kawasaki 49065-2056

FILTER-OIL

$

$

Not available

52005

$

$

Not available

59231

$

$

Not available

92055

$4.49

$

In Stock, Qty 12

0

92066

$

$

Not available

92081

$0.99

$

Usually ships in 2-5 days

0

$

$

Not available

130

Kawasaki 130B0508

BOLT-FLANGED
(Superseded to 130AA0508)

$0.99

$

In Stock, Qty 8

0

130A

Kawasaki 130B0610

BOLT-FLANGED
(Superseded to 130AA0610)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0830

BOLT-FLANGED
(Superseded to 130AA0830)

$0.99

$

In Stock, only 1 left!

0

130C

Kawasaki 130G0825

BOLT-FLANGED
(Superseded to 130BA0825)

$5.99

$

In Stock, Qty 5

0

600

Kawasaki 600A1000

BALL-STEEL

$0.99

$

In Stock, Qty 7

0

670

Kawasaki 670D2016

O RING
(Superseded to M88478)

$1.99

$

In Stock, Qty 20+

0
