FB460V-AS28 - Kawasaki Engine STARTER Parts Diagram

Engine

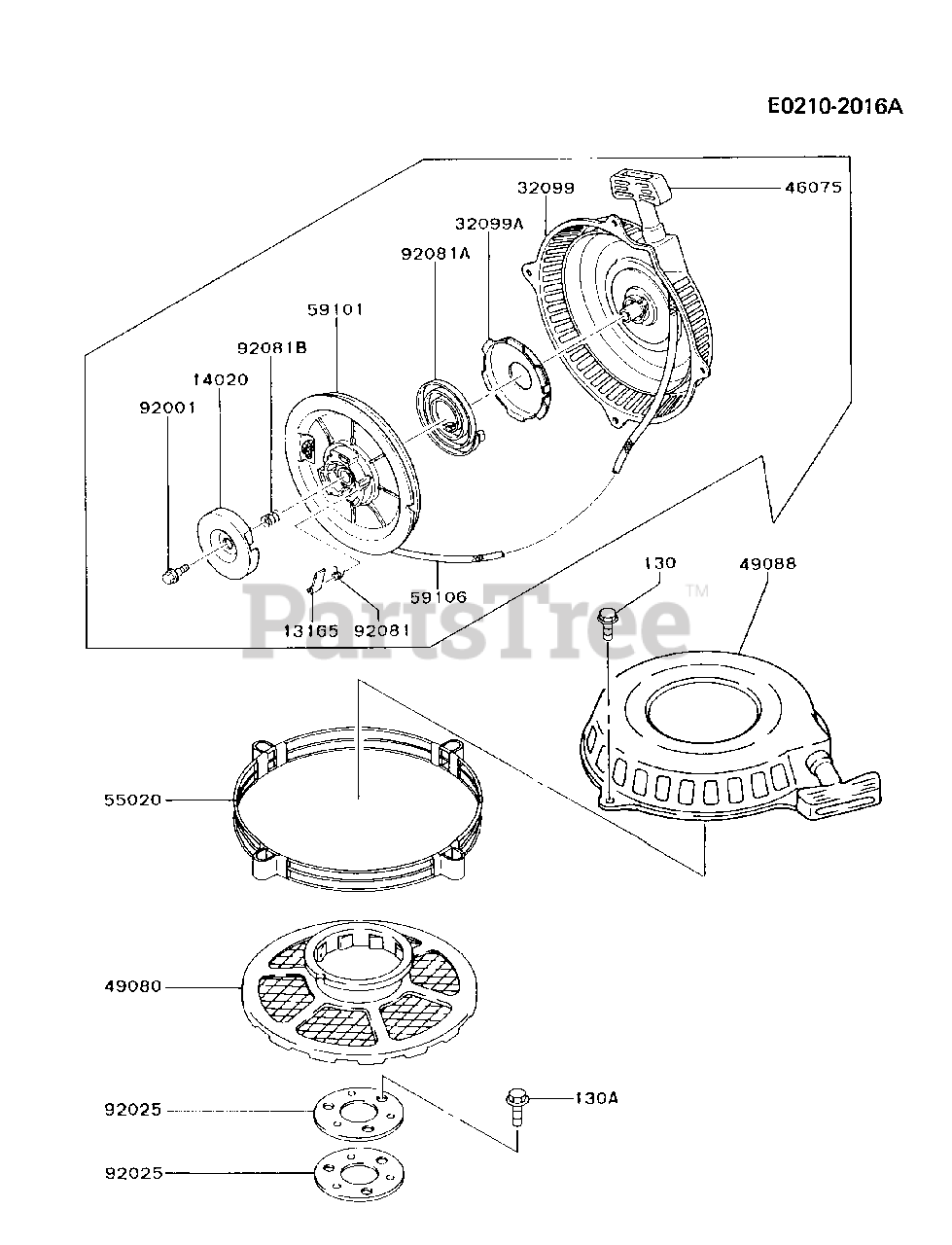

STARTER Parts Diagram

  • Title
13165

Kawasaki 13165-2057

PAWL,RECOIL STARTER
(Superseded to 13165-2073)

$5.49

$

In Stock, only 2 left!

0

14020

Kawasaki 14020-2054

RETAINER,RECOIL STARTER

$

$

Not available

32099

Kawasaki 32099-2059-YK

CASE,RECOIL STARTER
(Superseded to 32099-2059-9B)

$

$

Not available

32099A

Kawasaki 32099-2060

CASE,SPRING

$7.99

$

In Stock, only 4 left!

0

46075

Kawasaki 46075-2059

GRIP,RECOIL STARTER
(Superseded to 46075-2016)

$7.49

$

Usually ships in 2-5 days

0

49080

Kawasaki 49080-2123-YK

PULLEY-STARTING

$

$

Not available

49088

Kawasaki 49088-2212-YK

STARTER-RECOIL

$175.99

$

In Stock, only 4 left!

0

55020

$

$

Not available

59101

Kawasaki 59101-2054

REEL,RECOIL STARTER

$

$

Not available

59106

Kawasaki 59106-2060

ROPE,6X1380

$

$

Not available

92001

Kawasaki 92001-2027

BOLT
(Superseded to 314501-3447A)

$2.99

$

In Stock, only 3 left!

0

92025

Kawasaki 92025-2161

SHIM,T=1.20

$2.49

$

Usually ships in 2-5 days

0

92081

$1.99

$

In Stock, Qty 14

0

92081A

Kawasaki 92081-2267

SPRING,RECOIL

$34.99

$

Usually ships in 2-5 days

0

92081B

Kawasaki 92081-2268

SPRING,RETURN

$

$

Not available

130

Kawasaki 130B0635

BOLT-FLANGED
(Superseded to 130AA0635)

$1.99

$

In Stock, Qty 12

0

130A

Kawasaki 130G0812

BOLT-FLANGED
(Superseded to 130BA0812)

$1.49

$

In Stock, only 4 left!

0
