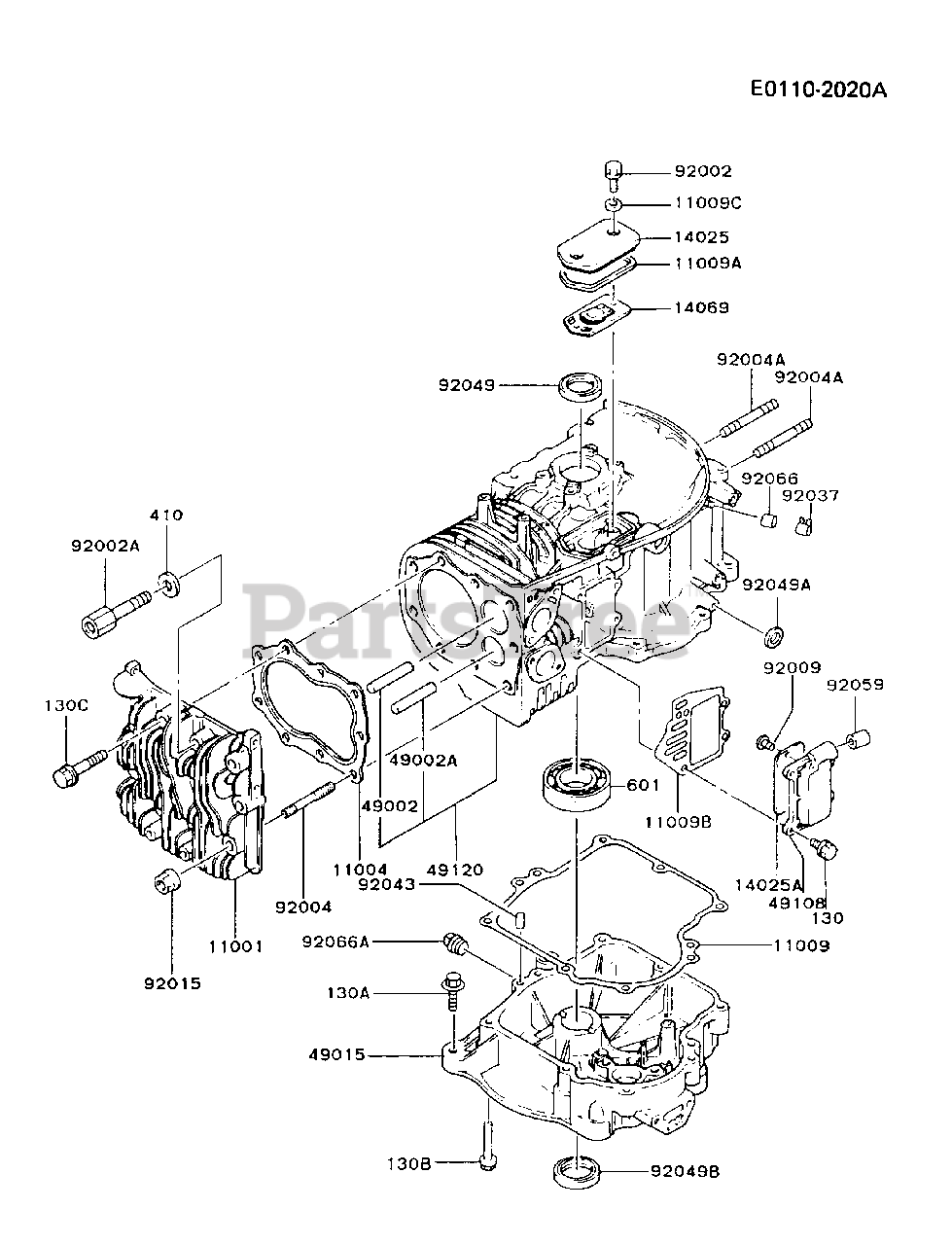

FB460V-AS18 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

CYLINDER/CRANKCASE Parts Diagram

  • Title
11001

Kawasaki 11001-2102

HEAD-CYLINDER
(Superseded to 11001-2151)

$

$

Not available

11004

Kawasaki 11004-2079

GASKET-HEAD
(Superseded to 11004-2091)

$16.99

$

In Stock, only 4 left!

0

11009

Kawasaki 11009-2337

GASKET,CRANKCASE COVER
(Superseded to 11060-2481)

$

$

Not available

11009A

Kawasaki 11009-2339

GASKET,BREATHER COVER

$

$

Not available

11009B

Kawasaki 11009-2502

GASKET
(Superseded to 11060-2376)

$6.49

$

Usually ships in 2-5 days

0

11009C

Kawasaki 11009-2205

GASKET
(Superseded to 11060-2323)

$0.99

$

In Stock, Qty 10

0

14025

Kawasaki 14025-2040

COVER,BREATHER

$

$

Not available

14025A

$0.99

$

In Stock, Qty 6

0

14069

$

$

Not available

49002

Kawasaki 49002-2070

GUIDE-VALVE,INTAKE
(Superseded to 49002-2012)

$

$

Not available

49002A

Kawasaki 49002-2071

GUIDE-VALVE,EXHAUST

$

$

Not available

49015

Kawasaki 49015-6001

COVER-CRANKCASE
(Superseded to 49015-6176)

$

$

Not available

49108

Kawasaki 49108-2011

COVER-VALVE CHAMBER

$

$

Not available

49120

Kawasaki 49120-6025

CRANKCASE-COMP
(Superseded to 49120-6108)

$

$

Not available

92002

Kawasaki 92002-2087

BOLT
(Superseded to 315501-5381A)

$0.99

$

In Stock, only 4 left!

0

92002A

$

$

Not available

92004

$

$

Not available

92004A

$1.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2101

SCREW
(Superseded to 92009-2307)

$0.99

$

In Stock, only 1 left!

0

92015

$0.99

$

In Stock, only 1 left!

0

92037

Kawasaki 92037-2125

CLAMP
(Superseded to 92170-2043)

$1.49

$

In Stock, Qty 14

0

$0.99

$

In Stock, Qty 20+

0

92049

$8.99

$

In Stock, Qty 10

0

92049A

$2.49

$

In Stock, Qty 20+

0

92049B

$

$

Not available

92059

Kawasaki 92059-2142

TUBE,10X14X29.5

$

$

Not available

92066

$1.99

$

In Stock, only 2 left!

0

92066A

$3.49

$

In Stock, Qty 11

0

130

Kawasaki 130G0616

BOLT-FLANGED
(Superseded to 130BA0616)

$1.49

$

In Stock, only 2 left!

0

130A

Kawasaki 130G0825

BOLT-FLANGED
(Superseded to 130BA0825)

$5.99

$

In Stock, Qty 5

0

130B

Kawasaki 130G0845

BOLT-FLANGED
(Superseded to 130BA0845)

$1.99

$

In Stock, Qty 13

0

130C

Kawasaki 130G1055

BOLT-FLANGED
(Superseded to 130BA1055)

$

$

Not available

410

Kawasaki 410B1000

W-PLAIN-S
(Superseded to 410AA1000)

$0.99

$

Usually ships in 2-5 days

0

601

Kawasaki 601A6207

BEARING,BALL

$21.99

$

In Stock, only 1 left!

0
