FB 72 (59A40021727) - Cub Cadet Yanmar Tractor Front Blade Front Hitch Assembly Parts Diagram

Tractor Front Blade

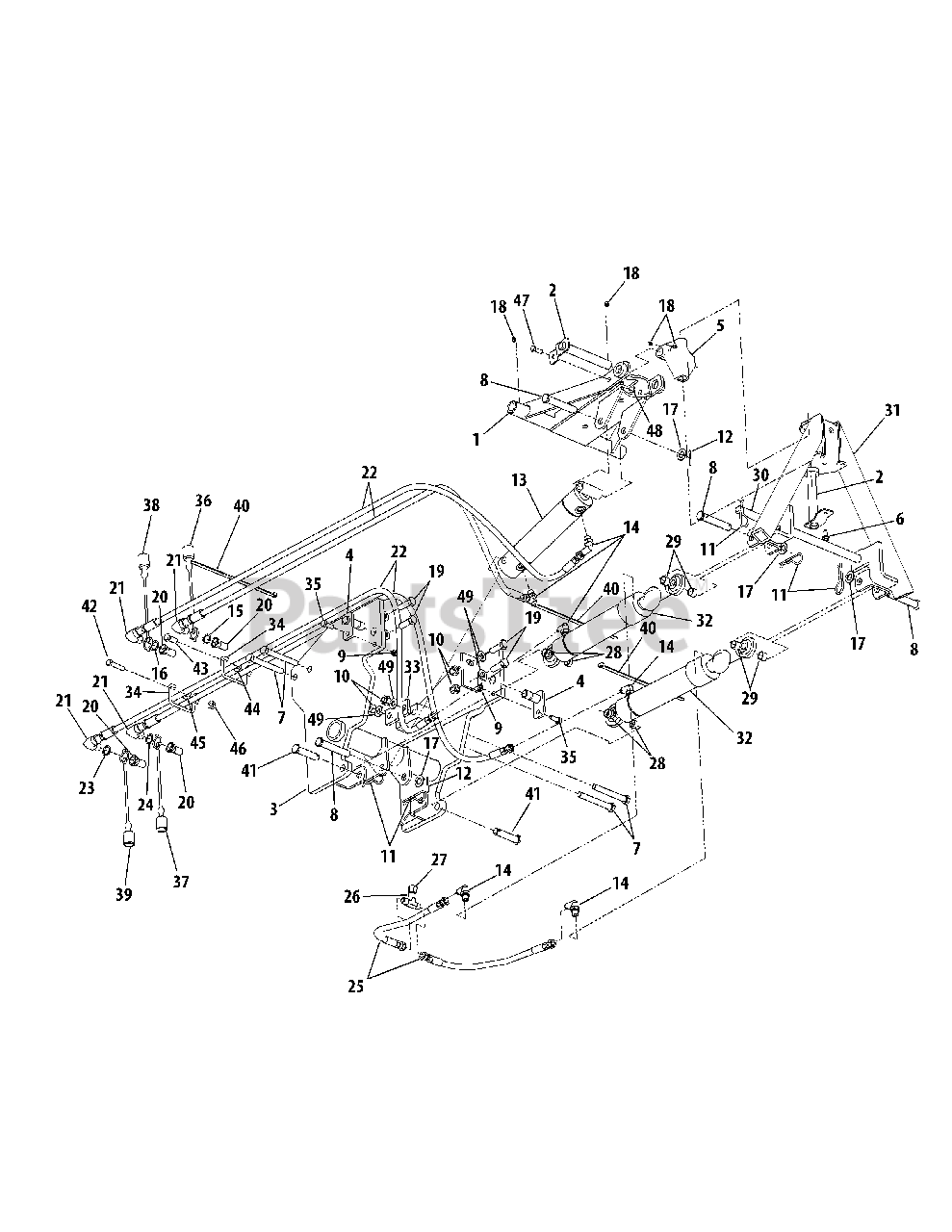

Front Hitch Assembly Parts Diagram

  • Title

1

Cub Cadet YS-603-04398

Link, Top

$

$

Not available

2

Cub Cadet YS-603-0806

Pin, Front Hitch

$

$

Not available

3

Cub Cadet YS-603-04397

Brace, Front Hitch

$

$

Not available

4

Cub Cadet YS-603-0809A

Pin, Hitch Pivot

$

$

Not available

5

Cub Cadet YS-619-3075

Housing, Pivot

$

$

Not available

6

Cub Cadet YS-710-1260A

Screw, Hex Wash. Hd Tap, 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet YS-710-0786

Screw, Hex Cap, 1/2-13 x 4.0 Gr5
(Superseded to 710-0786)

$16.99

$

Usually ships in 3-6 days

0

8

Cub Cadet YS-711-1625

Pin, Clevis, .625 x 3.45
(Superseded to 711-1625)

$

$

Not available

9

Cub Cadet YS-710-3240A

Screw, Hex Cap, 5/8-11 x3.75 Gr5
(Superseded to 710-3240A)

$9.49

$

Usually ships in 3-6 days

0

10

Cub Cadet YS-712-3083

Nut, Hex Insert Lock, 1/2-13 GrB
(Superseded to 712-3083)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet YS-714-0117

Pin, Internal Cotter
(Superseded to 714-0117)

$4.49

$

In Stock, Qty 16

0

12

Cub Cadet YS-714-0470

Pin, Cotter, 1/8 x 1.25
(Superseded to 914-0470)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet YS-717-04409

Cylinder, Hitch Lift

$

$

Not available

14

Cub Cadet YS-727-3012

Fitting, 90 Degree
(Superseded to 727-3012)

$26.99

$

In Stock, only 4 left!

0

15

Cub Cadet YS-731-3376

Washer, Indicator, Green
(Superseded to 731-3376)

$

$

Not available

16

Cub Cadet YS-731-3377

Washer, Indicator, Blue
(Superseded to 731-3377)

$

$

Not available

17

Cub Cadet YS-736-0156

Washer, Flat, .635 x 1.125 x .09
(Superseded to 736-0156)

$4.49

$

In Stock, Qty 12

0

18

Cub Cadet YS-737-0146

Fitting, Lube
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

19

Cub Cadet YS-710-3181

Screw, Hex Cap, 1/2-13 x 1.5 Gr5
(Superseded to 710-3181)

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet YS-727-04183

Coupling, Hydraulic Male

$

$

Not available

21

Cub Cadet YS-737-04179

Fitting, Elbow, 3/8
(Superseded to 737-04179)

$

$

Not available

22

Cub Cadet YS-727-04185

Hose, Hydraulic, 1/4 x 64.75

$

$

Not available

22

Cub Cadet YS-727-04213

Sleeve, Hose

Note: not shown

$

$

Not available

23

Cub Cadet YS-731-3374

Washer, Indicator, Red
(Superseded to 731-3374)

$11.99

$

Usually ships in 3-6 days

0

24

Cub Cadet YS-731-3375

Washer, Indicator, Yellow
(Superseded to 731-3375)

$

$

Not available

25

Cub Cadet YS-727-3265

Hose, Hydraulic
(Superseded to 727-3265)

$61.99

$

Usually ships in 3-6 days

0

26

Cub Cadet YS-727-3267

Fitting, Tee
(Superseded to 727-3267)

$

$

Not available

27

Cub Cadet YS-737-3133

Cap, Fitting
(Superseded to 737-3133)

$

$

Not available

28

Cub Cadet YS-750-3309

Spacer, Short Cylinder

$

$

Not available

29

Cub Cadet YS-750-3308

Spacer, Long Cylinder

$

$

Not available

30

Cub Cadet YS-750-04946

Rod, Hitch Lock

$

$

Not available

31

Cub Cadet YS-603-04804

Frame, Hitch

$

$

Not available

32

Cub Cadet YS-717-04515

Cylinder, Hitch Angle

$

$

Not available

33

Cub Cadet YS-703-06455

Spacer, Front Hitch

$

$

Not available

34

Cub Cadet YS-732-04529

Rod, Hose Support

$

$

Not available

35

Cub Cadet YS-710-0520

Screw, Hx Cp Lk, 3/8-16 x 1.5 Gr5
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 5

0

36

Cub Cadet YS-727-04197

Plug, Hyd. Coupler, Green

$

$

Not available

37

Cub Cadet YS-727-04199

Plug, Hyd. Coupler, Yellow

$

$

Not available

38

Cub Cadet YS-727-04198

Plug, Hyd. Coupler, Blue

$

$

Not available

39

Cub Cadet YS-727-04200

Plug, Hyd. Coupler, Red

$

$

Not available

40

Cub Cadet YS-726-0230

Tie, Cable, 36" Long
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

41

Cub Cadet YS-711-1537

Pin, Clevis, .618 x 2.75
(Superseded to 711-1537)

$4.49

$

Usually ships in 3-6 days

0

42

Cub Cadet YS-710-0347

Screw, Hex Cap, 3/8-16 x 1.75 Gr5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

43

Cub Cadet YS-732-04507A

Rod, Hose Support

$

$

Not available

44

Cub Cadet YS-712-3016

Nut, Hex Insert Lock 5/8-11, Gr5
(Superseded to 712-3016)

$6.99

$

In Stock, Qty 13

0

45

Cub Cadet YS-736-3004

Washer, Flat, .406 x .875 x .105
(Superseded to 936-3004)

$

$

Not available

46

Cub Cadet YS-712-0431

Nut, Hex Flange Lock, 3/8 -16 GrF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

47

Cub Cadet YS-710-0376

Screw, Hex Cap, 5/16-18 x 1.0 Gr5
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet YS-712-04063

Nut, Hex Insert Flnge Lock, 5/16-18 Gr F
(Superseded to 712-04063)

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet YS-736-0326

Washer, Flat, .51 x 1.0 x .125
(Superseded to 936-0326)

$4.49

$

In Stock, only 2 left!

0
