FB 72 (59A40021727) - Cub Cadet Yanmar Tractor Front Blade Blade Assembly Parts Diagram

Tractor Front Blade

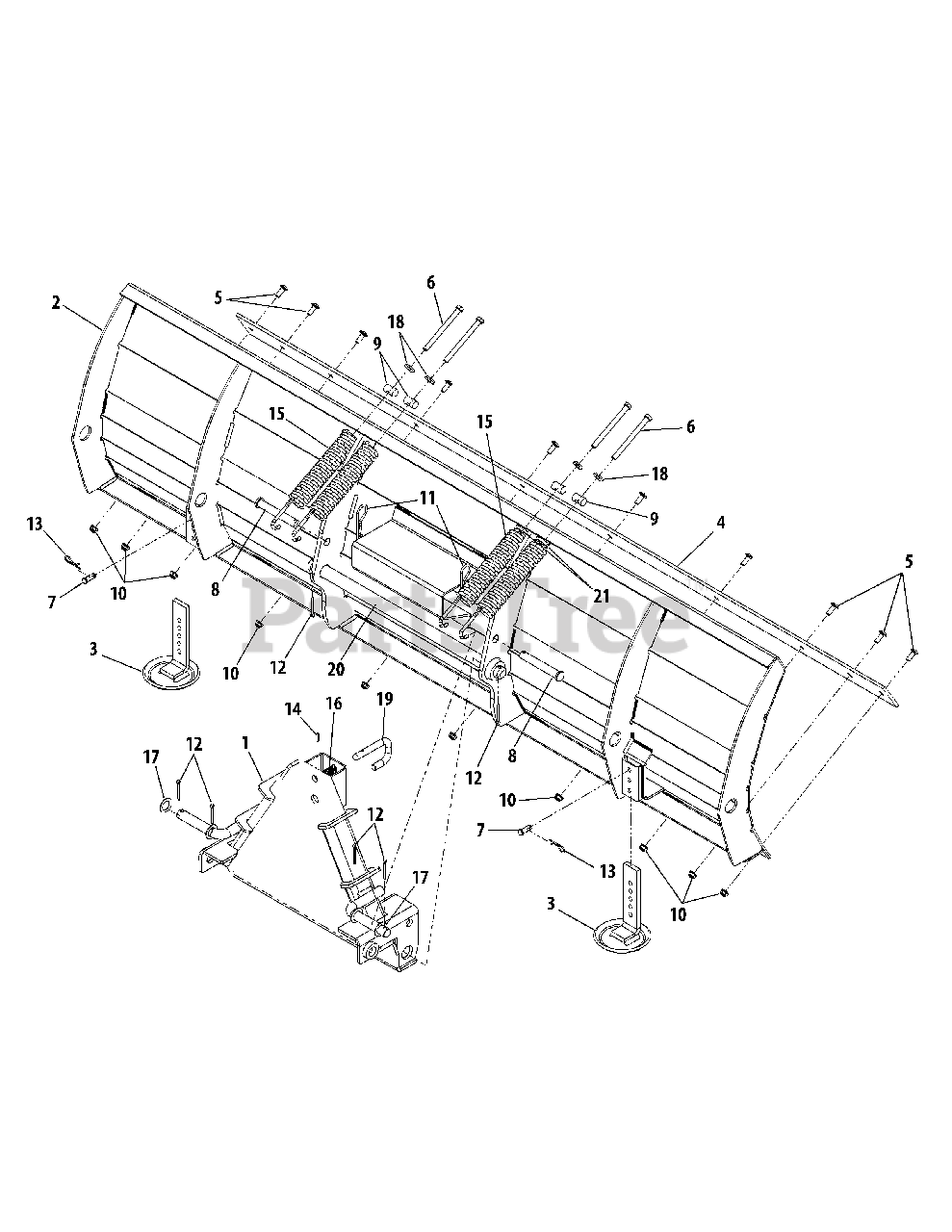

Blade Assembly Parts Diagram

  • Title

1

Cub Cadet YS-603-04435

Frame, Blade Mounting

$

$

Not available

2

Cub Cadet YS-603-04436

Blade Assembly

$

$

Not available

3

Cub Cadet YS-603-0810A

Shoe, Skid
(Superseded to 603-0810A-0637)

$79.99

$

Usually ships in 3-6 days

0

4

Cub Cadet YS-703-05971A

Blade, Scraper
(Superseded to 703-05971A-0637)

$173.99

$

Usually ships in 3-6 days

0

5

Cub Cadet YS-710-3105

Bolt, Carriage, 5/16-18 x .875
(Superseded to 710-3105)

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet YS-710-3279

Screw, Hex Cap, 3/8-16 x 4.25 Gr5
(Superseded to 710-3279)

$8.49

$

Usually ships in 3-6 days

0

7

Cub Cadet YS-711-0173

Pin, Clevis, .375 x .969
(Superseded to 711-04722)

$6.99

$

In Stock, only 3 left!

0

8

Cub Cadet YS-711-04903

Pin, Clevis, .625 x 4.25

$

$

Not available

9

Cub Cadet YS-711-3247A

Roller, Spring
(Superseded to 711-3247A)

$

$

Not available

10

Cub Cadet YS-712-04063

Nut, Hex Insert Flnge Lock, 5/16-18 Gr F
(Superseded to 712-04063)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet YS-714-0117

Pin, Internal Cotter
(Superseded to 714-0117)

$4.49

$

In Stock, Qty 6

0

12

Cub Cadet YS-714-0142

Pin, Cotter, 3/16 x 1.5
(Superseded to 714-0142)

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet YS-714-0145

Pin, Internal Cotter
(Superseded to 914-0145)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet YS-715-3003

Pin, Spirol, 3/16 x 3/4
(Superseded to 715-3003)

$6.99

$

In Stock, Qty 9

0

15

Cub Cadet YS-732-04539

Spring, Adjustment

$

$

Not available

16

Cub Cadet YS-732-3091

Spring, Compression, .57 x 2.09
(Superseded to 732-3091)

$

$

Not available

17

Cub Cadet YS-736-0250

Washer, Flat, 1.0 x 1.75 x .107
(Superseded to 736-0250)

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet YS-736-3004

Washer, Flat, .406 x .875 x .105
(Superseded to 936-3004)

$

$

Not available

19

Cub Cadet YS-747-3427

Pin, Front Hitch
(Superseded to 747-3427)

$

$

Not available

20

Cub Cadet YS-750-04926

Rod, Blade Pivot

$

$

Not available

21

Cub Cadet YS-711-0635

Insert, Spring
(Superseded to 711-0635)

$44.99

$

In Stock, only 1 left!

0
