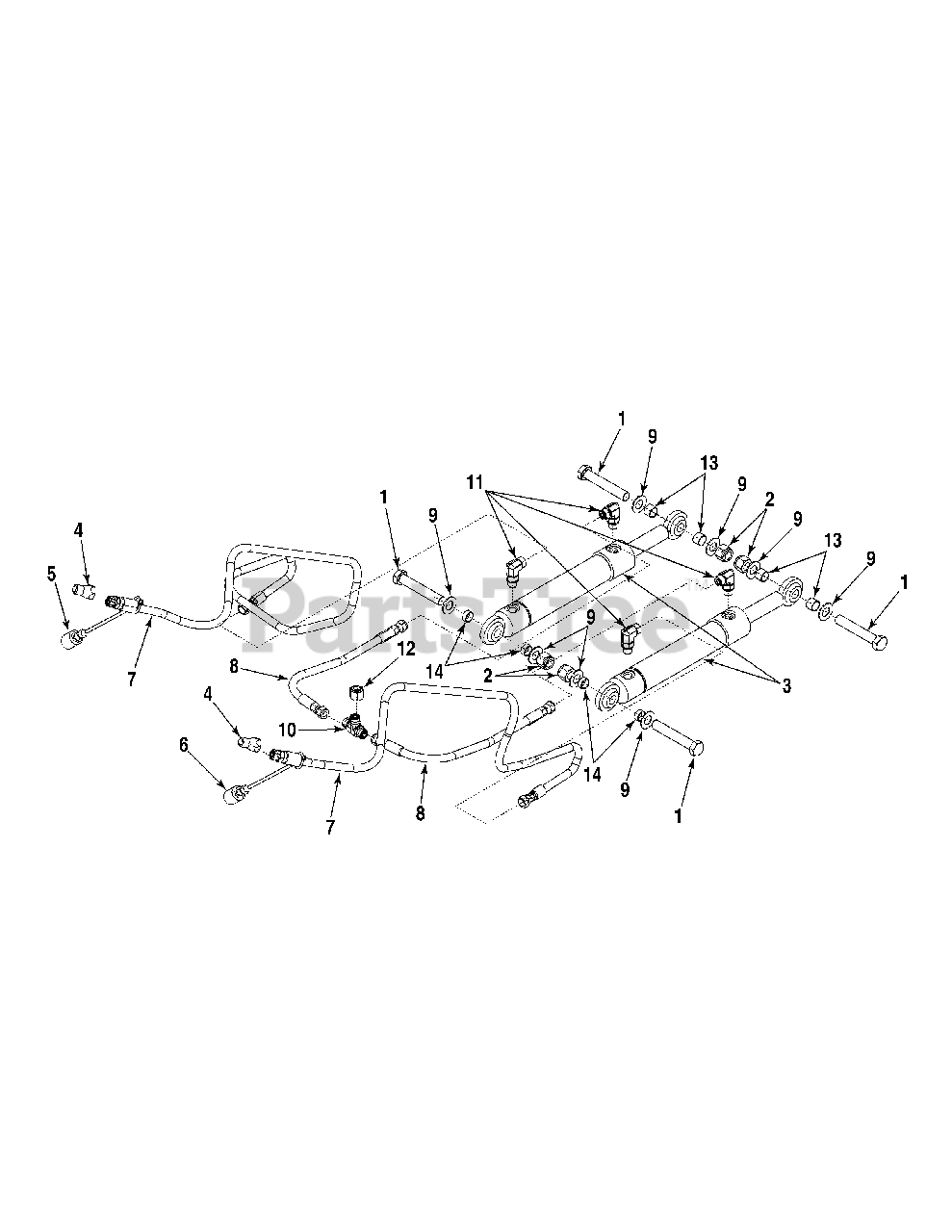

FB 60 (59A40050727) - Cub Cadet Yanmar Tractor Front Blade Hitch Angle Assembly Parts Diagram

Tractor Front Blade

Hitch Angle Assembly Parts Diagram

  • Title

1

Cub Cadet 710-3240A

Screw, Hex Cap, 5/8-11 x3.75 Gr5

$9.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-3016

Nut, Hex Insert Lock 5/8-11, Gr5

$6.99

$

In Stock, Qty 13

0

3

Cub Cadet 717-3520

Cylinder, Hitch Angle

$644.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 727-04243

Coupling, Hydraulic Male, 9/16-18

$

$

Not available

5

Cub Cadet 727-04249

Plug, Hyd. Coupler, Green

$

$

Not available

6

Cub Cadet 727-04250

Plug, Hyd. Coupler, Yellow

$

$

Not available

7

Cub Cadet 727-04260

Hose, Hydraulic, 60.0

$

$

Not available

8

Cub Cadet 727-04261

Hose, Hydraulic

$

$

Not available

9

Cub Cadet 736-0237

Washer, Flat, .65 x 1.25 x .075

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 737-04183A

Fitting, Standard Male Tee, 3/8 ORFS

$

$

Not available

11

Cub Cadet 737-04185

Fitting, 90 Degree, 3/8

$

$

Not available

12

Cub Cadet 737-04236

Cap, Fitting, 3/8

$

$

Not available

13

Cub Cadet 750-3308

Hub, Angle Cylinder, Long

$

$

Not available

14

Cub Cadet 750-3309

Hub, Angle Cylinder, Short

$

$

Not available
