FB 60 (59A40050727) - Cub Cadet Yanmar Tractor Front Blade Blade Assembly Parts Diagram

Tractor Front Blade

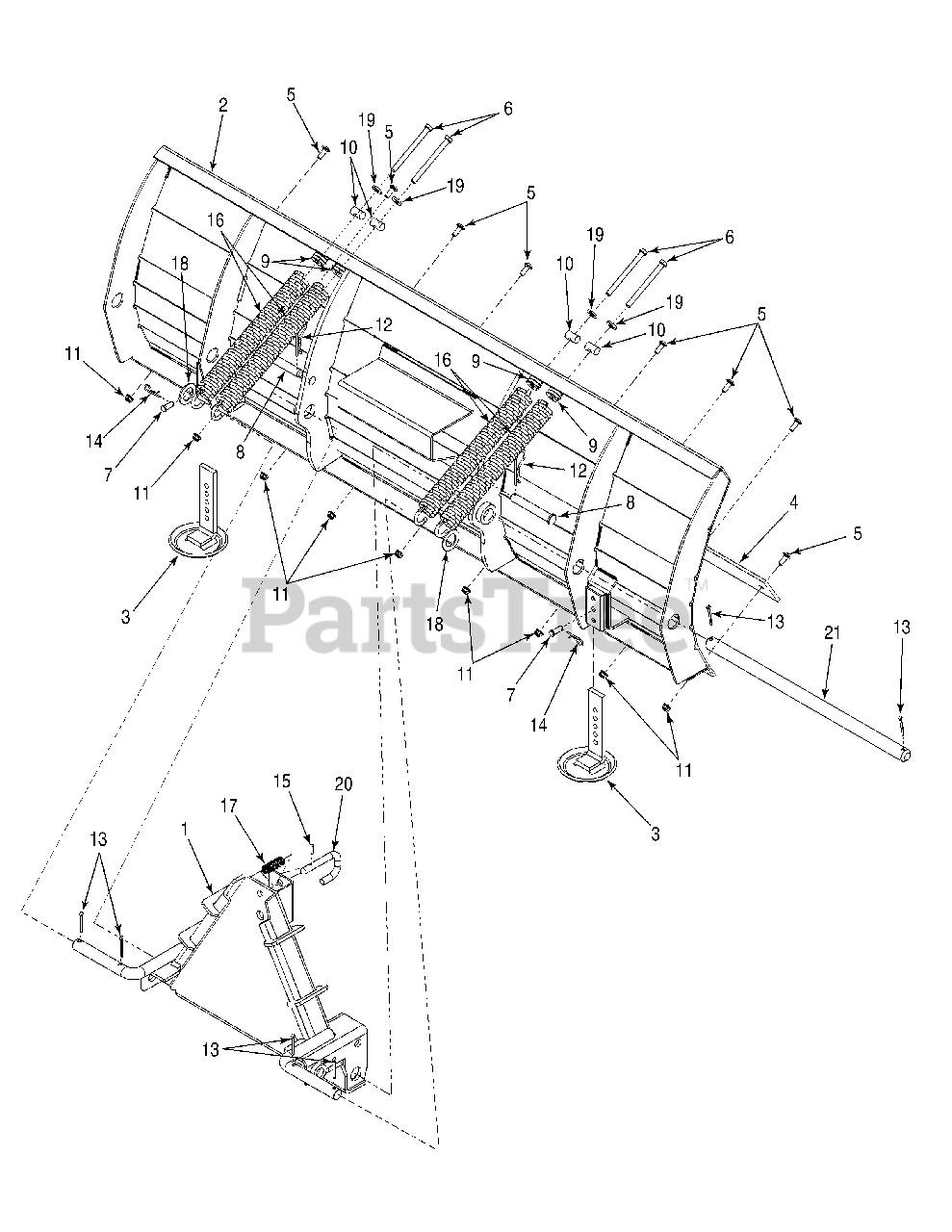

Blade Assembly Parts Diagram

  • Title

1

Cub Cadet 603-04435-0691

Frame, Blade Mounting

$

$

Not available

2

Cub Cadet 603-04594-0691

Blade Assembly

$

$

Not available

3

Cub Cadet 603-0810A-0637

Shoe, Skid

$79.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-06687-0691

Blade, Scraper

$

$

Not available

5

Cub Cadet 710-3105

Bolt, Carriage, 5/16-18 x .875

$6.49

$

In Stock, only 1 left!

0

6

Cub Cadet 710-3279

Screw, Hex Cap, 3/8-16 x 4.25 Gr5

$8.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 911-0173

Pin, Clevis, .375 x .969
(Superseded to 711-04722)

$6.99

$

In Stock, only 3 left!

0

8

Cub Cadet 711-04903

Pin, Clevis, .625 x 4.25

$

$

Not available

9

Cub Cadet 711-0635

Insert, Spring

$44.99

$

In Stock, only 1 left!

0

10

Cub Cadet 711-3247

Roller, Spring

$20.99

$

In Stock, only 2 left!

0

11

Cub Cadet 712-04063

Nut, Hx insert Flange Lock, 5/16-18 GrF

$3.99

$

In Stock, Qty 10

0

12

Cub Cadet 714-0117

Pin, Internal Cotter

$4.49

$

In Stock, Qty 16

0

13

Cub Cadet 714-0142

Pin, Cotter, 3/16 x 1.5

$6.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 914-0145

Pin, Internal Cotter
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 715-3003

Pin, Spirol, 3/16 x 3/4

$6.99

$

In Stock, Qty 7

0

16

Cub Cadet 732-04539

Spring, Adjustment

$

$

Not available

17

Cub Cadet 732-3091

Spring, Compression, .57 x 2.09

$

$

Not available

18

Cub Cadet 736-0250

Washer, Flat, 1.0 x 1.75 x .107

$4.49

$

In Stock, only 2 left!

0

19

Cub Cadet 936-3004

Washer, Flat, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

20

Cub Cadet 747-3427

Pin, Front Hitch

$

$

Not available

21

Cub Cadet 750-04926

Rod, Blade Pivot

$

$

Not available
