FB 3000 (5902135) - Ferris Hurricane Series Stand-On Blower Wheel and Tire Group Parts Diagram

Hurricane Series Stand-On Blower

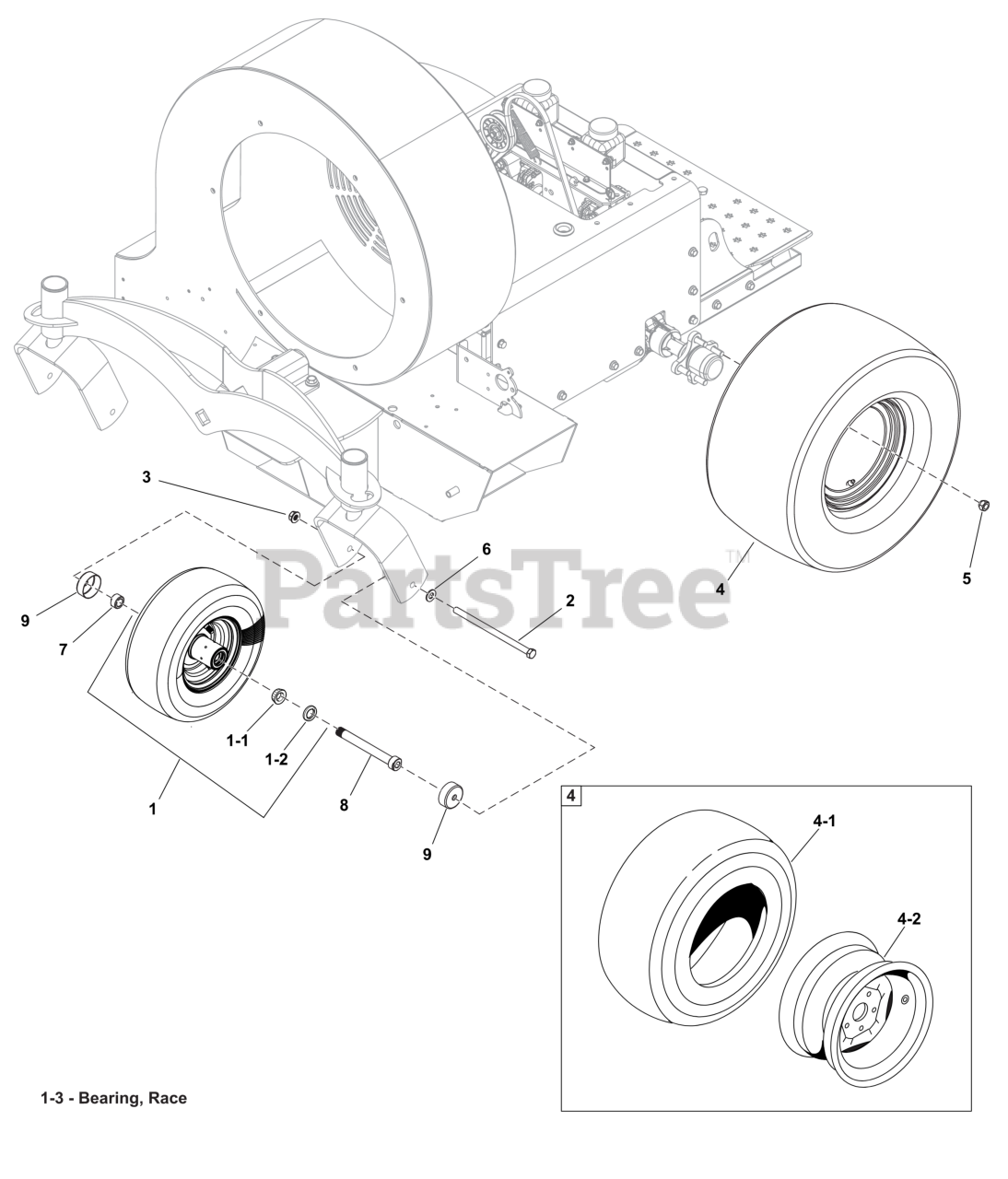

Wheel and Tire Group Parts Diagram

  • Title
1

Ferris 5108751FS

TIRE ASSEMBLY

$229.99

$

In Stock, only 2 left!

0

1-1

Ferris 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (SV - 2 per tire)

$12.99

$

In Stock, Qty 20+

0

1-2

Ferris 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (SV - 2 per tire)

$9.99

$

In Stock, Qty 20+

0

1-3

Ferris 5022631SX4

BEARING, RACE
(Superseded to 5022631SX4SM)

Note: (SV - 2 per tire)

$10.99

$

In Stock, Qty 20+

0

2

Ferris 5025017X72YP

BOLT, 1/2-13 X 9 GD5

$11.99

$

In Stock, Qty 19

0

$3.49

$

In Stock, Qty 20+

0

4

Ferris 84008750

TIRE ASSEMBLY

$

$

Currently unavailable

4-1

Ferris 5107875X1

TIRE, 22-11.00 X 10, 4-PLY (TIRE ONLY)

Note: (One per tire)

$241.99

$

Usually ships in 2-12 days

0

4-2

WHEEL RIM

Note: (Not available for sale. Refer to Complete Tire Assembly)

$

$

Not available

5

Ferris 5020601SM

NUT, 1/2-20, FOR WHEEL BOLT SILVER

$3.49

$

In Stock, Qty 20+

0

6

Ferris 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 8

0

7

Ferris 5103650YP

NUT, BEARING

$16.99

$

In Stock, Qty 13

0

8

Ferris 5103649YP

BEARING ADJUSTER

$23.99

$

In Stock, Qty 18

0

9

Ferris 5103594YP

DEBRIS, COVER, WHEEL

$4.49

$

In Stock, Qty 13

0
