FB 3000 (5902135) - Ferris Hurricane Series Stand-On Blower Hydraulic Group Parts Diagram

Hurricane Series Stand-On Blower

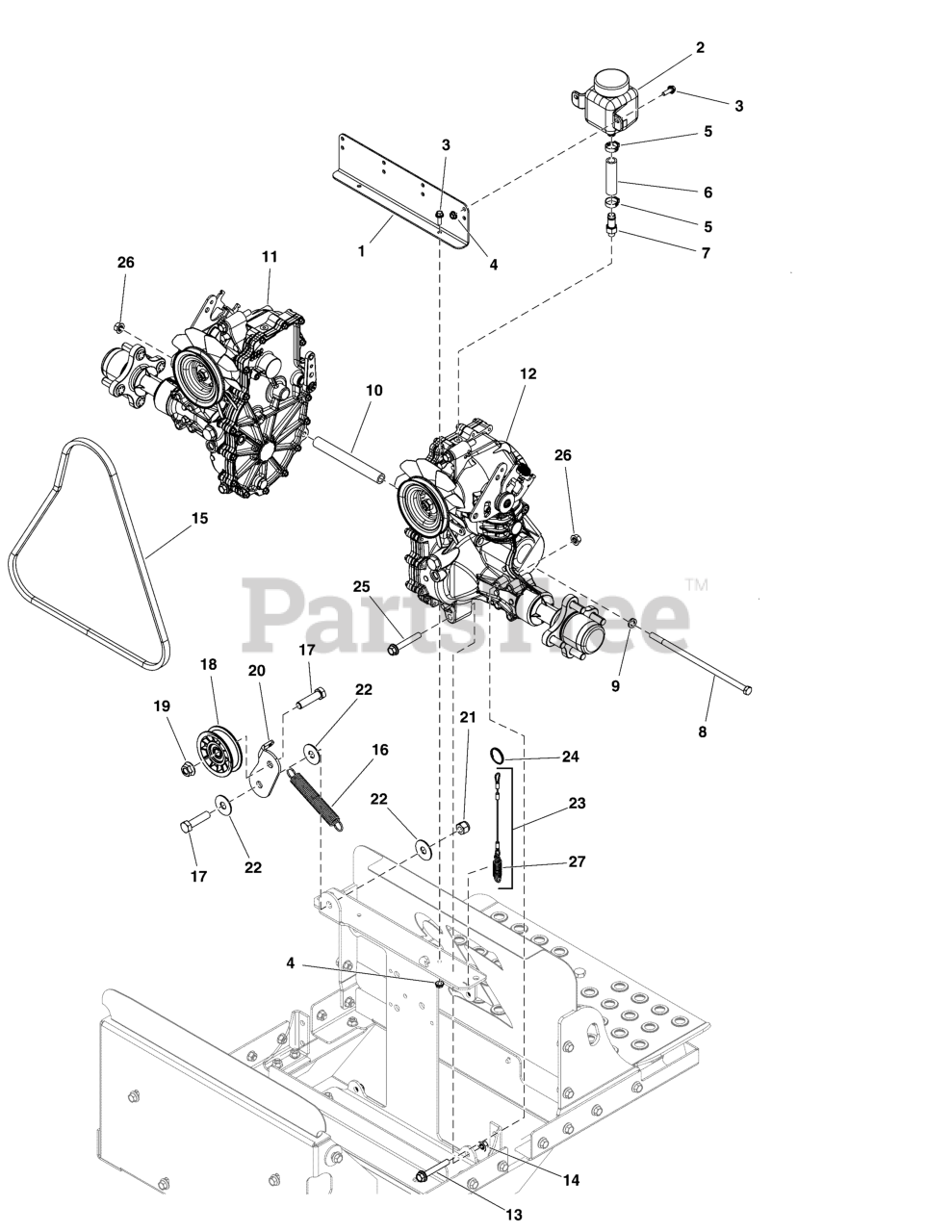

Hydraulic Group Parts Diagram

  • Title
1

Ferris 5107366AAFS

MOUNT, TANK

$28.99

$

Usually ships in 2-12 days

0

2

Ferris 5100473SM

RESERVOIR

$40.99

$

In Stock, only 1 left!

0

$2.49

$

Usually ships in 2-12 days

0

$4.49

$

Usually ships in 2-12 days

0

5

Ferris 5025474SM

CLAMP - HOSE

$3.49

$

Usually ships in 2-12 days

0

$5.49

$

Usually ships in 2-12 days

0

7

$13.99

$

Usually ships in 2-12 days

0

$7.49

$

In Stock, only 1 left!

0

9

$3.49

$

Usually ships in 2-12 days

0

10

$22.99

$

Usually ships in 2-12 days

0

11

Ferris 5107227

TRANSAXLE, ZT3100, RH, ZJ-LPRP-3A7C-19XX
(Superseded to 84006961)

Note: (S/N: 40015467047 and below)

$1244.99

$

Usually ships in 2-12 days

0

11

Ferris 84006961

TRANSAXLE

Note: (S/N: 40015467048 and above)

$1244.99

$

Usually ships in 2-12 days

0

12

Ferris 5107222

TRANSAXLE, ZT3100, LH, ZJ-HPRP-3A7B-19XX
(Superseded to 84006962)

Note: (S/N: 40015467047 and below)

$1292.99

$

Usually ships in 2-12 days

0

12

Ferris 84006962

TRANSAXLE

Note: (S/N: 40015467048 and above)

$1292.99

$

Usually ships in 2-12 days

0

13

Ferris 5025670

BOLT, HEX, 3/8-16 X 3", SER FLG GRD5, CZ

$

$

Currently unavailable

$2.99

$

Usually ships in 2-12 days

0

15

Ferris 5106821FS

BELT, DRIVE

$32.99

$

In Stock, only 2 left!

0

16

$10.99

$

In Stock, only 1 left!

0

17

Ferris 5025017X16YP

BOLT, 1/2-13 X 2 GD5

$4.49

$

In Stock, only 1 left!

0

18

Ferris 5107103FS

PULLEY, IDLER

$24.99

$

In Stock, Qty 13

0

19

$3.49

$

In Stock, Qty 20+

0

20

Ferris 5107365AAFS

ARM, IDLER

$30.99

$

Usually ships in 2-12 days

0

$4.49

$

In Stock, only 1 left!

0

22

$2.49

$

Usually ships in 2-12 days

0

23

Ferris 5107300FS

CABLE, Hydraulic Control

Note: (Includes item # 28.)

$36.99

$

Usually ships in 2-12 days

0

$1.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

26

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

27

Ferris 5106888FS

SPRING, EXTENSION

$6.49

$

In Stock, only 2 left!

0
