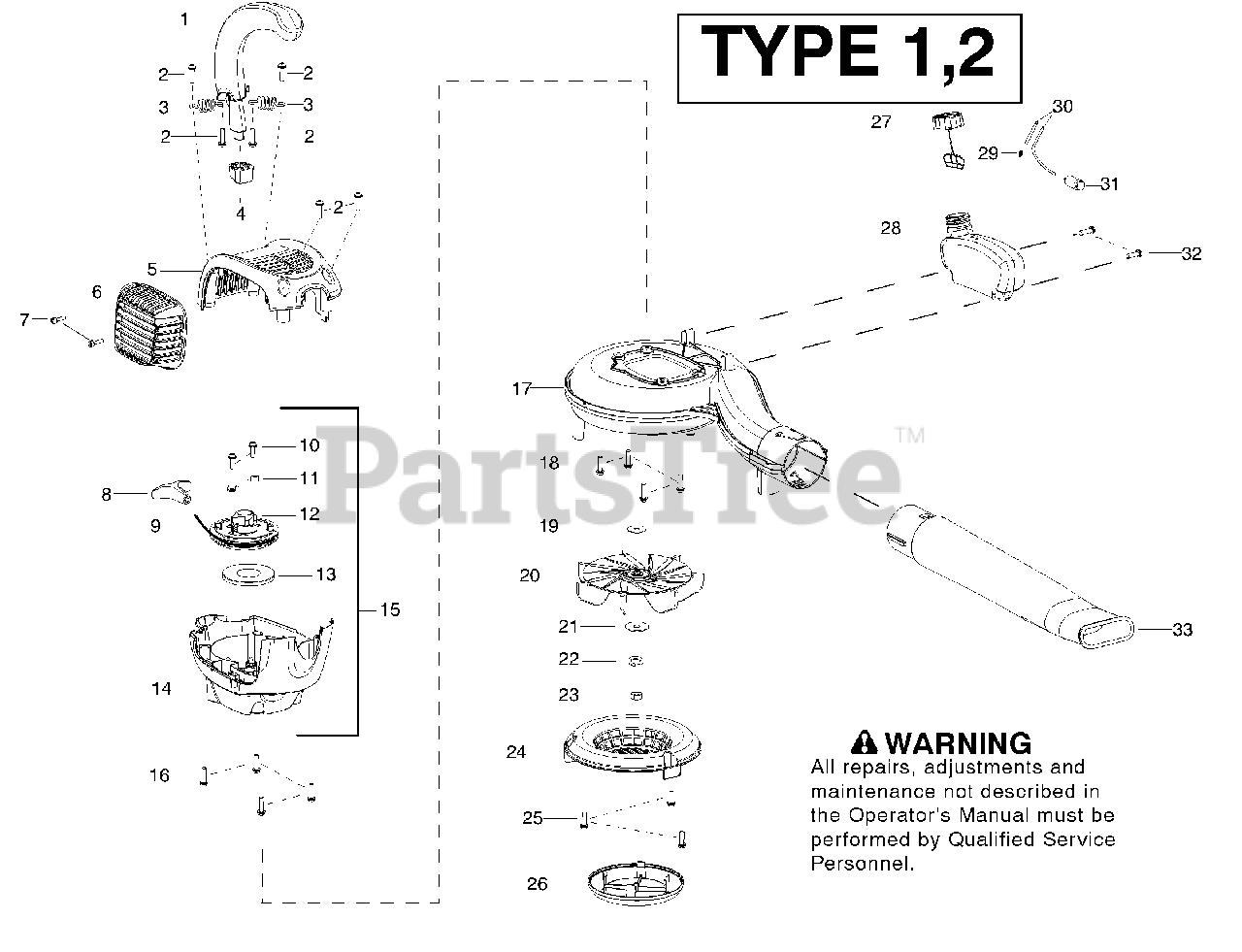

FB 25 - Weed Eater Blower Housing Parts Diagram

Blower

Housing Parts Diagram

  • Title

1

Poulan 545197801

Assy - Handle

Note: (Incl. qty. 2 of ref. 2,3)

$13.99

$

Usually ships in 3-10 days

0

2

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

3

Poulan 545206801

Spring - Isolator

$7.49

$

In Stock, only 1 left!

0

4

Poulan 545203101

Isolator - Handle

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 545192601

Housing - Upper Engine

$3.49

$

Usually ships in 3-10 days

0

6

Poulan 525433201

Assy - Muffler Guard

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 530016449

Screw

$6.49

$

In Stock, only 2 left!

0

8

Poulan 530054834

Handle - Starter

$4.99

$

In Stock, only 1 left!

0

9

Poulan 545180862

Kit - Rope

$4.99

$

In Stock, only 1 left!

0

10

Poulan 530015775

Screw - Retainer

$6.49

$

In Stock, only 2 left!

0

11

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

12

Poulan 545180863

Kit - Starter Pulley

Note: (Incl. 10)

$13.99

$

In Stock, only 1 left!

0

13

Poulan 545054901

Spring - Starter
(Superseded to 545008014)

$10.99

$

In Stock, only 1 left!

0

14

Poulan 526480601

Assy - Lower end housing with bearing

$13.99

$

Usually ships in 3-10 days

0

15

Poulan 545196201

Assy - Lower Engine Housing
(Superseded to 586244802)

Note: (Incl. 10,11,12,13,14)

$24.99

$

Usually ships in 3-10 days

0

16

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

17

Poulan 545203001

Assy - Scroll Housing

$18.99

$

Usually ships in 3-10 days

0

18

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

19

Poulan 530015828

Washer

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 545193301

Assy - Impeller
(Superseded to 576162901)

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 545164501

Washer - Impeller

$4.99

$

Usually ships in 3-10 days

0

22

Poulan 530092322

Washer - Lock

$3.49

$

Usually ships in 3-10 days

0

23

Poulan 530626605

Nut

$5.99

$

Usually ships in 3-10 days

0

24

Poulan 545192901

Cover - Inlet

$3.99

$

In Stock, only 2 left!

0

25

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

26

Poulan 530057996

Deflector - Intake

$2.49

$

Usually ships in 3-10 days

0

27

Poulan 530014347

Cap - Fuel (w/retainer)

$9.49

$

In Stock, Qty 15

0

28

Poulan 545197701

Assy - Fuel Tank
(Superseded to 585479602)

Note: (Incl. 27,29,30,31)

$26.99

$

Usually ships in 3-10 days

0

29

Poulan 530023877

Fitting - Fuel Line

$5.99

$

In Stock, Qty 17

0

30

Poulan 530069599

Kit - Fuel Line

Note: (Incl. 29)

$7.49

$

In Stock, only 1 left!

0

31

Poulan 530014362

Assy - Fuel Pick-up
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

32

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

33

Poulan 545193701

Tube - Blower

$7.99

$

In Stock, only 1 left!

0

33

Poulan 545186729

Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 545216201

Decal - Warning

Note: Not Shown

$

$

Not available

33

Poulan 525485301

Decal - Entanglement Warning

Note: Not Shown

$

$

Not available

33

Poulan 522928602

Decal - Spark Arrestor Warning

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0
