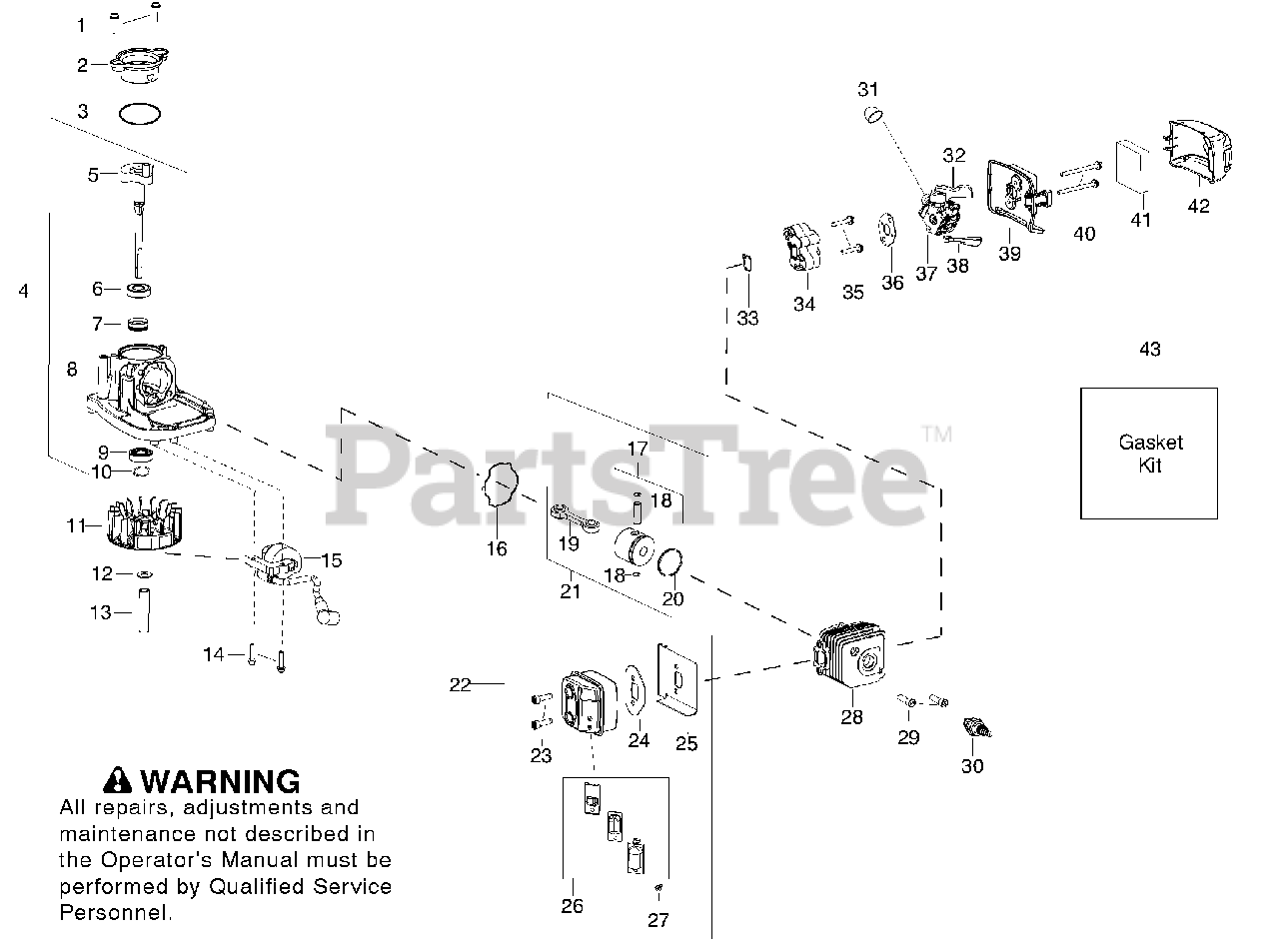

FB 25 (952711937) - Electrolux/AYP String Trimmer (2009-04) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Electrolux/AYP 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 530057954

Assy - Rear Plug

Note: (Incl. 3)

$5.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 545180866

O-Ring - Rear Plug (kit)

$6.49

$

In Stock, only 4 left!

0

4

Electrolux/AYP 545180861

Kit - Crankshaft / Crankcase

Note: (Incl. 5,8,10)

$10.05

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 545091101

Assy - Crankshaft
(Superseded to 576810001)

$

$

Not available

6

Electrolux/AYP 530032125

Bearing - Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530019264

Seal - Crankshaft

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 545197401

Assy - Crankcase
(Superseded to 530012582)

Note: (Incl. 6,7,9)

$37.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530055728

Bearing - Outer

$9.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530015941

Ring - Crankshaft Retainer

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 545197301

Assy - Flywheel
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 545113701

Spacer - Flywheel

$5.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 530016357

Screw

$6.49

$

In Stock, only 4 left!

0

15

Electrolux/AYP 545158001

Module - Ignition
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 545180866

Seal - Crankcase / Cylinder (kit)

$6.49

$

In Stock, only 4 left!

0

17

Electrolux/AYP 530071833

Kit - Piston

Note: (Incl. 18,20)

$37.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530015162

Retainer - Wrist Pin

$6.49

$

In Stock, only 1 left!

0

19

Electrolux/AYP 530069945

Kit - Connecting Rod
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530055120

Ring - Piston
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 530071785

Kit - Piston and Rod

Note: (Incl. 17,19)

$47.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 545180865

Kit - Muffler

Note: (Incl. 23,24,25,26,27)

$34.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530016338

Screw - Muffler

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 545180866

Gasket - Muffler (kit)

$6.49

$

In Stock, only 4 left!

0

25

Electrolux/AYP 545210501

Shield - Muffler

$2.23

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530071544

Kit - Spark Arrestor

$

$

Not available

27

Electrolux/AYP 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530012541

Cylinder - Machined (25cc)

$31.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 530015953

Screw - Cylinder

$6.49

$

In Stock, Qty 7

0

30

Electrolux/AYP 952030249

Accy - Spark Plug (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 530058709

Bulb - Purge

$7.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 545180868

Kit - Throttle

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 545180866

Seal - Cylinder/Carb. Adapter (kit)

$6.49

$

In Stock, only 4 left!

0

34

Electrolux/AYP 545197001

Adapter - Carburetor

$6.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530016441

Screw

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 545180866

Gasket - Carburetor (kit)

$6.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 545180864

Kit - Carburetor Assy.

$51.99

$

In Stock, Qty 5

0

38

Electrolux/AYP 545180869

Kit - Choke

$22.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 545193501

Base - Air Box
(Superseded to 573952701)

$3.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 530016429

Screw

$6.49

$

In Stock, Qty 6

0

41

Electrolux/AYP 530036575

Filter - Foam Air

$5.99

$

In Stock, only 2 left!

0

42

Electrolux/AYP 545193601

Cover - Air Box

$7.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 545180866

Kit - Gasket

Note: (Incl. 3,16,24,33,36)

$6.49

$

In Stock, only 4 left!

0
