FB 2000 (5901963) - Ferris Hurricane Series Stand-On Blower Engine Group Parts Diagram

Hurricane Series Stand-On Blower

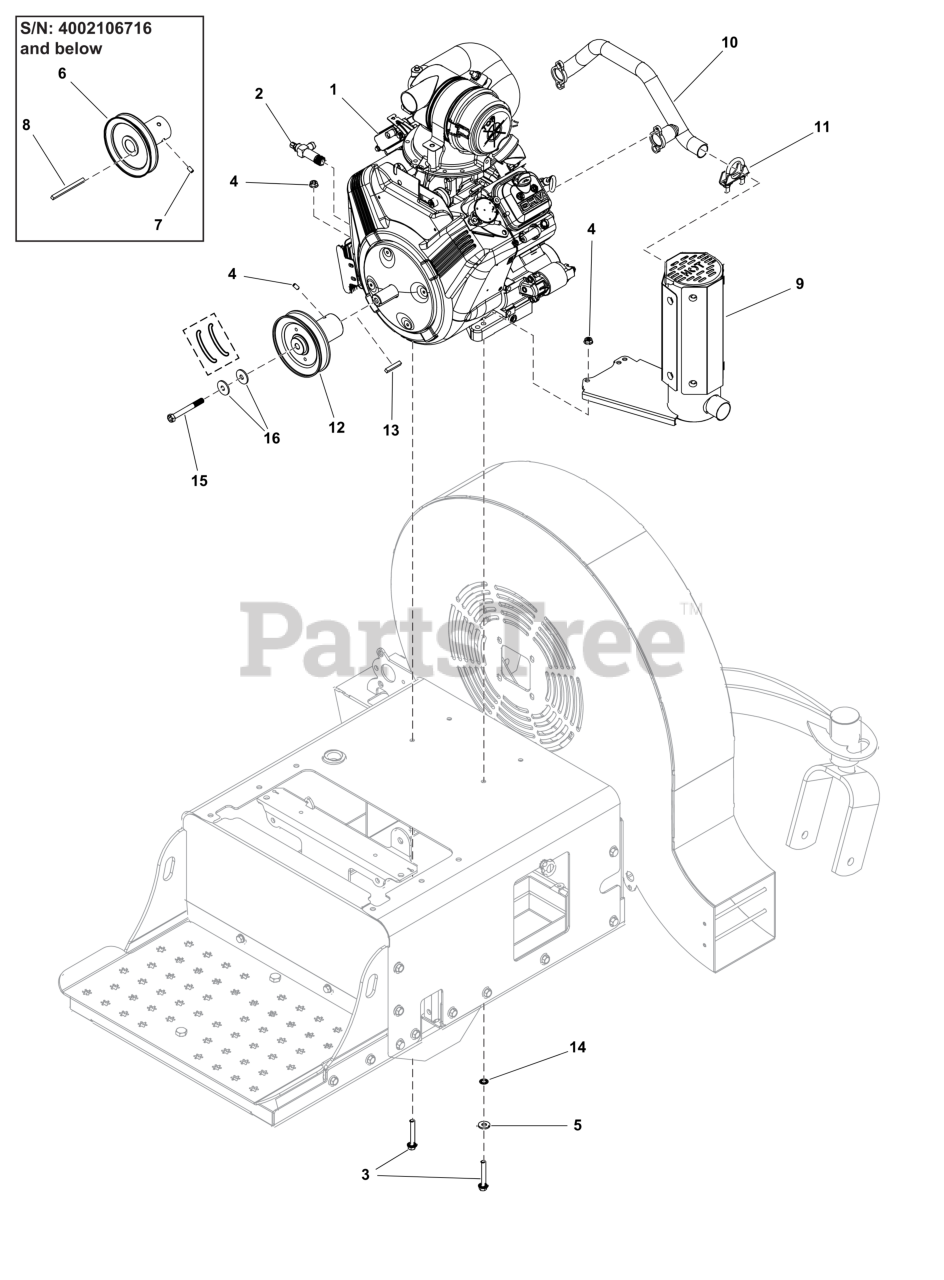

Engine Group Parts Diagram

  • Title

1

ENGINE, HORIZONTAL SHAFT, Briggs & Stratton, 386447

Note: (Refer to Note: *)

$

$

Not available

2

Ferris 5107284FS

VALVE, OIL DRAIN SHUT OFF

$46.99

$

Usually ships in 2-12 days

0

3

Ferris 5107304FS

BOLT

$2.49

$

Usually ships in 2-12 days

0

4

Ferris 5025127SM

NUT, 5/16-18 HEX SERR

$3.49

$

In Stock, Qty 7

0

5

Ferris 5025337FS

WASHER

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5601378

KIT, DRIVE PULLEY, FB2000/X3000

Note: (S/N: 4002106716 and below)

$226.99

$

Usually ships in 2-12 days

0

7

Ferris 5107269FS

SET SCREW

$2.49

$

In Stock, only 4 left!

0

8

Ferris 5106925FS

KEY

Note: (S/N: 4002106716 and below)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5109326FS

MUFFLER

$148.99

$

Usually ships in 2-12 days

0

10

Ferris 5109325FS

MANIFOLD

$85.99

$

In Stock, only 3 left!

0

11

Ferris 5107405FS

CLAMP, MUFFLER

$6.99

$

Usually ships in 2-12 days

0

12

PULLEY, STUB SHAFT

Note: (S/N: 4002106717 and above)

$

$

Not available

13

Ferris 5022726YP

KEY 1/4 SQ X 1 1/2

Note: (S/N: 4002106717 and above)

$4.99

$

In Stock, only 2 left!

0

14

Ferris 5025188SM

WASHER, 5/16" INT. TO

$3.99

$

In Stock, only 1 left!

0

15

Ferris 5025694

BOLT, 3/8-24 X 3-1/4, GD8 PHOS

Note: (S/N: 4002106717 and above)

$

$

Currently unavailable

16

Ferris 5025693FS

WASHER, Beveled

Note: (S/N: 4002106717 and above)

$3.49

$

Usually ships in 2-12 days

0
