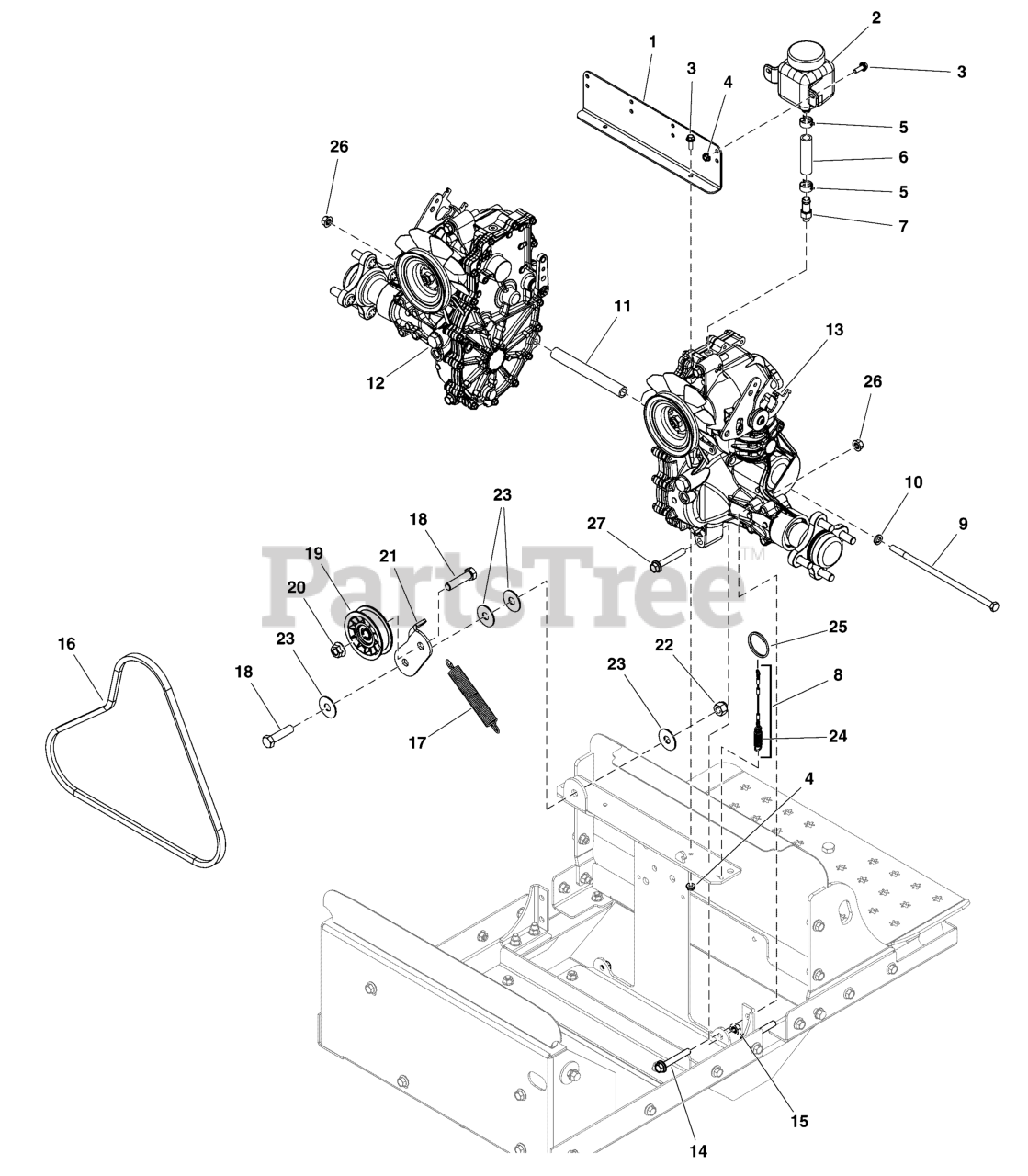

FB 2000 (5901811) - Ferris Hurricane Series Stand-On Blower Hydraulic Group Parts Diagram

Hurricane Series Stand-On Blower

Hydraulic Group Parts Diagram

  • Title

1

Ferris 5107366AA

MOUNT, OIL RESERVOIR - BLK
(Superseded to 5107366AAFS)

$28.99

$

Usually ships in 2-12 days

0

2

Ferris 5100473

RESERVOIR, HYDRO OIL, 350 ML
(Superseded to 5100473SM)

$40.99

$

Usually ships in 2-12 days

0

3

Ferris 5106872

BOLT, 1/4-20 X 3/4, FLANGE, CZ
(Superseded to 5106872FS)

$2.49

$

Usually ships in 2-12 days

0

4

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

5

Ferris 5025474

CLAMP, HOSE, .75 FREE DIA.
(Superseded to 5025474SM)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5050857X1P75

HOSE, 1/2" PUSH-ON, 1.75"

$

$

Currently unavailable

7

Ferris 5107224

FITTING, STRAIGHT 7/16-20 UNF
(Superseded to 5107224FS)

$13.99

$

Usually ships in 2-12 days

0

8

Ferris 5107235

CABLE, HYDRO NEUTRAL RELEASE
(Superseded to 5107235FS)

Note: (Includes item #24)

$36.99

$

Usually ships in 2-12 days

0

9

Ferris 5025667

BOLT, HEX, 3/8-16 X 10" GD 5, CZ
(Superseded to 5025667FS)

$7.49

$

In Stock, only 1 left!

0

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5107370

SPACER, .75 OD X 6.40 LONG, 10GA
(Superseded to 5107370FS)

$22.99

$

Usually ships in 2-12 days

0

12

Ferris 5107188

TRANSAXLE, ZT3100, RH, ZJ-LCRP-3A7C-19XX
(Superseded to 84006968)

Note: (S/N: 40015467047 and below)

$1138.99

$

Usually ships in 2-12 days

0

12

Ferris 5109245

TRANSAXLE, ZT-3100, RH,ZJ-LCRP-SA7C-19XX

Note: (S/N: 40015467048 and above)

$1203.99

$

Usually ships in 2-12 days

0

13

Ferris 5107186

TRANSAXLE, ZT3100, LH, ZJ-HCRP-3A7B-19XX
(Superseded to 84006969)

Note: (S/N: 40015467047 and below)

$1138.99

$

Usually ships in 2-12 days

0

13

Ferris 5109246

TRANSAXLE, ZT-3100, LH,ZJ-HCRP-SA7B-19XX
(Superseded to 84006969)

Note: (S/N: 40015467048 and above)

$1138.99

$

Usually ships in 2-12 days

0

14

Ferris 5025670

BOLT, HEX, 3/8-16 X 3", SER FLG GRD5, CZ

$

$

Currently unavailable

15

Ferris 5025666

NUT, 3/8-16, FLANGE, SERRATED UNDER HEAD
(Superseded to 5025666FS)

$2.99

$

Usually ships in 2-12 days

0

16

Ferris 5106813

BELT, A-SEC, 47.15, RAW EDGE
(Superseded to 5106813FS)

$32.99

$

Usually ships in 2-12 days

0

17

Ferris 5106923

SPRING, IDLER, #98
(Superseded to 5106923FS)

$10.99

$

In Stock, only 2 left!

0

18

Ferris 5025017X16

BOLT, 1/2-13 X 2" GD5 CZ
(Superseded to 5025017X16YP)

$4.49

$

In Stock, only 1 left!

0

19

Ferris 5107103

PULLEY IDLER 3.0 OD .506ID .75
(Superseded to 5107103FS)

$24.99

$

In Stock, Qty 13

0

20

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

21

Ferris 5107365AA

IDLER ARM - BLK
(Superseded to 5107365AAFS)

$30.99

$

Usually ships in 2-12 days

0

22

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

23

Ferris 5107348

WASHER, 0.54 X 1.50 X 0.060, CZ
(Superseded to 5107348FS)

$2.49

$

Usually ships in 2-12 days

0

24

Ferris 5106888

SPRING, EXTENSION, #29
(Superseded to 5106888FS)

$6.49

$

Usually ships in 2-12 days

0

25

Ferris 5108012

KEY RING, SPLIT 1"
(Superseded to 5108012FS)

$1.99

$

Usually ships in 2-12 days

0

26

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

27

Ferris 5106859

BOLT, 3/8-16 X 2-1/2, FLANGE, CZ
(Superseded to 5106859FS)

$3.99

$

Usually ships in 2-12 days

0
