FB 175250BS (7800939) - Snapper 25" Walk-Behind Mower, 17.5hp Handles & Controls Group Parts Diagram

25" Walk-Behind Mower, 17.5hp

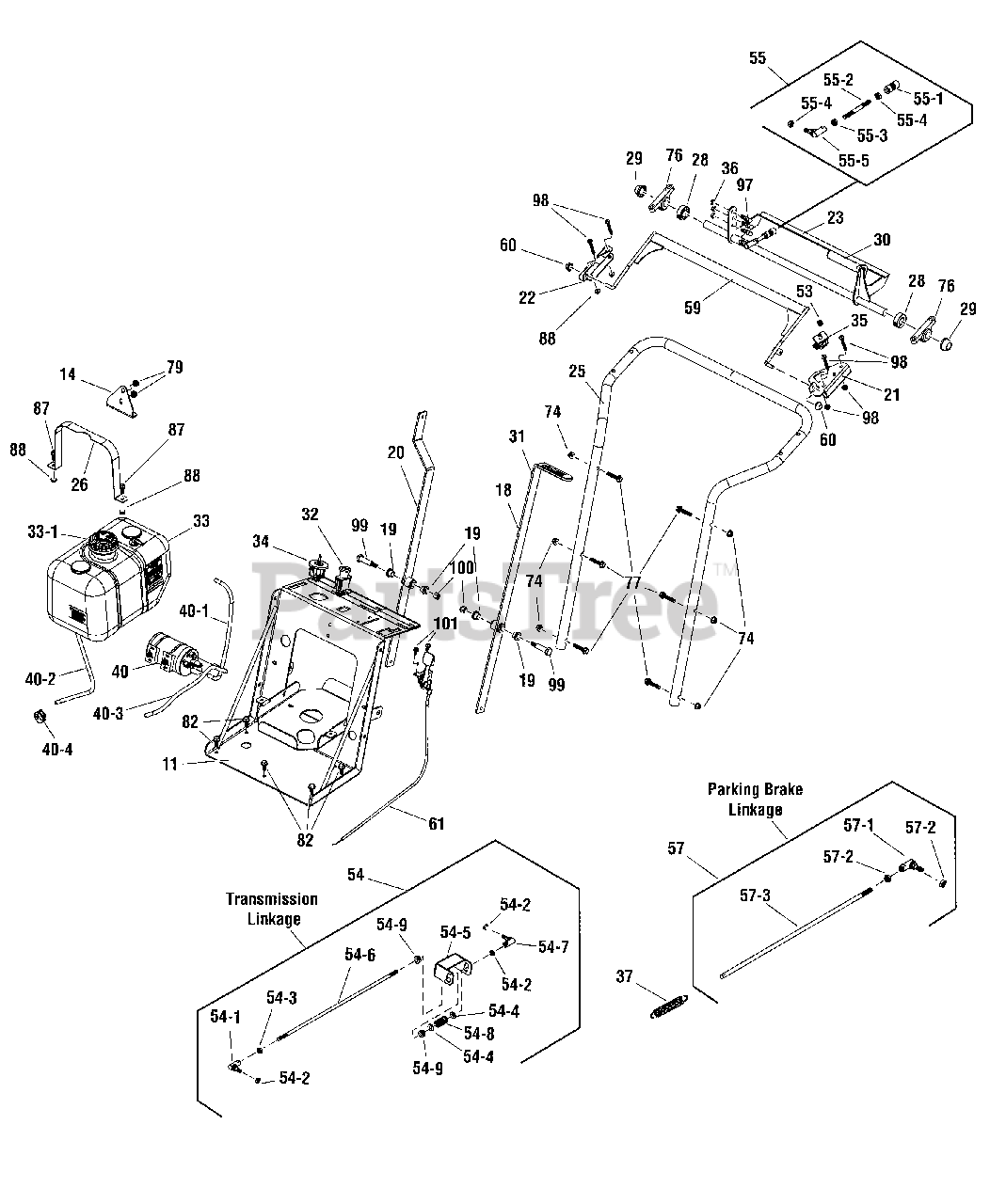

Handles & Controls Group Parts Diagram

  • Title

11

Snapper 705670

DASH BOARD

$933.99

$

Usually ships in 2-12 days

0

14

Snapper 706227

FUEL TANK CLAMP

$176.99

$

Usually ships in 2-12 days

0

18

Snapper 705678

BRAKE HANDLE

$467.99

$

Usually ships in 2-12 days

0

19

Snapper 706207

OILITE BUSHING

$87.99

$

Usually ships in 2-12 days

0

20

Snapper 705679

SPEED CONTROL ARM

$547.99

$

Usually ships in 2-12 days

0

21

Snapper 705680

BRACKET, LH

$136.99

$

Usually ships in 2-12 days

0

22

Snapper 705681

BRACKET, RH

$136.99

$

Usually ships in 2-12 days

0

23

Snapper 705682

SPEED CONTROL HANDLE

$1056.99

$

Usually ships in 2-12 days

0

25

Snapper 705684

HANDLE, OPERATOR WITH GRIPS

$598.99

$

Usually ships in 2-12 days

0

26

Snapper 705683

FUEL TANK HOLD-DOWN STRAP

$245.99

$

Usually ships in 2-12 days

0

28

Snapper 706454

SPLIT SHAFT COLLAR, 3/4"

$86.99

$

Usually ships in 2-12 days

0

29

Snapper 706224

PUSH CAP, 3/4"

$66.99

$

Usually ships in 2-12 days

0

30

Snapper 706203

GRIP, REVERSE LEVER

$59.99

$

Usually ships in 2-12 days

0

31

Snapper 706204

GRIP, PARKING BRAKE

$69.99

$

Usually ships in 2-12 days

0

32

Snapper 706244

PTO ENGAGEMENT SWITCH

$137.99

$

Usually ships in 2-12 days

0

33

Snapper 706241

FUEL TANK, 2.5 GAL

$740.99

$

Usually ships in 2-12 days

0

33-1

Snapper 706242

CAP, FUEL TANK

$131.99

$

Usually ships in 2-12 days

0

34

Snapper 706245

IGNITION SWITCH W/KEY

$125.99

$

Usually ships in 2-12 days

0

35

Snapper 706246

OPERATOR PRESENCE SWITCH
(Superseded to 5101280YP)

$30.99

$

In Stock, Qty 9

0

36

Snapper 706446

HEX NUT, 5/16"-24 RH

$20.99

$

Usually ships in 2-12 days

0

37

Snapper 706205

SPRING, PARKING BRAKE

$119.99

$

Usually ships in 2-12 days

0

40

Snapper 706243

EVAP CANISTER

$353.99

$

Usually ships in 2-12 days

0

40-1

Snapper 706467

VAPOR LINE, 1/4" ID

$100.99

$

Usually ships in 2-12 days

0

40-2

Snapper 706468

FUEL LINE, LOW-PERM, 1/4" ID

$112.99

$

Usually ships in 2-12 days

0

40-3

Snapper 706469

VAPOR LINE, 3/16" ID

$98.99

$

Usually ships in 2-12 days

0

40-4

Snapper 706470

SPRING ACTION HOSE CLAMP, 1/2"

$26.99

$

Usually ships in 2-12 days

0

53

Snapper 706223

RETURN SPRING, OPP. PRESENCE

$101.99

$

Usually ships in 2-12 days

0

54

Snapper 706814

TRANSMISSION LINKAGE

$1196.99

$

Usually ships in 2-12 days

0

54-1

Snapper 706214

BALL JOINT, 5/16"-24 LH THREAD

$75.99

$

Usually ships in 2-12 days

0

54-2

Snapper 706446

HEX NUT, 5/16"-24 RH

$20.99

$

Usually ships in 2-12 days

0

54-3

Snapper 706447

NUT, 5/16"-24 LH

$20.99

$

Usually ships in 2-12 days

0

54-4

Snapper 706453

FLAT WASHER, 5/16"

$25.99

$

Usually ships in 2-12 days

0

54-5

Snapper 706226

GUIDE BRACKET, SPEED CONTROL

$245.99

$

Usually ships in 2-12 days

0

54-6

Snapper 706220

FORWARD/REVERSE ROD

$148.99

$

Usually ships in 2-12 days

0

54-7

Snapper 706219

BALL JOINT, 5/16"-24 RH THREAD

$76.99

$

Usually ships in 2-12 days

0

54-8

Snapper 706222

SPRING

$61.99

$

Usually ships in 2-12 days

0

54-9

Snapper 706452

Split Shaft Collar, 5/16"

$119.99

$

Usually ships in 2-12 days

0

55

Snapper 706815

SPEED CONTROL LINKAGE

$683.99

$

Usually ships in 2-12 days

0

55-1

Snapper 706445

Ball Joint, Quick Link Socket, 5/16"-24 RH

$102.99

$

Usually ships in 2-12 days

0

55-2

Snapper 705657

SPEED CONTROL ROD, UPPER

$104.99

$

Usually ships in 2-12 days

0

55-3

Snapper 706447

NUT, 5/16"-24 LH

$20.99

$

Usually ships in 2-12 days

0

55-4

Snapper 706446

HEX NUT, 5/16"-24 RH

$20.99

$

Usually ships in 2-12 days

0

55-5

Snapper 706214

BALL JOINT, 5/16"-24 LH THREAD

$75.99

$

Usually ships in 2-12 days

0

57

Snapper 706817

PARKING BRAKE LINKAGE

$626.99

$

Usually ships in 2-12 days

0

57-1

Snapper 706219

BALL JOINT, 5/16"-24 RH THREAD

$76.99

$

Usually ships in 2-12 days

0

57-2

Snapper 706446

HEX NUT, 5/16"-24 RH

$20.99

$

Usually ships in 2-12 days

0

57-3

Snapper 705662

PARKING BRAKE ROD

$119.99

$

Usually ships in 2-12 days

0

59

Snapper 705688

OPERATOR PRESENCE BAR

$598.99

$

Usually ships in 2-12 days

0

60

Snapper 706370

PUSH CAP, 5/16" DIA.

$62.99

$

Usually ships in 2-12 days

0

61

Snapper 706202

THROTTLE CABLE

$119.99

$

Usually ships in 2-12 days

0

74

Snapper 706794

NUT, 5/16"-18 HEX FLANGED NYLOK

$23.99

$

Usually ships in 2-12 days

0

76

Snapper 706239

BEARING, SPEED CONTROL

$131.99

$

Usually ships in 2-12 days

0

77

Snapper 706797

5/16"-18 X 1-1/2" BOLT

$20.99

$

Usually ships in 2-12 days

0

79

Snapper 706795

5/16"-18 HEX NUT, SERRATED

$23.99

$

Usually ships in 2-12 days

0

82

Snapper 706796

BOLT, 5/16"-18 X 3/4"

$23.99

$

Usually ships in 2-12 days

0

87

1/4"-20 x 3/4" SERRATED HEX BOLT

$

$

Not available

88

Snapper 703916

1/4"-20 NUT

$4.99

$

In Stock, only 2 left!

0

97

Snapper 706445

QUICK-LINK STUD, 5/16"-24 RH

$102.99

$

Usually ships in 2-12 days

0

98

Snapper 706805

SCREW, 1/4"-20 x 2"

$33.99

$

Usually ships in 2-12 days

0

99

Snapper 706371

BOLT, 1/2" x 1-1/2"

$58.99

$

Usually ships in 2-12 days

0

100

Snapper 706792

NUT, LOCK, 3/8"-16

$23.99

$

Usually ships in 2-12 days

0

101

Snapper 706811

BOLT, 1/4"-10 X 1/2" SERRATED HEX HEAD

$20.99

$

Usually ships in 2-12 days

0
