FB 1000CE - Ferris Hurricane Series Ride-On Blower Instrument Control Panel Group Parts Diagram

Hurricane Series Ride-On Blower

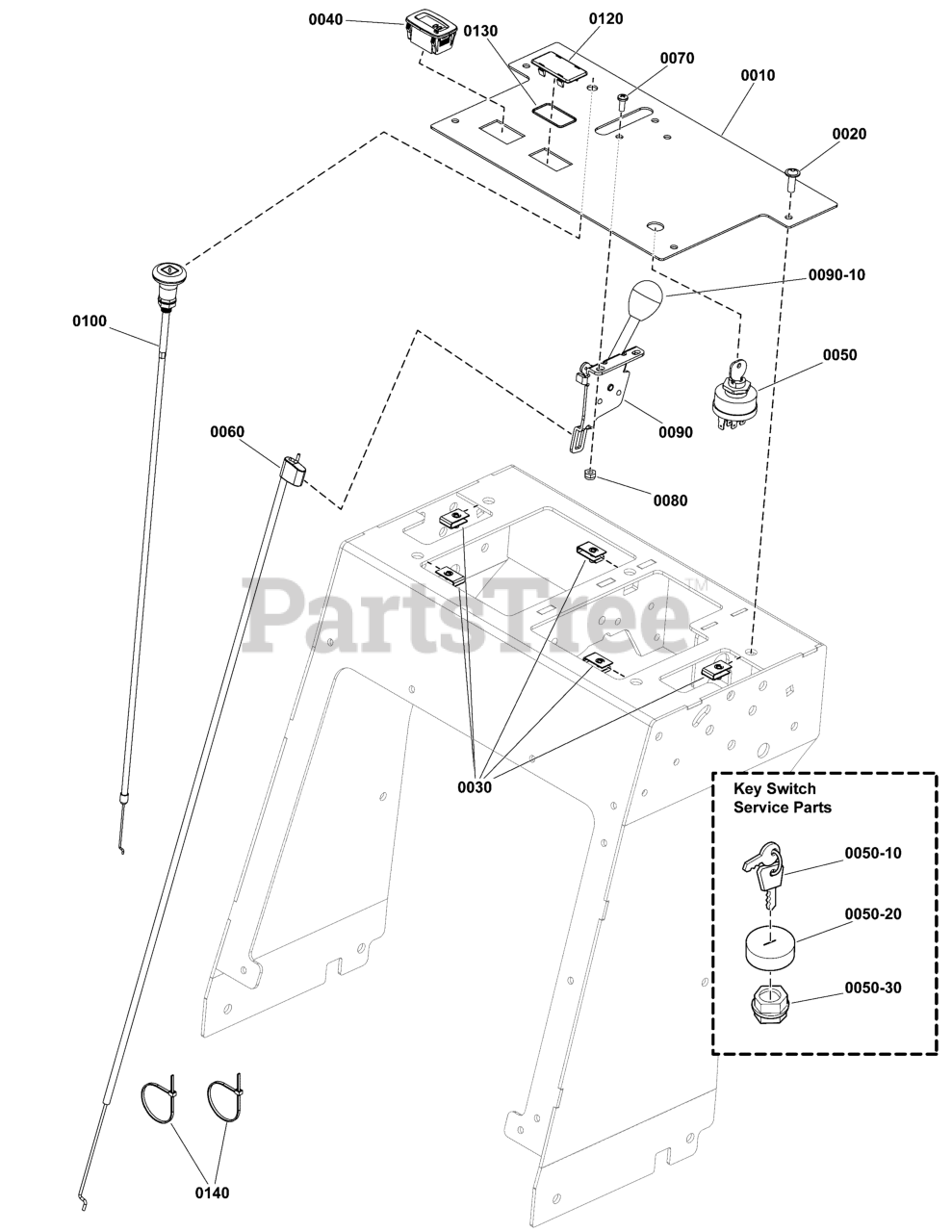

Instrument Control Panel Group Parts Diagram

  • Title

0010

Ferris 5601333

DASH PANEL W/ DECALS, FB1000 CE

Note: (Includes decals).

$

$

Currently unavailable

0020

Ferris 5106757

SCREW, FLANGE, ALLEN HD, 1/4-20 X .75 SS
(Superseded to 84003668)

$3.49

$

Usually ships in 2-12 days

0

0030

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

0040

Ferris 5106789

HOUR, METER & TECH
(Superseded to 5106789FS)

$54.99

$

In Stock, only 2 left!

0

0050

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$34.99

$

In Stock, Qty 14

0

0050-10

Ferris 5022789

KEY, IGNITION MOLDED SET

Note: (SV)

$

$

Currently unavailable

0050-20

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (SV)

$4.99

$

In Stock, Qty 6

0

0050-30

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (SV)

$3.49

$

In Stock, only 1 left!

0

0060

Ferris 5109627

CABLE, THROTTLE, 27.75
(Superseded to 5109627FS)

$22.99

$

Usually ships in 2-12 days

0

0070

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

0080

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

0090

Ferris 5101995

LEVER, HEAVY DUTY, THROTTLE CONTROL
(Superseded to 5101995YP)

$45.99

$

In Stock, only 2 left!

0

0090-10

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$11.99

$

In Stock, only 2 left!

0

0100

Ferris 5109628

CABLE, CHOKE CONTROL, 21.75
(Superseded to 5109628FS)

$17.99

$

Usually ships in 2-12 days

0

0120

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$5.49

$

In Stock, Qty 6

0

0130

Ferris 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

0140

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 2 left!

0
