FB 1000 - Ferris Hurricane Series Ride-On Blower Fuel Tank and Mount Group Parts Diagram

Hurricane Series Ride-On Blower

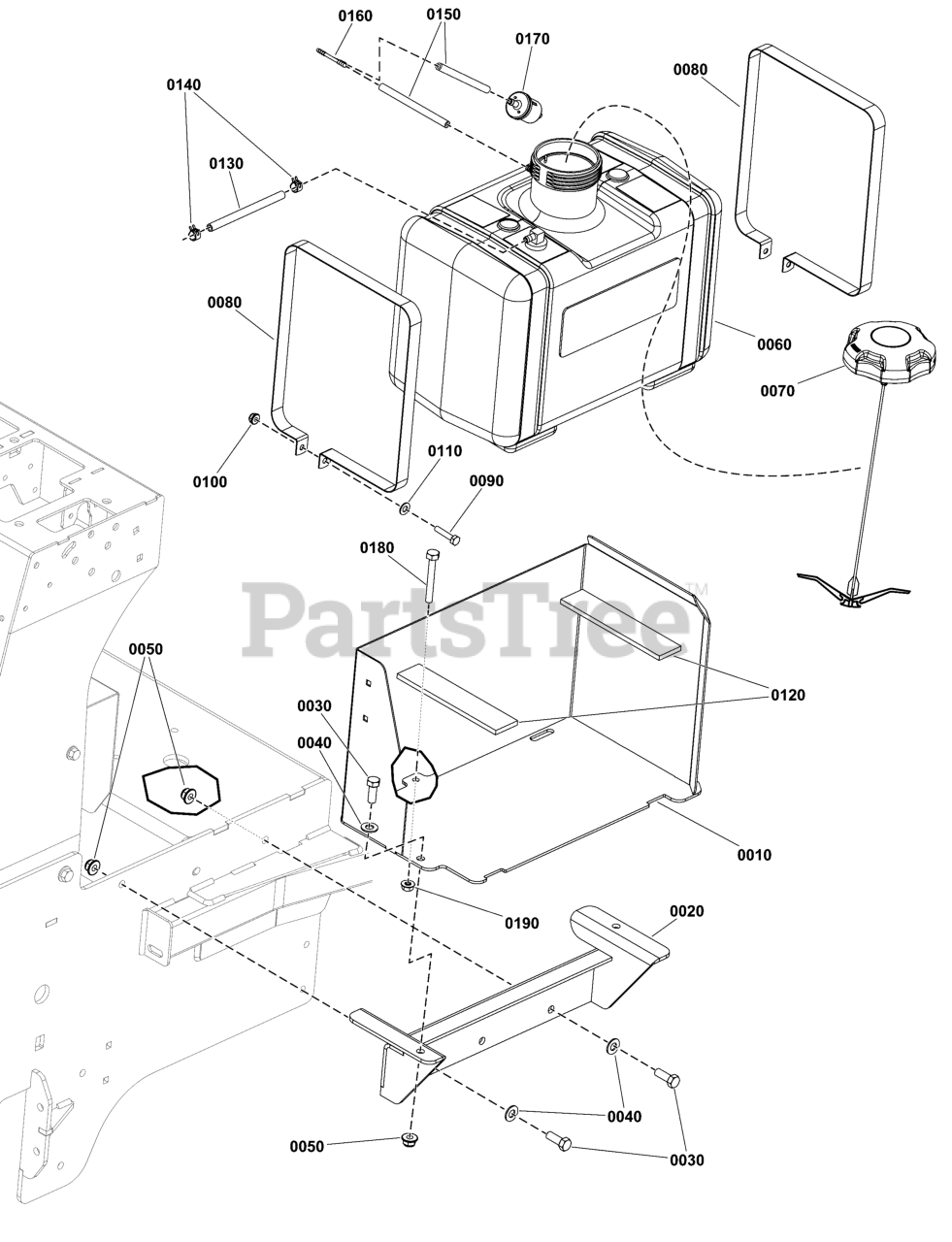

Fuel Tank and Mount Group Parts Diagram

  • Title
0010

Ferris 5420585A

WELD, TANK MOUNT, FB1000 - BLK
(Superseded to 5420585AFS)

$131.99

$

Usually ships in 2-12 days

0

0020

Ferris 5421231A

WELD, FUEL TANK MOUNT,LOWER, FB1000-BLK

$

$

Currently unavailable

0030

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

0040

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0050

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0060

Ferris 5102833

TANK, 4.625 GAL, W DROP TUBE/VENT
(Superseded to 5102833YP)

$397.99

$

Usually ships in 2-12 days

0

0060-10

Ferris 5102833X1

GROMMET

Note: (Grommet for fuel tank 5102833)

$10.99

$

Usually ships in 2-12 days

0

0070

Ferris 5108752

FUEL CAP, 3.5", MANAGED VENT OUT, 12" RT
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

0080

Ferris 5403445AA

STRAP, FUEL TANK - SNP PRO DDS - BLK
(Superseded to 5403445AYP)

$22.99

$

Usually ships in 2-12 days

0

0090

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2 GD5 CZ
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

0100

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0110

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0120

Ferris 5100810

PAD, RUBBER MOUNT
(Superseded to 5100810YP)

$8.99

$

Usually ships in 2-12 days

0

0130

Ferris 5050831X5

1/4" Fuel Line, 5" Long
(Superseded to 5050831X5SM)

$5.49

$

Usually ships in 2-12 days

0

0140

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

0150

Ferris 7700552X4P5

HOSE, VAPOR, 5MM ID, 4.50 LG
(Superseded to 7700552X4P5YP)

$2.99

$

Usually ships in 2-12 days

0

0160

Ferris 5103062

FITTING, 3/16" TEE, BARB TYPE, HDPE
(Superseded to 5103062YP)

$10.99

$

In Stock, only 2 left!

0

0170

Ferris 80025019

FILTER, FUEL
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

0180

Ferris 5025055X20

BOLT, 5/16-18 X 2-1/2 GD5 TFL, CZ
(Superseded to 5025055X20FS)

$7.49

$

Usually ships in 2-12 days

0

0190

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0
