FB 1000 - Ferris Hurricane Series Ride-On Blower Blower Group Parts Diagram

Hurricane Series Ride-On Blower

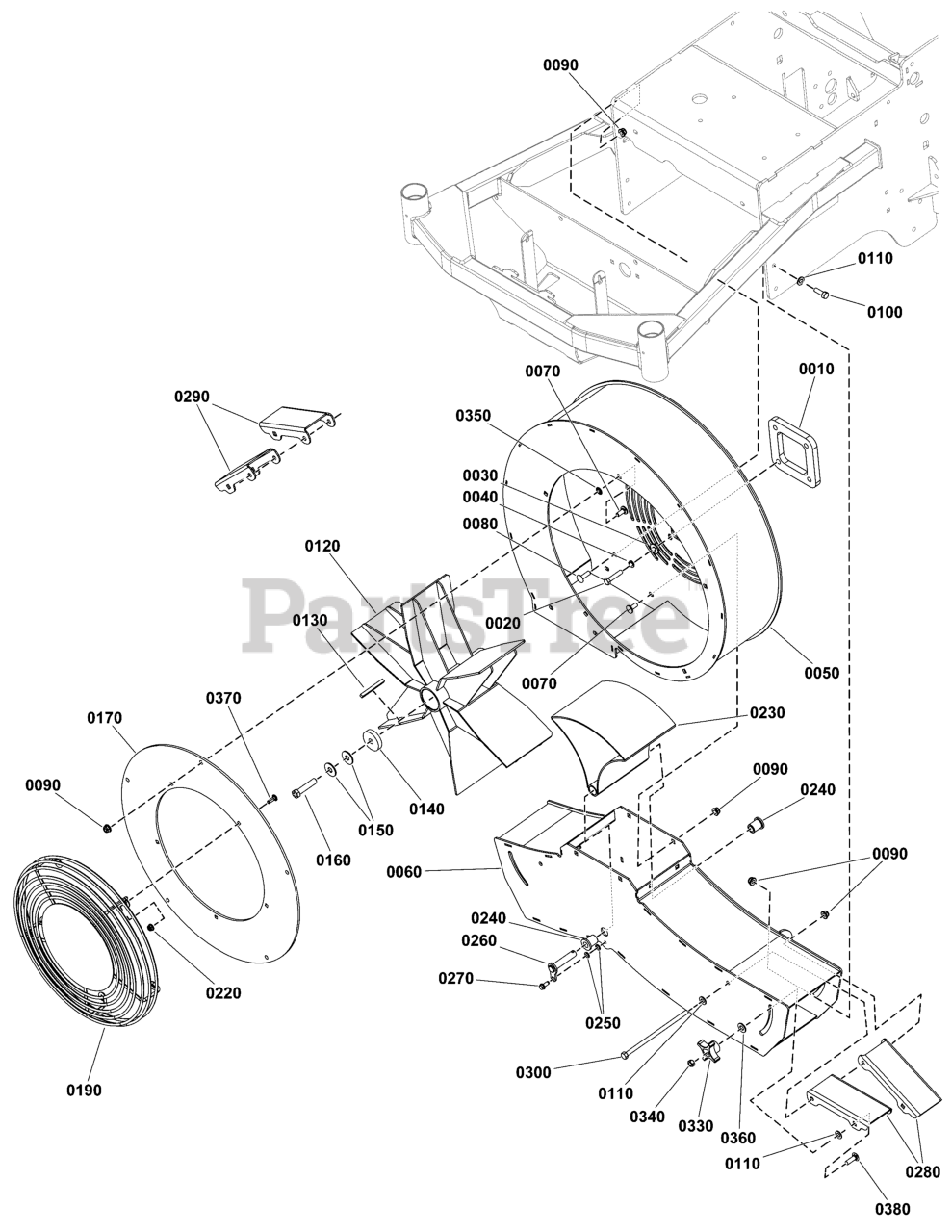

Blower Group Parts Diagram

  • Title

0010

Ferris 5420587AA

SPACER, MOTOR PLATE, FB1000 - BLK
(Superseded to 5420587AAFS)

$43.99

$

Usually ships in 2-12 days

0

0020

Ferris 5025025X12

BOLT, 5/16-24 X 1-1/2, GD8, PHOS
(Superseded to 5025025X12YP)

$3.99

$

Usually ships in 2-12 days

0

0030

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

0040

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

0050

Ferris 5420485AI

WELD, TOP, BLWR HSG, FB1000 - RED
(Superseded to 5420485AIFS)

$652.99

$

Usually ships in 2-12 days

0

0060

Ferris 5420480AI

WELD, BOTTOM, BLWR HSG, FB1000 - RED
(Superseded to 5420480AIFS)

$468.99

$

Usually ships in 2-12 days

0

0070

RHSSNB,5/16-18 X 3/4 GR5 ZINC/CLEAR

$

$

Not available

0080

Ferris 80004565

BOLT,5/16-18X1.000,SHORT NECK CRRG,ZC/CL
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0090

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0110

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0120

Ferris 5420582

WELD, IMPELLER, FB1000
(Superseded to 5420582FS)

$800.99

$

Usually ships in 2-12 days

0

0130

Ferris 5050407X20

KEY, 1/4 SQ X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

0140

Ferris 5106924

WASHER, IMPLR, 1-3/4OD X 7/16ID
(Superseded to 5106924FS)

$11.99

$

Usually ships in 2-12 days

0

0150

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

0160

Ferris 5102862

BOLT, CRANKSHAFT, 7/16"X2
(Superseded to 5102862FS)

$4.49

$

Usually ships in 2-12 days

0

0170

Ferris 5420490A

PLATE,FRONT COVER, BLWR, FB1000 - BLK

$

$

Currently unavailable

0190

Ferris 440171A

GRILL WIRE FORCE - BLACK
(Superseded to 440171AFS)

$268.99

$

Usually ships in 2-12 days

0

0220

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0230

Ferris 5420534AA

WELD, DEFLECTOR, FB1000 - BLK
(Superseded to 5420534AAFS)

$125.99

$

Usually ships in 2-12 days

0

0240

Ferris 5106943

BUSHING, 1/2 X 3/4 X 1F
(Superseded to 5106943FS)

$4.49

$

In Stock, only 2 left!

0

0250

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 4 left!

0

0260

Ferris 5107337

WELD, FORWARD DEFLECTOR PIN, CZ
(Superseded to 5107337FS)

$14.99

$

Usually ships in 2-12 days

0

0270

Ferris 80004190

SCREW, Hex Washer Head, Thread Roll, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0280

Ferris 5420595AA

PLATE,LEFT DEFLECTOR, FB1000 - BLK
(Superseded to 5420595AAFS)

$13.99

$

Usually ships in 2-12 days

0

0290

Ferris 5421429AA

PLATE,RIGHT DEFLECTOR, FB1000 - BLK
(Superseded to 5421429AAFS)

$11.99

$

Usually ships in 2-12 days

0

0300

Ferris 5025011X56

BOLT, 5/16-18 x 7

$

$

Not available

0330

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

In Stock, only 1 left!

0

0340

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

0350

RETAINER,5/16X0.625,PUSHNUT,ZINC/CLEAR

$

$

Not available

0360

Ferris 5025698

WASHER, 5/16 NYLON, BLK

$

$

Currently unavailable

0370

SCREW-TRUSS HD TORX DR 1/4-20X0.750 ZC/C

$

$

Not available

0380

Ferris 80004446

BOLT,5/16-18X1 1/4,GR5,CRRG,ZINC/CLEAR
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0
