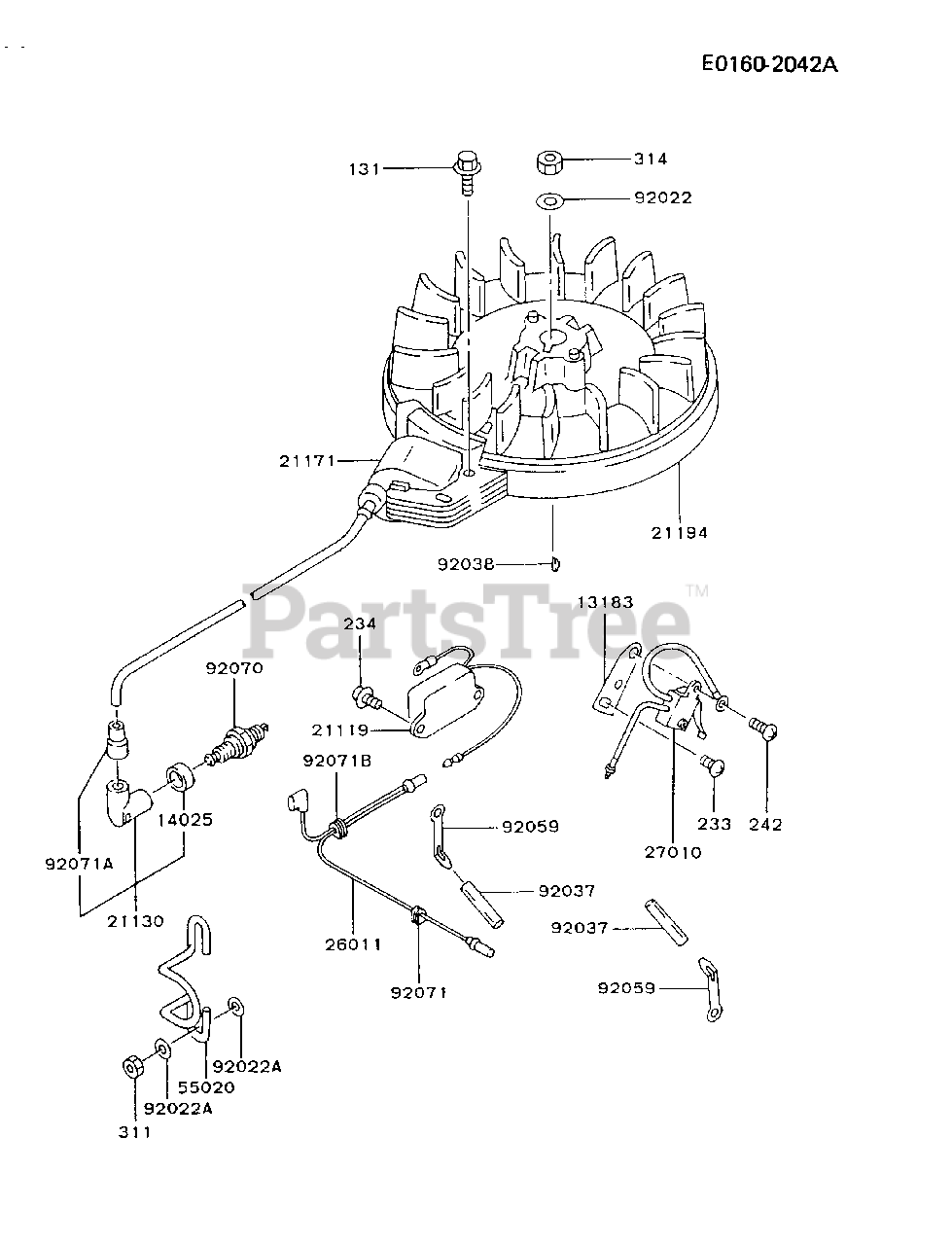

FA210V-AS03 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
13183

$

$

Not available

14025

Kawasaki 14025-2015

COVER
(Superseded to 311901-8413A)

$

$

Not available

21119

Kawasaki 21119-2091

IGNITER
(Superseded to 3144AA-8465A)

$

$

Not available

21130

Kawasaki 21130-2004

CAP-SPARK PLUG
(Superseded to 314493-8412A)

$16.99

$

Usually ships in 2-5 days

0

21171

Kawasaki 21171-2112

COIL-ASSY-IGNITION
(Superseded to 21171-2167)

$

$

Not available

21194

Kawasaki 21194-2159

FLYWHEEL-COMP

$

$

Not available

26011

$

$

Not available

27010

$

$

Not available

55020

$

$

Not available

92022

$13.99

$

Usually ships in 2-5 days

0

92022A

$0.99

$

In Stock, only 4 left!

0

92037

$

$

Not available

$2.99

$

In Stock, Qty 14

0

92059

Kawasaki 92059-2156

TUBE,5X6X35

$0.99

$

In Stock, only 4 left!

0

92070

Kawasaki 92070-2060

PLUG-SPARK,BMR6A
(Superseded to BMR6A)

Note: NGK

$3.49

$

In Stock, Qty 5

0

92071

$

$

Not available

92071A

$1.49

$

Usually ships in 2-5 days

0

92071B

$1.99

$

In Stock, only 4 left!

0

131

Kawasaki 131B0520

BOLT-FLANGED

$1.99

$

Usually ships in 2-5 days

0

233

Kawasaki 233B0408

SCREW-PAN-WP+-
(Superseded to 233AA0408)

$

$

Not available

234

Kawasaki 234B0514

SCREW-PAN-WSP+-
(Superseded to 234AA0514)

$0.99

$

Usually ships in 2-5 days

0

242

Kawasaki 242B0416

SCREW-PAN-WSP+-
(Superseded to 242AA0416)

$

$

Not available

311

Kawasaki 311B0800

NUT-HEX
(Superseded to 317AA0800)

$0.99

$

In Stock, Qty 19

0

314

Kawasaki 314G1400

NUT-HEX-FINE
(Superseded to 314G1400A)

$1.49

$

In Stock, Qty 7

0
